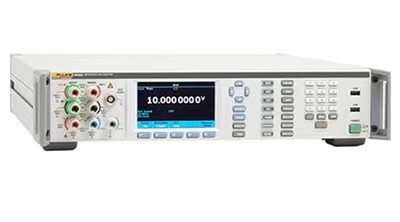

ISO 17025 Fluke 8588A Reference Multimeter 8.5 Digits With General Purpose Probe Kit
ISO 17025 Fluke 8588A Reference Multimeter 8.5 Digits With General Purpose Probe Kit
ISO 17025 Fluke 8588A Reference Multimeter 8.5 Digits With General Purpose Probe Kit
ISO 17025 Fluke 8588A Reference Multimeter 8.5 Digits With General Purpose Probe Kit
ISO 17025 Fluke 8588A Reference Multimeter 8.5 Digits With General Purpose Probe Kit
ISO 17025 Fluke 8588A Reference Multimeter 8.5 Digits With General Purpose Probe Kit
Specifications
Brand Name :
Fluke
Model Number :
8588A
Certification :
ISO:17025 Accredited Calibration
Place of Origin :
USA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Product name :
Digit Reference Multimeter
Digit Resolution :
8.5
Condition :
Pre-Owned
Functions :
Tested, in Full Working Conditions
Description

Fluke 8588A Reference Multimeter 8.5 Digits an improved alternative for 8508A

Description of Fluke 8588A

The 8558A 8.5 digit multimeter offers 5 mega-samples-per-second high resolution digitizing for system automation in labs and manufacturing test environments. Fluke’s new high-speed system design and the industry’s fastest direct digitizing capability enable significant throughput increases for many automated system applications that require a combination of highest speed and best accuracy. The superb accuracy is delivered over a wide measurement range, over nine functions, with an intuitive user interface on a color display.

The 8558A shares the same platform as the fully loaded 8588A Reference Multimeter. The platform features a common intuitive user interface with easy-to-navigate menu structure for all configuration and matching SCPI-compliant commands for automated environment. The 8588A platform guarantees a minimum of 100,000 readings per second at 4.5 digits across GPIB, USBTMC or Ethernet, and an onboard data memory that can hold up to 15 million readings.

Accurate data, delivered amazingly fast

Shorter test time on the 8588A/8558A high-speed digital platform enables you to increase throughput, improve yield and realize a greater return on your investment. The 8588A/8558A digitizes to memory at 200 nanoseconds per reading and delivers 4.5 digit data to a PC via USB, Ethernet and GPIB at 100,000 readings per second. Fast, high resolution data capture gives you the quantity and quality of information you need to make timely, correct decisions affecting system throughput and efficiency.

  • 0 ns to 100 s aperture setting allows industry’s widest flexibility to control data capture window
  • Reading speed: 1 reading /s @ 8.5 digits to 100,000 reading /s @ 4.5 digits
  • Data transfer from memory to PC: up to 500,000 readings /s in binary format through USB, up to 200,000 through Ethernet and GPIB
Model Name Description
8558A

8.5 Digit Multimeter

Includes:

  • Meter
  • 8588A-LEAD KIT-OSP General purpose probe kit & pouch with 2x 4-way shorting PCB
8588A

Reference Multimeter

Includes:

  • Meter
  • 8588A-LEAD KIT-OSP General purpose probe kit & pouch with 2x 4-way shorting PCB

Accessories common to all models:

Accessory Description
Y8588 Rack Mount Kit (2U – 3.5 in)
Y8588S Slide Rack Mount Kit
8588A-LEAD

Comprehensive Measurement Lead Kit
Includes:

  • 1x 8588A-LEAD KIT-OSP
  • 1x 1 m screen 322/0.1 copper (30 Amp Rating) with 6 mm gold plated copper spade terminals
  • 4X 8588A-LEAD/THERMAL
  • 2x locking adapter 4 mm binding post to safety
8588A-SHORT 4-Way Shorting PCB
8588A-LEAD/THERMAL Low Thermal Lead Kit
8588A-7000K Cal Kit with 1 Gohm Standard and Connecting Leads
96000SNS Additional Power Sensor
8588A/CASE Transit Case

8558A key features and performance

DC voltage
  • 100 mV to 1000 V, (1050V max)
  • 2.02x full scale
  • Maximum resolution: 1 nV
  • 4.0 μV/V (95 %) 5.7 μV/V (99 %), 1 year
  • 0.5 μV/V (95 %) 0.65 μV/V (99 %), 24 hour stability
  • 0 to 10 s reading aperture (200 ns resolution)
DC current
  • 10 uA to 2 A (8558A)
  • 2.02x full scale
  • Maximum resolution: 1 pA
  • 9 μA/A (95 %), 12 μA/V (99 %), 1 year
  • 0 ns to 100 s reading aperture
AC voltage
  • 10 mV to 1000 V, 1 Hz to 10 MHz, (1050 Vrms max)
  • 2.02x full scale Vpp, 1.2x full scale Vrms
  • Maximum resolution: 1 nV
  • 80 μV/V (95 %), 103 μV/V (99 %), 1 year
AC current
  • 10 uA to 30 A (8588A only; 2 A for 8558A)
  • 2.02x full scale Vpp, 1 Hz to 100 kHz 1.2x full scale Vrms
  • Maximum resolution: 1 pA
  • 300 μA/A (95 %), 387 μA/V (99 %), 1 year
Resistance
  • 1Ω to 10 GΩ (20 GΩ max)
  • 2.02x full scale
  • Maximum resolution: 10 nΩ
  • 10 μΩ/Ω (95 %), 13 μΩ/Ω (99 %), 1 year
  • Low current mode, high voltage mode and current-reversal Tru Ohms™
Digitize V
  • 100 mV to 1000 V, (1050 V max)
  • 2.02x full scale
  • Maximum resolution: 18 bits
  • 5 mega-samples per second sample rate
  • Up to 20 MHz bandwidth
Digitize I
  • 10 μA to 30 A (8588A only; 2 A for 8558A)
  • 2.02x full scale
  • Maximum resolution: 18 bits
  • 5 mega-samples per second sample rate
  • Up to 4 MHz bandwidth
Frequency or period
  • Voltage, up to 10 MHz
  • Current, up to 100 kHz
  • Frequency up to 100 MHz on BNC
  • 0.5 μHz/Hz, 1 year
Capacitance
  • 1 nF to 100 mF
  • 400 μF/F, 1 year
Temperature
  • PRT and thermocouple
  • 5 mK PRT, 25 mK TC - 1 year
RF power
  • Rhode & Schwarz NRP series DC I and AC I external shunt

DC I and AC I external shunt

  • A40B and any other external shunt
Reading speed
  • 1 reading /s @ 8.5 digit into memory
  • 100,000 readings /s @ 4.5 digit into memory
  • Up to 5,000,000 (5 MS/s) readings /s into volatile memory in digitize V and I
  • Up to 500,000 readings/s transfer through USB in binary format
Measurement memory
  • 15 million readings volitile
  • 7.5 million readings with volitile time stamp
  • 16 GB non-volitile
GPIB, USBTMC, Ethernet
  • Native SCPI compliant remote commands
  • 8508A and 3458A emulation mode
  • Fully support MET/CAL™ calibration procedures library in Fluke 8508A emulation
  • IVI driver
  • USB thumb drive for convenient data transfer in .csv format
Trigger mechanisms
  • Manual trigger
  • External BNC Trig In and Trig Out
  • Internal or level trigger
  • Timer trigger
  • Epoch trigger
  • Line trigger
  • BUS trigger
FAQ:

1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
