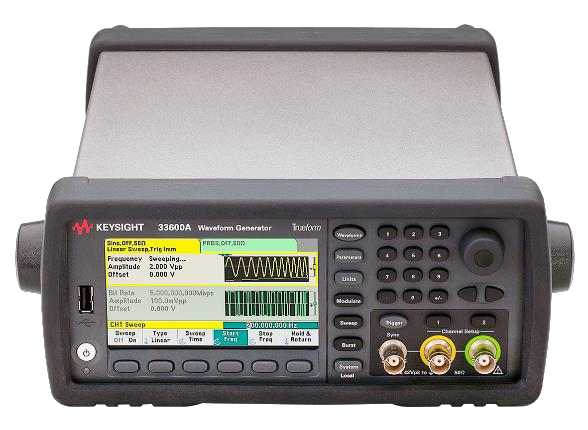

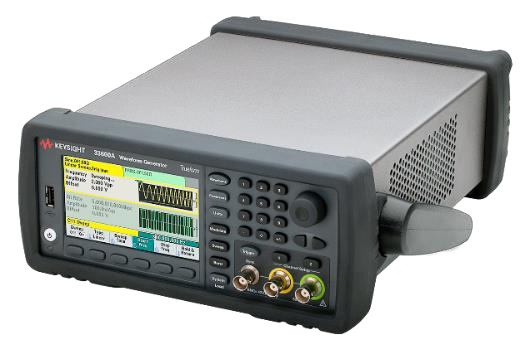

Keysight 33622A Waveform Generator, 120 MHz, 2 Channel Output level nom 0 to 3.0 V into high impedance
Keysight 33622A Waveform Generator, 120 MHz, 2 Channel Output level nom 0 to 3.0 V into high impedance
Keysight 33622A Waveform Generator, 120 MHz, 2 Channel Output level nom 0 to 3.0 V into high impedance
Keysight 33622A Waveform Generator, 120 MHz, 2 Channel Output level nom 0 to 3.0 V into high impedance
Keysight 33622A Waveform Generator, 120 MHz, 2 Channel Output level nom 0 to 3.0 V into high impedance
Keysight 33622A Waveform Generator, 120 MHz, 2 Channel Output level nom 0 to 3.0 V into high impedance
Keysight 33622A Waveform Generator, 120 MHz, 2 Channel Output level nom 0 to 3.0 V into high impedance
Keysight 33622A Waveform Generator, 120 MHz, 2 Channel Output level nom 0 to 3.0 V into high impedance
Keysight 33622A Waveform Generator, 120 MHz, 2 Channel Output level nom 0 to 3.0 V into high impedance
Keysight 33622A Waveform Generator, 120 MHz, 2 Channel Output level nom 0 to 3.0 V into high impedance
Keysight 33622A Waveform Generator, 120 MHz, 2 Channel Output level nom 0 to 3.0 V into high impedance
Keysight 33622A Waveform Generator, 120 MHz, 2 Channel Output level nom 0 to 3.0 V into high impedance
Specifications
Brand Name :
Keysight
Model Number :
33622A
Certification :
ISO17025
Place of Origin :
U.S.A
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T，Western Union
Supply Ability :
In Stock
Delivery Time :
1~3 Working Days
Packaging Details :
Carton
Brand :
Keysight
Moudle Name :
33622A
Weight (nom) :
3.5 kg (7.7 lbs.)
Number of channels :
2
Output impedance (nom) :
50 Ω
User-defined arbitrary :
Up to 4 MSa
Maximum frequency :
120 MHz
Output level (nom) :
0 to +1.5 V into 50 Ω ; 0 to +3.0 V into high impedance
Description

Highlights of Keysight 33622A Waveform Generator

Generate Trueform arbitrary waveforms with less jitter, more fidelity and greater resolution

Exclusive Trueform technology

  • Unmatched capabilities for generating a full range of signals for your most demanding measurements
  • Sine waves with 5x lower harmonic distortion for more pure signals
  • Pulses up to 100 MHz with < 1 ps jitter for more precise timing
  • Trueform arbitrary waveforms with sequencing for more accurate representation of user-defined signals

Instrument features

  • 1 GSa/s sampling rate for higher time resolution arbitrary waveforms
  • 14-bit resolution with 1 mVpp to 10 Vpp amplitude for greater amplitude accuracy
  • 4 MSa/channel standard waveform memory, optional 64 MSa/channel for your longest waveforms
  • USB, LAN (LXI-Core), GPIB optional for quick and easy connectivity to PC or network

Waveform creation and editing

  • Create a waveform from the front panel using the built-in editor
  • Capture a waveform from an oscilloscope and download it to the generator
  • Create a waveform in MATLAB or Microsoft Excel and download it to the generator
  • Download BenchVue Basic app for free to control your instruments

Keysight 33600A Series waveform generators with exclusive Trueform signal generation technology offer more capability, fidelity, and flexibility than previous generation DDS generators. Easily generate the full range of signals you need with confidence that the signal generator is outputting the signals you expect.

The 33622A can be easily upgraded as your needs change.

Features of Keysight 33622A Waveform Generator
The 33500B and 33600A Series Trueform Function / Arbitrary waveform generators offer a variety of capabilities you can’t find anywhere else-capabilities designed to help you accelerate your testing and get your project completed faster.
Features Descriptions
Ease of Use
Large, color, graphical display offers simultaneous parameter setup, signal viewing, and editing along with a help system. Most standard waveforms and
modulation are built-in including signal summing.
Signal Integrity
Trueform offers precise, low noise signals with the lowest jitter and harmonic distortion in its class. Create full bandwidth sine and square waves with
Trueform generators.
Trueform Arbs
Trueform arbs ensure every waveform point is accurately represented, with up to 64 MSamples per channel. Segment waveforms to simplify waveform
creation and save memory, connect up to 512 segments.
Pulse Generator
Create a single pulse, a burst of pulses, or a steady pulse train with high bandwidth, up to 100 MHz. Set leading and trailing edge times independently
down to 2.9 ns.
2-Channel Coupling
Quickly synchronize the independent outputs to share the same frequency,
amplitude or both. The phase between the channels is also adjustable.
Connectivity
Use LAN, GPIB, USB, and USB thumb drive to automate testing or download waveforms. BenchVue Function Generator Control and Automation app simplifies the creation of waveforms and control of multiple instruments.
Upgradeability
Protect your investment. Configure your instrument, for now, and easily upgrade later.

Options of Keysight 33622A Waveform Generator

33622A-OCX Add high-stability OCXO timebase
33622A-MEM Add 64 M samples memory per channel
33622A-GPB GPIB interface module for 33600A Trueform Series Waveform Generators- installed
33622A-SEC Enable NISPOM and file security
33622A-Z54 ANSI/NCSL Z540.3-2006 Calibration

FAQ:


1. Can you ship the order to Canada or Australia?
Yes, we can. We send orders worldwide.


2. What delivery method do you use ? and delivery time?
We can ship by EMS, DHL, FedEx, UPS, and TNT with tracking numbers. The usual delivery time is 4-7 workdays.


3. What is your payment term?
100% T/T payment before shipment.


4. How can I ask any other question?
You can contact us online or leave us messages below.
