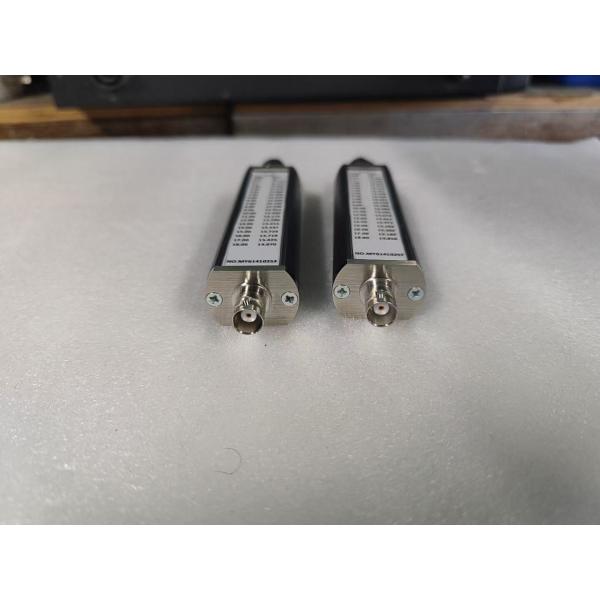

Keysight Agilent 346B Noise Source 10 MHz to 18 GHz nominal ENR 15 dB
Keysight Agilent 346B Noise Source 10 MHz to 18 GHz nominal ENR 15 dB
Keysight Agilent 346B Noise Source 10 MHz to 18 GHz nominal ENR 15 dB
Keysight Agilent 346B Noise Source 10 MHz to 18 GHz nominal ENR 15 dB
Keysight Agilent 346B Noise Source 10 MHz to 18 GHz nominal ENR 15 dB
Keysight Agilent 346B Noise Source 10 MHz to 18 GHz nominal ENR 15 dB
Specifications
Brand Name :
Keysight/Agilent
Model Number :
346B
Place of Origin :
Malaysia
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Product name :
Noise Source
Frequency :
10 MHz to 18 GHz
ENR Range :
14 to 16 dB
Excess Noise Ratio (ENR) :
14-16 dB
Functions :
Tested, in Full Working Conditions
Temperature Compensation :
No
Description

Keysight Agilent 346B Noise Source 10 MHz to 18 GHz nominal ENR 15 dB

Description of Keysight Agilent 346B Noise Source 10 MHz to 18 GHz nominal ENR 15 dB

The Keysight 346B noise source is the ideal companion to Keysight's noise figure solutions. Since it is broadband (10 MHz to 18 GHz), it eliminates the necessity for several sources at different frequency bands. The low SWR of the noise source reduces a major source of measurement uncertainty, which are reflections of the test signals. Add special option H01 for high ENR (21 dB typical) to measure high noise figure devices, or option H42 for measuring Direct Broadcast Satellite (DBS) low noise block converters.

  • Frequency range: 10 MHz to 18 GHz
  • VSWR: < 1.3:1
  • Connectors: BNC (f) input bias / 3.5 mm (m)
  • Low SWR for reducing noise figure measurement uncertainty
  • Individually calibrated ENR values at specific frequencies

Specification of Keysight Agilent 346B

ENR Range:

14 to 16 dB

ENR Automatic Download:

No

Excess Noise Ratio (ENR):

14-16 dB

Frequency Range:

10 MHz to 18 GHz

Maximum Frequency:

18 GHz

Minimum Frequency:

10 MHz

Minimum Frequency Range:

10 MHz

Temperature Compensation:

No

Type:

Noise Source

Works with:

NFA, ESA-E Series, PNA-X, PSA-Series, X-Series (PXA, MXA, EXA, CXA)

List of Options OF 346B

001 Type N (male) connector
002 APC-7 Connector
004 Type N (female) connector
100 3.5 mm (M) Connector
1BN Military Standard 45662A Calibration Certification
910 Additional operating and service manual
H01 APC 3.5(m) connector with 21 dB nominal ENR
H10 NPL calibrated transfer standard
H13 LAB STD CAL
H42 DBS waveguide adapter and nominal ENR 5 dB
H71 Type N (male) connector with 21 dB nominal ENR
H72 APC-7 connector with 21 dB nominal ENR
H73 Type N (female) connector with 21 dB nominal ENR
R-50C-011-3 Agilent Calibration - 3 years
R-50C-011-5 Agilent Calibration - 5 years
R-50C-016-3 ISO 17025 Compliant Calibration - 3 years
R-50C-016-5 ISO 17025 Compliant Calibration - 5 years
R-50C-021-3 ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5 ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-3C Return to Agilent Warranty - 3 years
R-51B-001-5C Return to Agilent Warranty - 5 years
R-51B-001-C Return to Agilent Warranty - 1 year
RMKT Agilent Refurbished Product (Do Not Use - Certiprime Option)

FAQ:

1.Can you ship order to Canada or Australia?
Yes,we can .We send orders worldwide.

2. What delivery method do you use? and delivery time?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question?

You can contact us online or leave us messages below.
