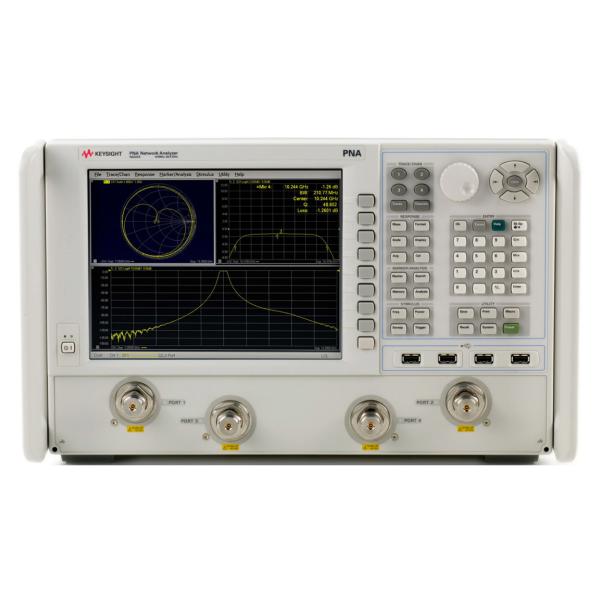

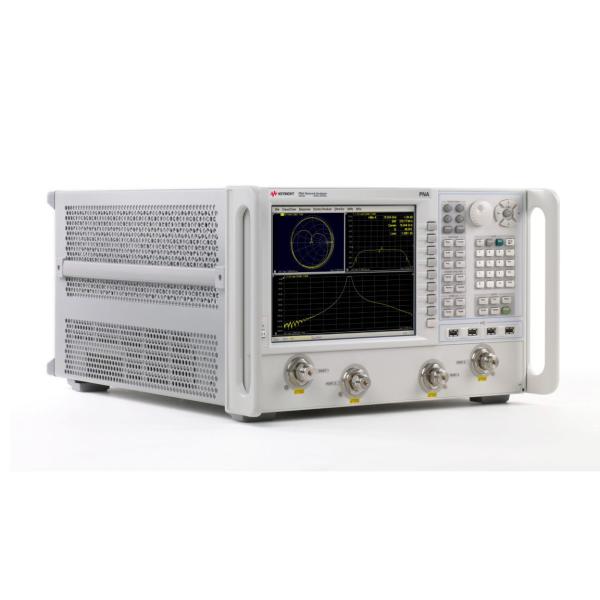

Test Equipment N5222A Microwave Or Vector Network Analyzer 10MHz-26.5GHz For Buyer
Test Equipment N5222A Microwave Or Vector Network Analyzer 10MHz-26.5GHz For Buyer
Test Equipment N5222A Microwave Or Vector Network Analyzer 10MHz-26.5GHz For Buyer
Test Equipment N5222A Microwave Or Vector Network Analyzer 10MHz-26.5GHz For Buyer
Test Equipment N5222A Microwave Or Vector Network Analyzer 10MHz-26.5GHz For Buyer
Test Equipment N5222A Microwave Or Vector Network Analyzer 10MHz-26.5GHz For Buyer
Specifications
Brand Name :
Keysight (Agilent)
Model Number :
N5222A
Place of Origin :
Malaysia
MOQ :
1 set
Price :
Negotiable
Packaging Details :
Carton
Delivery Time :
1~3 Working Days
Payment Terms :
T/T，Western Union
Supply Ability :
In Stock
Dynamic Range :
Up To 132 DB
Output Power :
Up To +13 DBm
Power Range :
Up To +38 DBm
Number of Channels :
200
Measurement Speed :
Up To 500,000 Points/s
Sweep Time :
Up To 0.01 Ms
Display Resolution :
Up To 0.001 DB
Connector Type :
SMA, N, 2.4 Mm, 3.5 Mm
Description

Product Description:

Key Features & Specifications

1.10 MHz to 26.5 GHz

2.2-ports with single source or 4-ports with two built-in sources

3.127 dB system and 132 dB receiver dynamic range, 32,001 points, 200 channels, 15 MHz IF bandwidth

4.High output power (+13 dBm) and a wide power sweep range (38 dB)

5.Best dynamic accuracy: 0.1 dB compression with +12 dBm input power at the test port

6.Low noise floor of -114 dBm at 10 Hz IF bandwidth

Highest performance network analyzer that meets your budget

The PNA Series is the highest-performing microwave network analyzer in the industry for passive and active device test. You can choose from five frequency models, 13.5, 26.5, 43.5, 50, or 67 GHz, and customize your PNA with the just the right level of performance to meet your specific budget and measurement needs.

The Agilent PNA is used to test a wide variety of passive and active devices such as filters, duplexers, amplifiers and frequency converters. The high-performance characteristics of the PNA make it an ideal solution for these types of component characterizations as well as millimeter-wave, signal integrity and materials measurements.

Most accurate S-parameter measurements

The PNA Series provides high-power sources and the best linear receivers, giving it the most accurate S-parameter measurements with the widest power range in the market.

Overview and Features:

1.Reach for unrivaled excellence in your measurements and designs

2.Transform deeper understanding into better designs with the PNA’s outstanding measurement integrity

3.Meet your toughest measurement challenges with the highest performing microwave network analyzer in the industry

4.Get the best accuracy with Keysight’s S-parameter measurements

5.Meet your specific budget and measurement needs by customizing to just the right level of performance

​​​What's Included:

1.Plug, hole, bottom foot

2.Installation and quick start guide

3.Safety manual

4.Calibration certificate

5.3 Inductors (ferrite cores)

6.Wrench

7.Cable tie

8.Optical Mouse

Applications:

  • S-parameters (CW and pulsed)
  • Noise figure
  • Gain compression
  • Intermodulation and harmonic distortion
  • Conversion gain/loss
  • True-differential stimulus
  • Millimeter-wave
  • Material measurements
  • Signal integrity
  • Antenna test

List of Options:

007 Automatic Fixture Removal
008 Pulsed-RF Measurements
010 Time Domain
015 Dynamic Uncertainty for S-Parameter Measurements
020 Add IF inputs
021 Add pulse modulator to internal first source
022 Add pulse modulator to internal second source
025 Add four internal pulse generators
028 Noise figure measurements using standard receivers
080 Frequency- Offset ( for use with mixers, converters and amplifiers)
082 Scalar calibrated converter measurements
083 Vector and scalar calibrated converter measurements
084 Embedded LO measurements
086 Gain compression application
087 Intermodulation distortion measurements
088 Source phase control
089 Differential and I/Q devices application
090 Spectrum Analyzer
093 Extended Spectrum Analyzer to 110 GHz
094 Extended Spectrum Analyzer above 110 GHz
118 Fast CW Mode
200 2 ports, single source, base hardware configuration
201 2-Ports, Single Source with Configurable Test Set
210 2 ports, single source, with metrology configuration
217 2-Ports, Single Source, Configurable Test Set with Extended Power Range
219 2-Ports, Single Source, Configurable Test Set, Extended Power Range, Bias-Tees
301 Application for use with standard CalPods
302 Application for use with temperature-characterized CalPods
400 4-Ports, Dual-Source, Base Configuration
401 4-Ports, Dual-Source with Configurable Test Set
417 4-Ports, Dual-Source, Configurable Test Set with Extended Power Range
419 4-Ports, Dual-Source, Configurable Test Set, Bias Tees with Extended Power Range
460 Integrated true-mode stimulus application
551 N-port calibrated measurements
897 Built-in performance test software for inclusive calibration, perpetual license
898 Built-in performance test software for standards compliant calibration, perpetual license
W7X Windows 7 operating system
WXP Windows XP operating system

Support and Services:

1.One-stop service from manufacture to shipping.
2.Your inquiry related to our products or prices will be replied in 24hours.
3.Well-trained and experienced staffs to answer all your enquires influent English.
4.Distributor ship is offered for your unique desigh and some our current models.
5.Protection of your sales area, ideas of design and all your private information.
6.30 days warranty

FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below .
