Rohde and Schwarz Spectrum Rider FPH Handheld Spectrum Analyzer 5 kHz up to 44 GHz FPH.02 FPH.06 FPH.13 FPH.23 5 FPH.26 FPH.36 FPH.44 FPH.54

Description of FPH Handheld Spectrum Analyzer

The R&S Spectrum Rider is a lightweight analyzer with a long battery life which can be used for high accuracy for measurements in the field and in the lab. It is available in various frequency options from 5 kHz to 44 GHz (5 kHz to 2, 3, 4, 6, 13.6, 26.5 and 44 GHz). The good part with this device is that the frequency configurations can be unlocked with a set of keycodes. So you no longer need to change the device to upgrade the frequency.

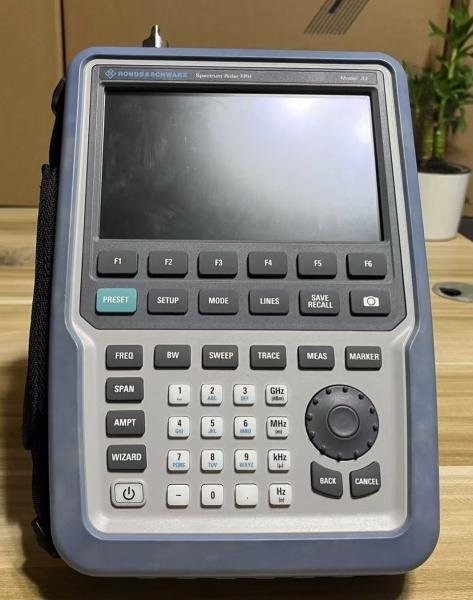

The large format capacitive touchscreen enables lab users to easily and intuitively adjust settings such as frequency, span and reference level and to set markers. Its large buttons and practical multifunction wheel also make it easy to operate with gloves in outdoor environments.

The high-frequency models enable the rugged R&S Spectrum Rider FPH to perform a vast range of measurement tasks in the field and lab. In combination with a number of useful options, the R&S Spectrum Rider FPH is a handy tool for diverse applications, such as verifying signal transmission over 5G, broadcast, radar and satellite communications links. The instrument will appeal to field technicians and lab engineers alike, as it supports everyday measurement tasks in aerospace and defense, mobile network testing and broadcasting, as well as tasks to be performed by regulatory authorities and tasks in education.

Rohde & Schwarz has optimized the R&S Spectrum Rider for mobile use. The battery of the lightweight unit (2.5 kg) lasts up to eight hours, making it the only instrument of its kind capable of working a full day without recharging. The backlit keypad allows users to work in the dark, and the non-reflective display supports a daylight mode for good readability in direct sunlight. The R&S Spectrum Rider has been field-tested in line with MIL PRF 28800F Class 2 and comes with protected interfaces and ports. The handheld spectrum analyzer can be remotely controlled via USB and LAN. A built-in measurement wizard automates measurements, reducing measurement times and enabling even novice users and operators with little RF expertise to reliably carry out measurement tasks. Settings and results are saved to a 32 GB microSD card.

Key facts

5 kHz up to 44 GHz (tracking generator models available)

Performance: excellent displayed average noise level (DANL)

Portability: lightweight (from 2.5 kg) and battery lasts for a day's work

Price: affordable

User experience redefined thanks to multitouch interface

Available models:

The analyzer has an innovative fanless concept – part of a rugged design that protects it from dust and water. Designed with power optimization in mind, the R&S®Spectrum Rider FPH consumes less power than competitor products and can be operated for a full working day without recharging.

The R&S®Spectrum Rider FPH is a high-quality spectrum analyzer. Its favorable price tag lowers the barrier to entry for prospective premium analyzer owners. The unique frequency upgrade concept and software keycode options make it easy to upgrade the instrument.

List of Options

FAQ:
