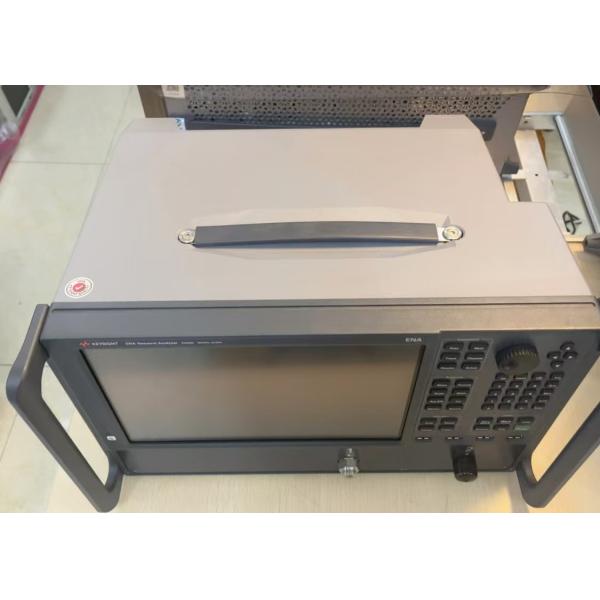

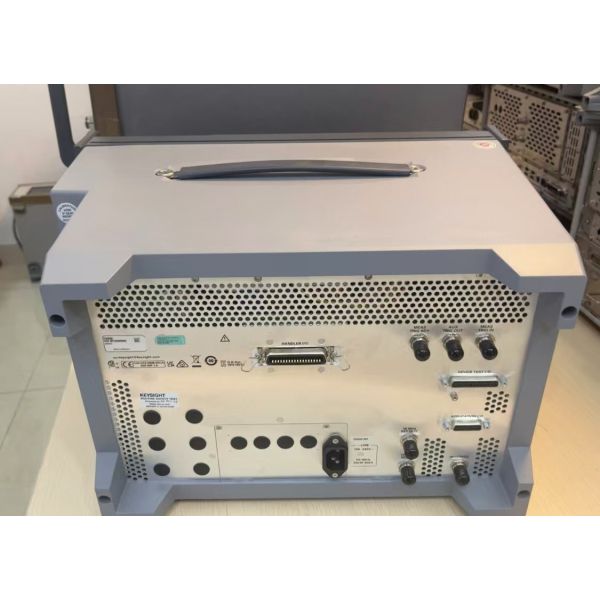

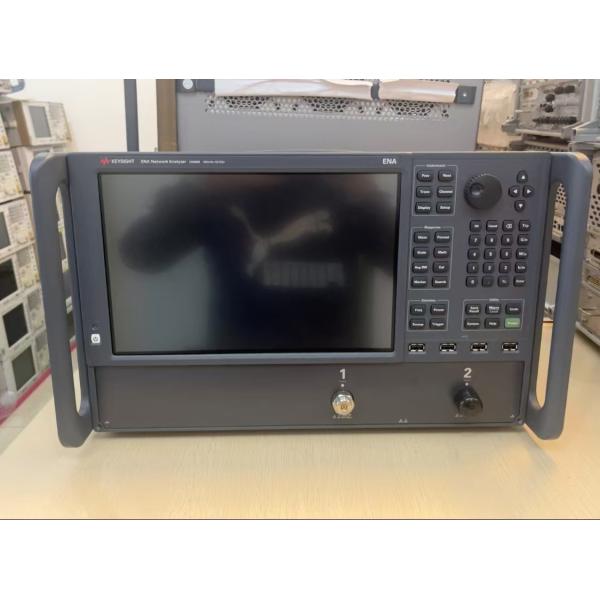

ISO17025 Calibrated Keysight ENA Vector Network Analyzer E5080B 4L0 4 port test set 100 kHz to 26.5 GHz
ISO17025 Calibrated Keysight ENA Vector Network Analyzer E5080B 4L0 4 port test set 100 kHz to 26.5 GHz
ISO17025 Calibrated Keysight ENA Vector Network Analyzer E5080B 4L0 4 port test set 100 kHz to 26.5 GHz
ISO17025 Calibrated Keysight ENA Vector Network Analyzer E5080B 4L0 4 port test set 100 kHz to 26.5 GHz
ISO17025 Calibrated Keysight ENA Vector Network Analyzer E5080B 4L0 4 port test set 100 kHz to 26.5 GHz
ISO17025 Calibrated Keysight ENA Vector Network Analyzer E5080B 4L0 4 port test set 100 kHz to 26.5 GHz
Specifications
Brand Name :
Keysight
Model Number :
E5080B
Certification :
ISO17025
Place of Origin :
Malaysia
MOQ :
1
Price :
Negotiation
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
In Stock
Delivery Time :
1~3 Working Days
Packaging Details :
Carton
Frequency range :
100 kHz to 26.5 GHz
VNA Type :
Benchtop
Ports :
4 ports test set
Condition :
New
Description

ISO17025 Calibrated Keysight ENA Vector Network Analyzer E5080B 4L0 4 port test set 100 kHz to 26.5 GHz

Description of Keysight Vector Network Analyzer E5080B 4L0

The E5080B VNA enables complete device characterization for passive components, amplifiers, mixers, and frequency converters. Integrated DC sources, bias tees, pulse generators, pulse modulators, and an internal second source enable more measurements on one instrument. Gain deeper insights with software applications including spectrum analysis, mixer measurements, and noise figure.

The E5080B utilizes the same measurement science as other Keysight vector network analyzers such as the PNA, PXI, and USB VNA. The common software platform makes it easy to balance measurement, performance, and budget needs. This commonality guarantees measurement consistency, repeatability, and a common remote programming interface across R&D and manufacturing instruments.

The E5080B eliminates the cost and complexity of configuring multiple instruments. Integrated hardware capabilities for a wide range of tests turn the E5080B into a complete measurement solution.

The E5080B's options include:

  • DC sources
  • Pulse generators and modulators
  • Spectrum analysis
  • Noise figure measurements

Network analyzer software tools enable you to investigate, characterize, and troubleshoot your designs in a variety of measurement applications. Simplify complex measurements on your E5080B with software applications such as advanced time domain analysis, spectrum analysis, pulsed-RF measurements, and more.

The E5080B vector network analyzer provides a more comprehensive solution for R&D and manufacturing test with robust software application coverage, flexible hardware, and fast cycle time to accelerate your device characterization.

E5080B ENA Series Vector Network Analyzer As devices become highly integrated, complete characterization requires a complete RF and microwave measurement solution. The E5080B brings R&D performance up to 20 GHz and flexibility to a midrange platform. Best-in-class dynamic range, trace noise, and temperature stability guarantee reliability and repeatability. Test consistently across your entire workflow with the same UI and SCPI commands as high-end PNAs. The E5080B enables complete device characterization for passive components, amplifiers, mixers, and frequency converters. You can perform more tests with one box with integrated features such as DC sources, bias tees, pulse generators, and pulse modulators. Gain deeper insights with software applications including spectrum analysis, mixer measurements, and noise figure. Choose from a 2- or 4- port option with frequency coverage from 9 kHz up to 20 GHz. The E5080B utilizes the same measurement science as other Keysight vector network analyzers (VNAs) such as the PNA, PXI, and USB VNA. A common software platform makes it easy to choose the right level of performance to match budget and measurement needs. This commonality guarantees measurement consistency, repeatability, and a common remote-programming interface across multiple instruments in R&D and manufacturing.

ISO17025 Calibrated Keysight ENA Vector Network Analyzer E5080B 4L0 4 port test set 100 kHz to 26.5 GHz

List of Options
021 Add pulse modulator to internal 1st source
022 Add pulse modulator to internal 2nd source
090 Spectrum analysis hardware, 9 kHz to 4.5 GHz
091 Spectrum analysis hardware, 9 kHz to 6.5 GHz
092 Spectrum analysis hardware, 9 kHz to 9 GHz
093 Spectrum analysis hardware, 9 kHz to 14 GHz
094 Spectrum analysis hardware, 9 kHz to 20 GHz
095 Spectrum analysis hardware, 100 kHz to 26.5 GHz
096 Spectrum analysis hardware, 100 kHz to 32 GHz
097 Spectrum analysis hardware, 100 kHz to 44 GHz
098 Spectrum analysis hardware, 100 kHz to 53 GHz
120 Add internal bias tees for 2-port E5080B up to 20 GHz
140 Add internal bias tees for 4-port E5080B up to 20 GHz
172 Add GPIB interface
175 Add analog input and output
1A7 Calibration + Uncertainties + Guardbanding
1E5 Add high stability timebase
1NC Equipped with type-N connectors
240 2-port test set, 9 kHz to 4.5 GHz
260 2-port test set, 9 kHz to 6.5 GHz
290 2-port test set, 9 kHz to 9 GHz
2D0 2-port test set, 9 kHz to 14 GHz
2H0 2-port test set, 9 kHz to 18 GHz
2K0 2-port test set, 9 kHz to 20 GHz
2L0 2-port test set, 100 kHz to 26.5 GHz
2M0 2-port test set, 100 kHz to 32 GHz
2N0 2-port test set, 100 kHz to 44 GHz
2P0 2-port test set, 100 kHz to 53 GHz
440 4-port test set, 9 kHz to 4.5 GHz
442 4-port test set, 9 kHz to 4.5 GHz with second source
460 4-port test set, 9 kHz to 6.5 GHz
462 4-port test set, 9 kHz to 6.5 GHz with second source
490 4-port test set, 9 kHz to 9 GHz
492 4-port test set, 9 kHz to 9 GHz with second source
4D0 4-port test set, 9 kHz to 14 GHz
4D2 4-port test set, 9 kHz to 14 GHz with second source
4H0 4-port test set, 9 kHz to 18 GHz
4H2 4-port test set, 9 kHz to 18 GHz with second source
4K0 4-port test set, 9 kHz to 20 GHz with second source
4K2 4-port test set, 9 kHz to 20 GHz with second source
4L0 4-port test set, 100 kHz to 26.5 GHz
4L2 4-port test set, 100 kHz to 26.5 GHz with second source
4M0 4-port test set, 100 kHz to 32 GHz
4M2 4-port test set, 100 kHz to 32 GHz with second source
4N0 4-port test set, 100 kHz to 44 GHz
4N2 4-port test set, 100 kHz to 44 GHz with second source
4P0 4-port test set, 100 kHz to 53 GHz
4P2 4-port test set, 100 kHz to 53 GHz with second source
A6J ANSI Z540-1-1994 Calibration
S96007A Automatic Fixture Removal
S96007B Automatic Fixture Removal
S96010A Time Domain Analysis
S96010B Time Domain Analysis
S96011A Enhanced Time Domain Analysis with TDR
S96011B Enhanced Time Domain Analysis with TDR
S96025A Basic Pulsed-RF Measurements
S96025B Basic Pulsed-RF Measurements
S96029A Noise Figure Measurements with Vector Correction
S96029B Noise Figure Measurements with Vector Correction
S96082A Scalar Mixer/Converter Measurements
S96082B Scalar Mixer/Converter Measurements
S96083A Vector and Scalar Mixer/Converter Measurements
S96083B Vector and Scalar Mixer/Converter Measurements
S96084A Embedded LO Capability
S96084B Embedded LO Capability
S96086A Gain-Compression Measurements
S96086B Gain-Compression Measurements
S96089B Differential and I/Q Device Measurements
S96090A Spectrum Analysis
S96090B Spectrum Analysis
S96552B Multiport Calibration Assistant
U8487A 10 MHz – 50 GHz USB Thermocouple Power Sensor
WIN10

FAQ:

1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below.

ISO17025 Calibrated Keysight ENA Vector Network Analyzer E5080B 4L0 4 port test set 100 kHz to 26.5 GHzISO17025 Calibrated Keysight ENA Vector Network Analyzer E5080B 4L0 4 port test set 100 kHz to 26.5 GHzISO17025 Calibrated Keysight ENA Vector Network Analyzer E5080B 4L0 4 port test set 100 kHz to 26.5 GHz
