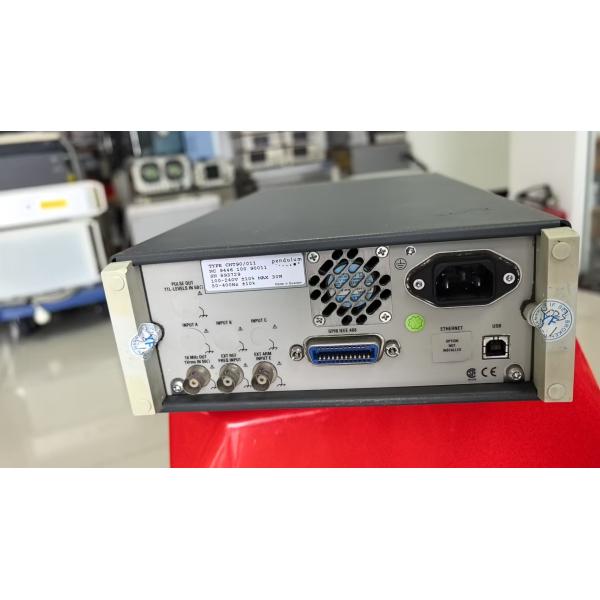

Pendulum CNT-90 Basic Frequency Counter/Analyzer Timer Counter Analyzer

Description of Pendulum CNT-90 Basic Frequency Counter/Analyzer Timer Counter Analyzer

The CNT-90 Frequency Timer/Counter/Analyzer is excellent for measurement, analysis and calibration of frequency, time, or phase. In production test systems, R&D, the calibration lab, or in the field; the CNT-90 timer/counter/analyzer outperforms many existing counters on the market.
The Pendulum CNT-90 timer/counter/analyzer is an ultimate tool for measurement, analysis and calibration of Frequency, Time Interval or Phase. The CNT-90 is a high-performance counter with a fast measurement speed to 250,000 measurements/s, and time interval measurement resolution to 100 ps. The CNT-90 offers ease-of-use including graphical display and improved display and improved control over measurement at an outstanding price.
Features of Pendulum CNT-90 :

• 250k measurements/s to internal memory, 750k stored measurements results
• Fast GPIB/USB bus speed, 5k means/s – block mode
• Resolution: 12 digits/s (freq.), 100 ps (time), 0.001o (phase)
• 14 digits display
• Frequency range: 400 MHz as standard. 3, 8, 15 and 20 GHz optional
• Ease-of-use: Multi-parameter display and graphical presentation of results
• Outstanding perfomance/price ratio

Additional Technical Features
CNT-90 does not only offer high-performance, it is an ultimate tool for more specialized measurement. Some great features of the CNT-90 are:
• Zero dead-time technique and continuous time-stamping of trigger events. This feature allows correct measurements of Allan Deviation and is very valuable in mechanical (e.g. rotational encoder testing) and medical (e.g. nerve impulse/ respiratory cycles) measurements where every single cycle must be measured.
• Limit qualifying a handy tool for making correct calculation of statistical parameters e.g. to verify the jitter of digital pulses that appear in discrete clusters (e.g. in CD-players or in HDB3- coded data). By setting limits you can isolate one cluster in the calculation.
• Hysteresis compensation in Time Interval measurements reduces trigger level error from the typical 15-20 mV found in most counters on the market today, down to typ. 2.5 mV. This means 6-8 times improved trigger precision in critical time interval measurements.


List of options of CNT-90

Basic Model CNT-90: 400 MHz, 100 ps Timer/Counter including Standard Time Base
Input Frequency Options
• Option 10: 3 GHz Input C
• Option 13: 8 GHz Input C
• Option 14: 15 GHz Input C
• Option 14B: 20 GHz Input C
Oscillator Options
Option 19/90: Medium Stability Oven Time Base; 0.06 ppm/month
Option 30/90: Very High Stability Oven Time Base; 0.01 ppm/month
Option 40/90: Ultra High Stability Oven Time Base; 0.003 ppm/month
Optional Accessories
• Option 11/90: Rear Panel Inputs (replaces front panel inputs)
• Option 22/90: Rack-Mount Kit
• Option 23/90: Battery Unit
• Option 27: Carrying Case - soft
• Option 27H: Heavy-duty Hard Transport Case
• Option 29/90: TimeView Modulation domain Analysis SW for CNT-90
• Option 90/01: Calibration Certificate with Protocol; Standard oscillator
• Option 90/06: Calibration Certificate with Protocol; Oven oscillator
• Option 90/00: Calibration Certificate with Protocol; Hold-over frequency aging/week
• Option 95/05: Extended warranty from 3 to 5 years
• OM-90: Users Manual English (printed)
• PM-90: Programmers Manual English (printed)
• SM-90: Service Manual English
• GS-90-EN: Getting Started English
• GS-90-FR: Getting Started French
• GS-90-DE: Getting Started German
