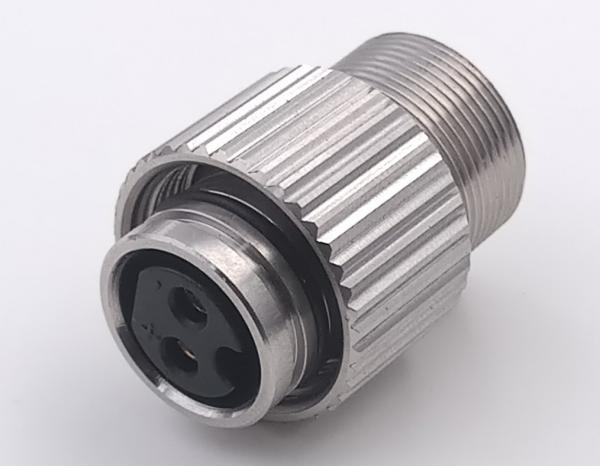

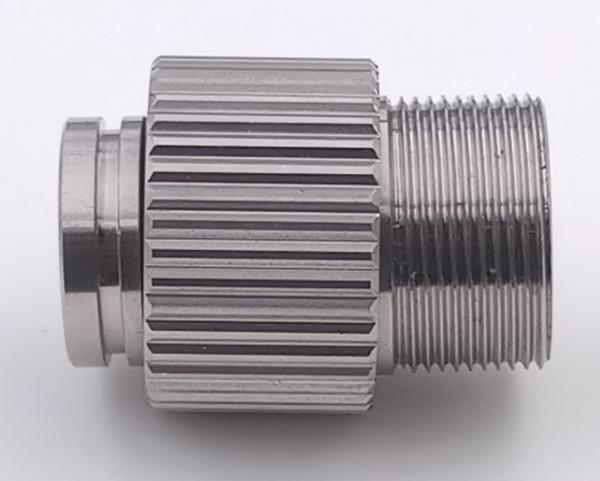

M16 Circular Electrical Connectors IP68 Two Pin Female Connector
M16 Circular Electrical Connectors IP68 Two Pin Female Connector
M16 Circular Electrical Connectors IP68 Two Pin Female Connector
M16 Circular Electrical Connectors IP68 Two Pin Female Connector
M16 Circular Electrical Connectors IP68 Two Pin Female Connector
M16 Circular Electrical Connectors IP68 Two Pin Female Connector
Specifications
Brand Name :
Sinrui
Model Number :
SR-C16LFS02-005
Certification :
RoHS
Place of Origin :
China
MOQ :
1000pcs
Price :
USD 9 per pcs
Payment Terms :
T/T
Supply Ability :
10000pcs per 21 days
Delivery Time :
L/C, T/T
Packaging Details :
export standard packing
Name :
M16 Circular connectors
Contact Number :
2 Cores
Gender :
Female socket
Interface mating :
M16 screw thread
mounting :
for Cables
Waterproof Level :
IP68, up to 100 meters underwater
Body material :
Stainless steel
Center contact plated :
Gold Plated 3U
cable spec :
can be specified
Life cycle :
500 cyles
Description

Products Name: M16 Circular waterproof stainless steel connectors 2 Cores with cables


Products Descrption:

It is an over IP68 level connectors with interface M16 screwthread that it is in mass production, and we supply it as power supply connectors in electric

scooeter, drone which is working under the sea over 50 meters deep, as well as industrial control devices.

Charaterisitcs:

Material:

  1. Product type:wire to wire connectors,

  2. Mating interface: M16, cicurlar screw thread

  3. Mounting: with cables, by soldering, clamping.

  4. Cores:2 cores (can be customized for more cores)

  8. Center Contact: Copper alloy, plated Gold

  9. Body: Stainless Stell, Passivated

    Insulator: PPS

    Seal: Rubber

    Tail Nut: PA

Specifcation
Item Description Value
1 All Material RoHS Compliant
2 Waterproof Level

Over IP68

(Can work under the sea 80 meters)

3 Rated Temperature -25 to 70 Degree
4 Life Cycle 500 cycles
5 Rated Voltage 60V
6 Rated Current 30A
7

Center Contact

plated thickness

 3U Gold
8 Contact Resistance 3m Ohms Max.
9 Salt Spray Test Hours 200 Hours

Drawings:

Application: vehicle, oir, aviation, equipment, intelligent robot under the sea,etc.

Function: It provides an excellent electronics conduction, and power charging, meanwhile it can bring you good dust and waterproof.

Sinrui's Advantage and Quality warranty for Circular Connectors

(ODM and OEM) Afford Customized design service:

products can be customized according to customer's products usage, including size, contact numbers, shape,

mating interface, cable mounting method, etc.

If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.

R&D testing Corner:

Contact us now!

Our Sales email: sales@sinruitech.com

TEL: +0086 755 26738082 or +0086 755 26738348

Cell: Luis: 0086 13502816005

Andrew: 0086 16620983840
