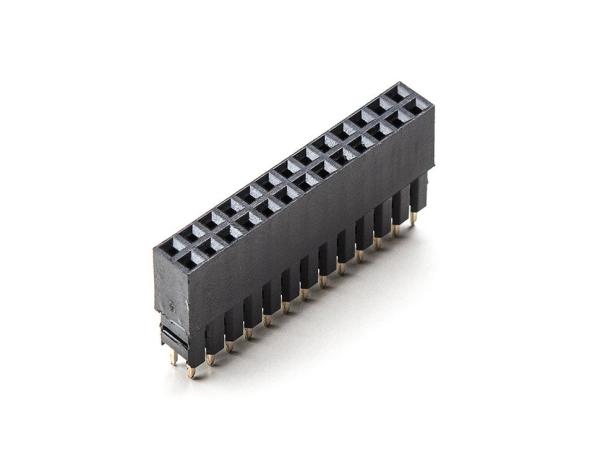

Dual Row Female Header Connector 2x13 Pins Gold Plated Arduino Header Pitch
Dual Row Female Header Connector 2x13 Pins Gold Plated Arduino Header Pitch
Specifications
Brand Name :
Sinrui
Model Number :
SR-F97D26AS-XX
Certification :
RoHS,REACH, ISO9001:2015
Place of Origin :
China
MOQ :
5000pcs
Price :
please contact us
Payment Terms :
T/T
Supply Ability :
500000 per 16 days
Delivery Time :
L/C, T/T
Packaging Details :
export standard packing
Pitch :
2.54mm
Pin Numbers :
26 Pins
Row :
Dual Row
Plastics Height :
9.7 mm
Pin Material :
Brass
Plastics Material :
PA6T +30% glass fiber
rated current :
3.0 Amp
Voltage rated :
500V AC / min,
Description

Products Name:Pitch 2.54mm female header Connector 2x13Pins Gold plated straight DIP for PCB Mounting

Products Descrption:

this Female Header Connector is with pitch 2.54mm, dual row with 4 pin numbers. with a specified plastics height of 8.5mm that it can afford an 3.0 AMP of current transmission. It usually match with a same pitch and pin number of Pin Header so as to form as board to board connection, or match with a wire haress forming as wire to board connection;

Its pitch, pin number, mounting type, height can be customized according to customer application, like:

Pitch can be optional as 1.27mm, 2.0mm, 2.54mm, etc;

And it can be single row, dual row or triple row.

And its plastics height are commonly optional for 8.5mm, 7.1mm, 5.7mm etc.

Mounting type can be customized to be SMT(vertical or side entry), DIP throught PCB(vertial or side entry).

Common Application:

we produce and supply in hugh volumn for consuming electronics of consumer catagory, Telecommunication, industrial control, meters, medical, aviation and millitary.

Material
Items Material Plating
Contact Brass Gold
Insulator PA6T +30% glass fiber N/A

Specification
Description Value
Type Board to Board Connector
Gender Female Header
Structure Straight
Mounting type

DIP for PCB Mounting
Current rated 3.0 Amp per contact
Voltage Rated 500V AC/ min.
Contact Resistance < 20m ohm per contact
Insulation resistance > 1000m ohm
Withstanding Voltage 500V DC/AC
Temperature Operation -40 C° to +105 C°
Processing(Soldering) Temperature

230C° for 30~60 seconds,

(260C° for 10 seconds)

Function: It provides an electric current connection between board to board or board to wires.

Sinrui's Advantage and Quality Warranty

(ODM and OEM) Afford Customized design service:

products can be customized according to customer's products usage, including pitch, size, structure, pins numbers,mounting method, etc.

If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.

R&D Corner of show:

Contact us now!
Our Sales email: sales@sinruitech.com
TEL: +0086 755 26738082 or +0086 755 26738348
Cell: Luis: 0086 13502816005
Andrew: 0086 16620983840
