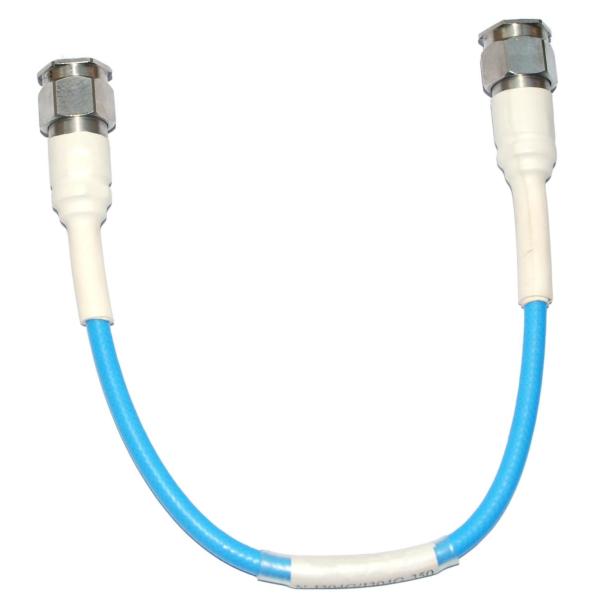

RG304 Cables RF Coaxial Cable Assembly N Straight Male To Male Connector
RG304 Cables RF Coaxial Cable Assembly N Straight Male To Male Connector
Specifications
Brand Name :
Sinrui
Model Number :
N-J304G/N-J304G
Certification :
RoHS, ISO9001:2015
Place of Origin :
China
MOQ :
500pcs
Price :
please contact us
Payment Terms :
T/T
Supply Ability :
10000 pcs per 28 days
Delivery Time :
L/C, T/T
Packaging Details :
export standard packing
Connector 1 :
N
Gender1 :
Male
Structure1 :
Straight
Connector 2 :
N
Gender2 :
Male
Structure2 :
Straight
Cable :
RG304 or customized
Cable Length :
340mm or customized
Size customized :
can be customized
Impedance :
50 Ohms
Description

Products Name: N straight male to N straight male RF Cable assembly with RG304 cables

RF Cable Assembly introduction:

RF cable assembly are usually formed by a coaxial cables whose two ends assembled with RF Connectors. RF cable assembly can perfectly transmit RF signal and power. RF Cable Assembly is an critical part of transmission system, its perfermance will affect transmission quality greatly. the performance of RF Cable assembly is not only based on RF connectors and Coaxial cables, but also its assembly technique and procedures are critical. A lot of RF cable assembly is not qualified due to unqualified assembly between connectors and cables. Thus, customers shall directly purchase RF cable assembly from a professional manufacutrer in priority.

And We, Sinrui Technology is a strong manufacturer in RF Fields for more than 15 years, that our experience, skills, engineers, machines can afford you a high quality of RF Cable Assembly

Common Application:

It is used in alll kinds of signal sender, modules, antenna, transmitter,receiver, make sure the signal among them are transmitted currectly, in good quality, high efficiently and in low lost,

Charaterisitcs:

  1. Interface Standard: N-J304G to N-J304G

  2. Type: Cable asssembly

  3. Gender: Male to Male

  4. Impedance: 50 Ohms

  5. Cable Type: RG304

Material
Parts Items Material Plating(or size)
N Body Phosphor bronze Gold
Center Contact Brass Nickel
Insulator PTFE
Cable RG 401 Silver plated copper-clad steel wire 340mm long or customized
N Body Phosphor bronze Gold
Center Contact Brass Nickel
Insulator PTFE

Specification
Description Value
Frequency DC 8.5GHz
Impedance 50 Ohms
VSWR 1.5
Life Cycle Standard
Temperature Rated -40 C° to +165 C°

Function: It provide a signal transmission bridge among devices.

Sinrui's Advantage and Quality warranty for RF Cable Assembly

(ODM and OEM) Afford Customized design service:

products can be customized according to customer's products usage, including size, shape, electric performance, mounting method, etc.

If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.

R&D testing Corner
Contact us now!
Our Sales email: sales@sinruitech.com
TEL: +0086 755 26738082 or +0086 755 26738348
Cell: Luis: 0086 13502816005
Andrew: 0086 16620983840
