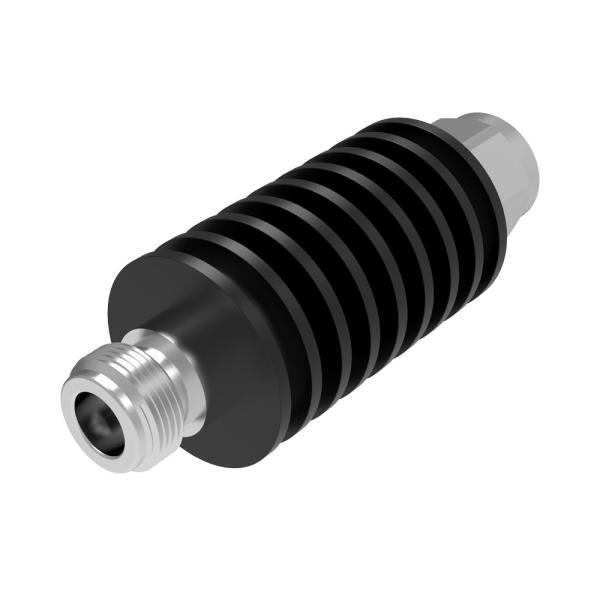

RoHs 10W 18G N Connector 10db Signal Coax Attenuator
RoHs 10W 18G N Connector 10db Signal Coax Attenuator
RoHs 10W 18G N Connector 10db Signal Coax Attenuator
RoHs 10W 18G N Connector 10db Signal Coax Attenuator
RoHs 10W 18G N Connector 10db Signal Coax Attenuator
RoHs 10W 18G N Connector 10db Signal Coax Attenuator
RoHs 10W 18G N Connector 10db Signal Coax Attenuator
RoHs 10W 18G N Connector 10db Signal Coax Attenuator
Specifications
Brand Name :
Vinncom
Model Number :
VN-AT-18G-10W-ONX
Certification :
RoHs ISO9000
Place of Origin :
China
MOQ :
10PCS
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
300pcs per day
Delivery Time :
depends on quantity
Packaging Details :
pp bags+box+carton+pallet
Operating Frequency :
DC-18 GHZ
Impedance ( Ohm ) :
50
Application :
Indoor & Outdoor
Degree of Protection :
IP65
Handling Power (Watt, max) :
10W
Interface :
N Male-N Female
Operating Temperature ( ℃ ) :
-55~+125℃
Description

10W 18G N Connector High Frequency 1- 40dB Coaxial Fixed Attenuator

Datasheet And Outline Drawing:

Part Number VN-AT-18G-10W-ONX
Operating Frequency DC-18 GHZ
Impedance ( Ohm ) 50
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt, max) 10W
Interface N Male-N Female
Operating Temperature ( ℃ ) -55~+125℃
Attenuation(dB) 1~10 11~20 21~30 31~40 VSWR
DC~4 ±0.4 ±0.5 ±0.6 ±0.7 ≤1.20
DC~8 ±0.5 ±0.6 ±0.8 ±0.8 ≤1.25
DC~12.4 ±0.6 ±0.7 ±0.8 ±0.9 ≤1.35
DC~18 ±0.8 ±0.9 ±1.0 ±1.2 ≤1.45
Dimension (mm) Φ30*84.5mm
Net Weight (g) /
Packing Dimensions (mm,L×W×H) /
Packing Carton Size (mm,L×W×H) /
ROHS Compliance Yes
Revision R1
Date 16-Feb-2021
RoHs 10W 18G N Connector 10db Signal Coax AttenuatorRoHs 10W 18G N Connector 10db Signal Coax Attenuator
Related Products:3.8G/4G 10W-200W RF Attenuator
698-2700MHz/698-3800MHz N/4.3-10/DIN Female 3dB Hybrid Combiner
RoHs 10W 18G N Connector 10db Signal Coax AttenuatorRoHs 10W 18G N Connector 10db Signal Coax Attenuator
Our Factory
Our factory is located in Changfeng County, Hefei, Anhui Province, China,covering an area of about 16,000 square meters.

  • The environment of our factory is beautiful, suitable for office and production.

RoHs 10W 18G N Connector 10db Signal Coax AttenuatorRoHs 10W 18G N Connector 10db Signal Coax Attenuator
Our Product Line
The production line is to integrate a whole set of working procedures together, improve the work efficiency.

  • Everyone has a detailed division of labor and performs his or her own duties

RoHs 10W 18G N Connector 10db Signal Coax AttenuatorRoHs 10W 18G N Connector 10db Signal Coax Attenuator
Our Instrument
RoHs 10W 18G N Connector 10db Signal Coax AttenuatorRoHs 10W 18G N Connector 10db Signal Coax Attenuator
Packaging
RoHs 10W 18G N Connector 10db Signal Coax AttenuatorRoHs 10W 18G N Connector 10db Signal Coax Attenuator
FAQ
1.Can we get a free sample firstly?
Yes,free sample for testing approval is available to our customers.But customer should pay shipping fee.

2.What is your MOQ?
No MOQ for any sample test,at least 10pcs after sample order.

3. Is OEM/ODM Service available?
Yes,the production base of CNCR has the strong ability to offer OEM/ODM service. But it will have requirement for the order quantity.

4. What's your company advantage?
We have our own R&D, production lines, marketing and sales team, professional technical support center.
We specialize in offering the whole network solution and all equipments needed in this solution.

5. Please let us know more details about Trade Terms, payment term and leadtime.
Payment Terms: 100% TT in advance, for the sample order
Price Terms: FOB Shanghai/ShenZhen
Internal Express: EMS,DHL,Fedex,TNT,UPS,by sea or your own shipping agent
Leadtime: Sample order,1-3 business days; mass production 7-15 business days after the deposit.

6.How about the Warranty?
The first year: replace the new equipment if the your products failed.
The second and third year: supplying free maintanence service, just charge components cost fee and labor fee
