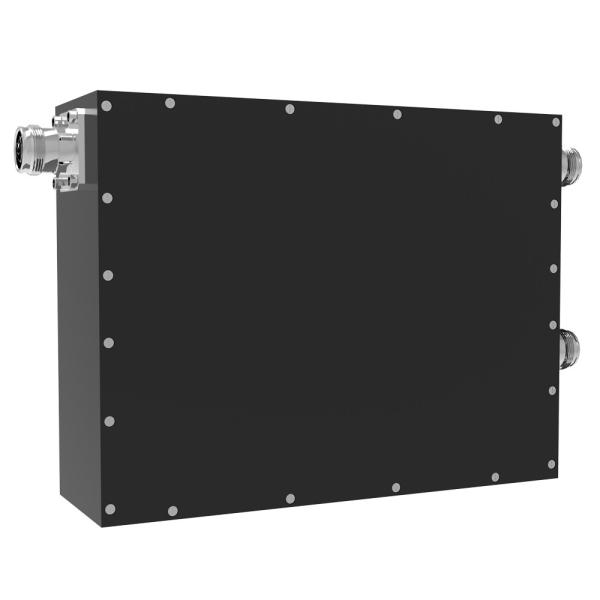

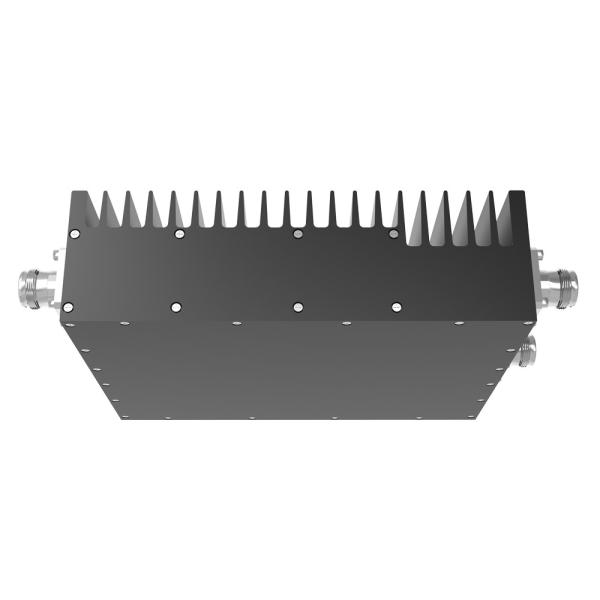

Female -163dbc Low PIM 2IN 1OUT RF Signals 3db Hybrid Combiner
Female -163dbc Low PIM 2IN 1OUT RF Signals 3db Hybrid Combiner
Female -163dbc Low PIM 2IN 1OUT RF Signals 3db Hybrid Combiner
Female -163dbc Low PIM 2IN 1OUT RF Signals 3db Hybrid Combiner
Female -163dbc Low PIM 2IN 1OUT RF Signals 3db Hybrid Combiner
Female -163dbc Low PIM 2IN 1OUT RF Signals 3db Hybrid Combiner
Female -163dbc Low PIM 2IN 1OUT RF Signals 3db Hybrid Combiner
Female -163dbc Low PIM 2IN 1OUT RF Signals 3db Hybrid Combiner
Specifications
Brand Name :
Vinncom
Model Number :
VN-LPHC2x1-0640-OP
Certification :
ROHS ISO9000
Place of Origin :
China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
D/A, L/C, D/P, T/T
Supply Ability :
300pcs per day
Frequency :
600-4000MHz
Connector :
4.3-10 Female
Color :
Customized
OEM/ODM :
Acceptable
Low PIM :
-153dbc -163dbc
Application :
DAS IBS Public Safety
ROHS :
Compliance
Design :
Wide Band
Description

550-3800MHz 600-4000MHz 4.3-10 Mini Din Female -153dbc -163dbc Low PIM 2IN 1OUT Hybrid Combiner

The hybrid combiner is used to split and combiner RF signals. It is related to the 3 dB hybrid which is based on PCB transmission lines or dielectric 3db hybrid , and is most commonly used as combiner in distributed antenna system(DAS).

Vinncom has many types of hybrid combiner for different frequency ,from 130MHZ to 6000MHZ ,for example ,2in1out ,3in 3out ,and 4in 4out for different usage and customized products also welcomed .

VN-LPHC2x1-0640-OP.pdf

Part Number VN-LPHC2x1-0640-OP
Operating Frequency ( MHz ) 600-4000
Impedance ( Ohm ) 50
VSWR 1.25
Coupling (dB) 3
Insertion Loss (dB) ≤0.9(splitting loss not including)
Isolation (dB) 23
IM3 (dBc @ 2×43dBm) -160
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 100
Peak Power (Watt, max) 1000
Dimension (mm)(L×W×H, excl connector) 220X170X68
ROHS Compliance Yes
Revision R1
Date 30-Dec-2020

Female -163dbc Low PIM 2IN 1OUT RF Signals 3db Hybrid Combiner
