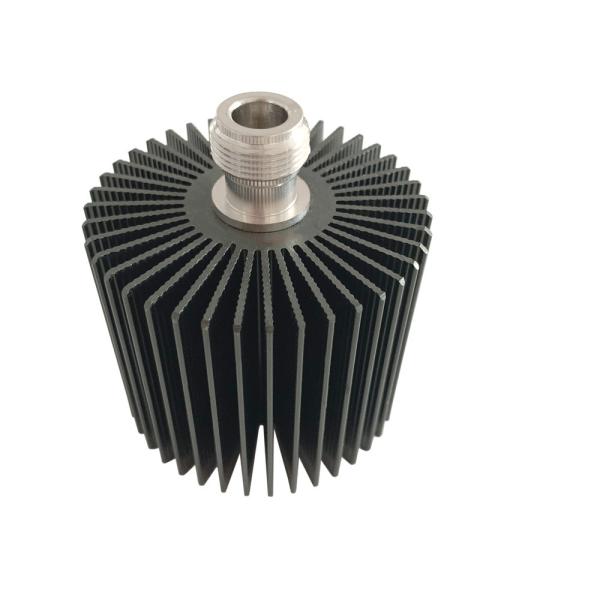

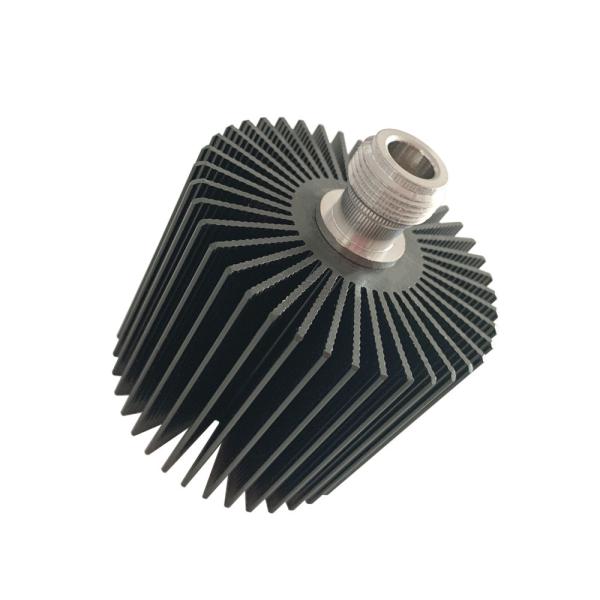

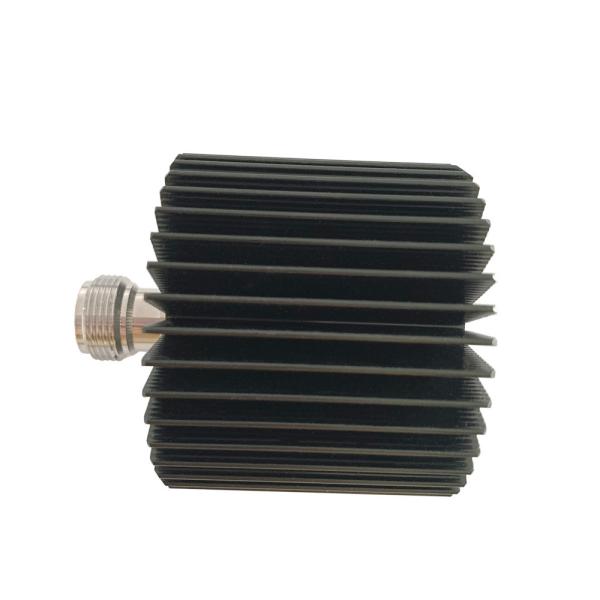

ROHS 4GHz N Female AC RF Dummy Load Low Standing Wave
ROHS 4GHz N Female AC RF Dummy Load Low Standing Wave
ROHS 4GHz N Female AC RF Dummy Load Low Standing Wave
ROHS 4GHz N Female AC RF Dummy Load Low Standing Wave
ROHS 4GHz N Female AC RF Dummy Load Low Standing Wave
ROHS 4GHz N Female AC RF Dummy Load Low Standing Wave
ROHS 4GHz N Female AC RF Dummy Load Low Standing Wave
ROHS 4GHz N Female AC RF Dummy Load Low Standing Wave
Specifications
Brand Name :
Vinncom
Model Number :
VN-LD-4G-30W-ONF
Certification :
ISO9000 ROHS
Place of Origin :
CHINA
MOQ :
5
Payment Terms :
D/A, D/P, T/T, L/C
Supply Ability :
1000pcs per day
Frequency Range :
0-3.8GHz 0-4GHz
Connector :
N Female
Color :
Black
Material :
Copper Inside , Alum Outside
Description

30 Watts 3.8GHz 4GHz N Female RF Dummy Load Termination

Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .

VN-LD-4G-30W-ONf.pdf

Part Number VN-LD-4G-30W-ONf
Operating Frequency ( GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.20
IM3 (dBc @ 2×37dBm) -110 / -120
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 30
Dimension (mm)(L×W×H, excl connector) 50 × Φ60
Net Weight (g) 190 ± 20
Packing Dimensions (mm,L×W×H) 65 × 65 × 85
Packing Carton Size (mm,L×W×H) 350 × 350 × 185
ROHS Compliance Yes
Revision R1
Date 27-Sept -2020

ROHS 4GHz N Female AC RF Dummy Load Low Standing Wave
