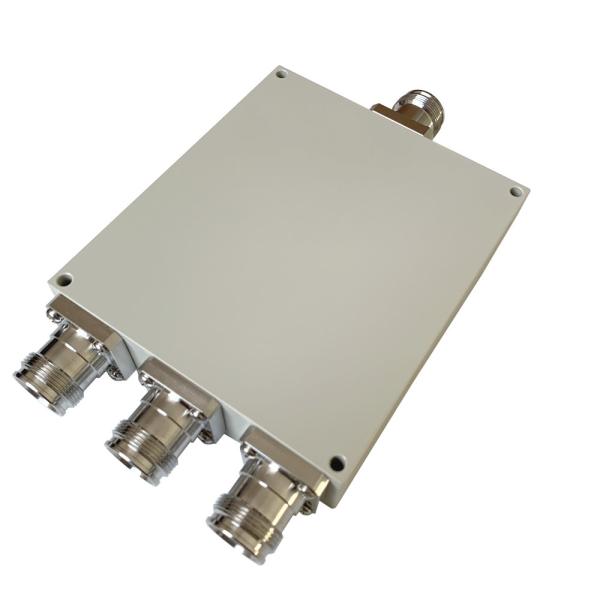

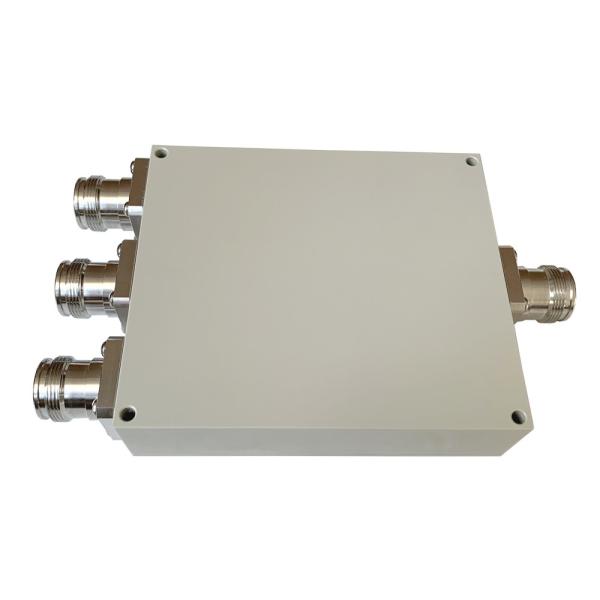

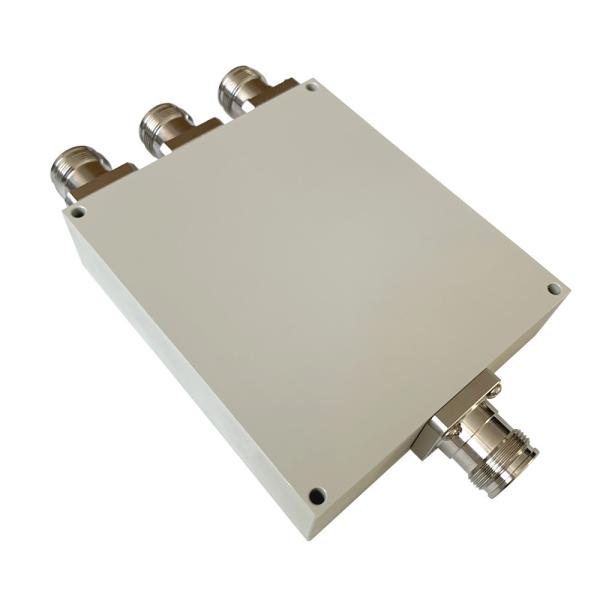

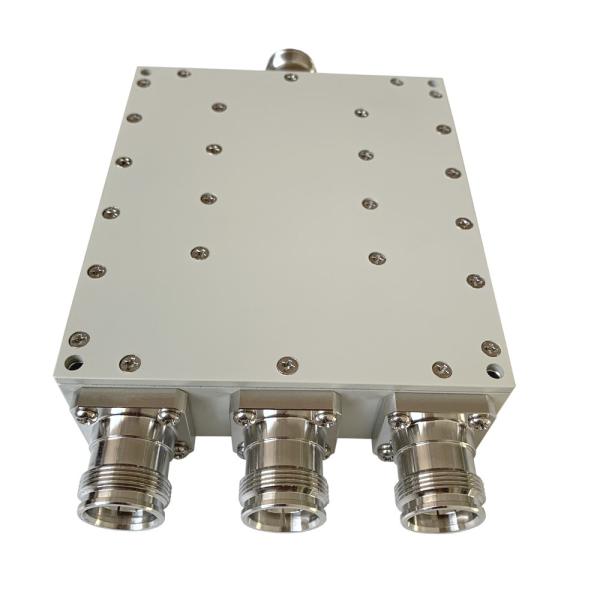

550-4000MHz 3 Way Microstrip T Junction Power Divider For DAS
550-4000MHz 3 Way Microstrip T Junction Power Divider For DAS
550-4000MHz 3 Way Microstrip T Junction Power Divider For DAS
550-4000MHz 3 Way Microstrip T Junction Power Divider For DAS
550-4000MHz 3 Way Microstrip T Junction Power Divider For DAS
550-4000MHz 3 Way Microstrip T Junction Power Divider For DAS
550-4000MHz 3 Way Microstrip T Junction Power Divider For DAS
550-4000MHz 3 Way Microstrip T Junction Power Divider For DAS
Specifications
Brand Name :
Vinncom
Model Number :
VN-PD-05540-OP3
Certification :
ROHS ISO9000
Place of Origin :
China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
D/A, L/C, D/P, T/T
Supply Ability :
1500pcs per day
Frequency :
550-4000MHz 698-4000MHz
Connector :
4.3-10 Mini Din Female
Color :
Customized
OEM/ODM :
Acceptable
Application :
DAS IBS Public Safety
ROHS :
Compliance
Design :
Wide Band
Description

550-4000MHz 698-4000MHz 4.3-10 Mini Female 3 Way Wilkinson Power Divider For Commercial DAS IBS

Wilkinson Power Divider (WPD) is a specific class of power divider circuit that can achieve isolation between the output ports while maintaining a matched condition on all ports. The Wilkinson design can also be used as a power combiner, the high degree of isolation between the output ports prevents cross talk between the individual channels which can be easily fabricated as quarter wave lines on circult. WPD also can be unequally divided the input power based on different usage ,.

Vinncom WPD has widely frequency range to 40GHZ ,and for sub-6Ghz

Customized products also are welcomed.

Part Number VN-PD-05540-OP3
Operating Frequency ( MHz ) 550-4000
Impedance ( Ohm ) 50
VSWR ≤1.25
Split Loss (dB) ≤6.0
Isolation (dB) ≥18
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -25 ~ + 85
Interface 4.3-10 Female
Average Power (Watt, max) 50(Power dividers) / 2(combiner)
Peak Power (Watt, max) 200
Dimension (mm)(L×W×H, excl connector) 118× 102.7× 29
Net Weight (g) 850±20
Packing Dimensions (mm,L×W×H) 175×110×50
Packing Carton Size (mm,L×W×H) 570×360×120
ROHS Compliance Yes
Revision R1
Date 30-December-2020
