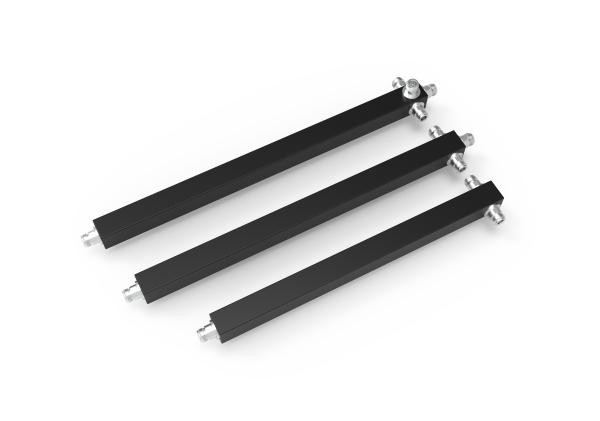

130 - 180MHz Power Splitter For DAS IBS PIM -150/ -155/-161/-165 N Female
130 - 180MHz Power Splitter For DAS IBS PIM -150/ -155/-161/-165 N Female
130 - 180MHz Power Splitter For DAS IBS PIM -150/ -155/-161/-165 N Female
130 - 180MHz Power Splitter For DAS IBS PIM -150/ -155/-161/-165 N Female
130 - 180MHz Power Splitter For DAS IBS PIM -150/ -155/-161/-165 N Female
130 - 180MHz Power Splitter For DAS IBS PIM -150/ -155/-161/-165 N Female
Specifications
Brand Name :
Vinncom
Model Number :
VN-PS-013018-ONx
Certification :
RoHS/ISO9000
Place of Origin :
China
Payment Terms :
T/T, Western Union
Frequency :
130-180MHz
Connector :
N Female
PIM :
-150/ -155/-161/-165
Application :
DAS IBS
ROHS :
Compliance
Description

130-180MHz Power Splitter For DAS IBS PIM -150/ -155/-161/-165 N Female

130-180MHz N Female Power Splitter PIM -150/ -155/-161/-165 For DAS IBS

Power Splitter

Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3rd PIM

VN-PS-013018-ONx-XXX.pdf

Part Number VN-PS-013018-ONx
Operating Frequency ( MHz ) 130-180
Impedance ( Ohm ) 50
VSWR 2 way ≤1.25 3 way ≤1.3 4 way ≤1.3
Split Loss (dB) 2 way:3.5 3 way:5.5 4 way:6.6
IM3 (dBc @ 2×43dBm) -150/ -155/-161/-165
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
Dimension (mm)(L×W×H, excl connector) 330.1 × 25 × 25 379 × 25 × 25 394 × 25 × 25
Net Weight (g) 515 ± 20 615 ± 20 665 ± 20
Packing Dimensions (mm,L×W×H) 420×80×40 420×80×40 460×80×60
Packing Carton Size (mm,L×W×H) 434×435×195 434×435×195 480×445×275
ROHS Compliance Yes
Revision R1
Date 07-July-2022

130 - 180MHz Power Splitter For DAS IBS PIM -150/ -155/-161/-165 N Female

130 - 180MHz Power Splitter For DAS IBS PIM -150/ -155/-161/-165 N Female
