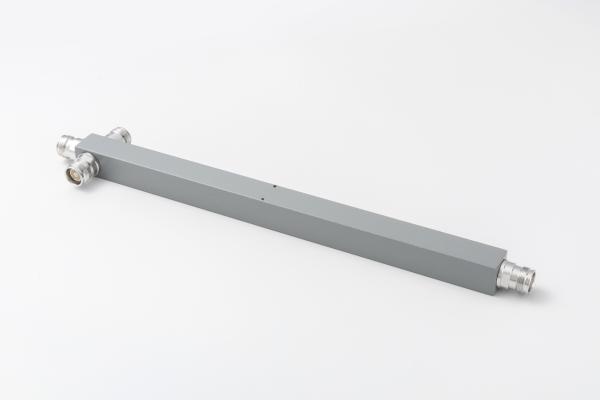

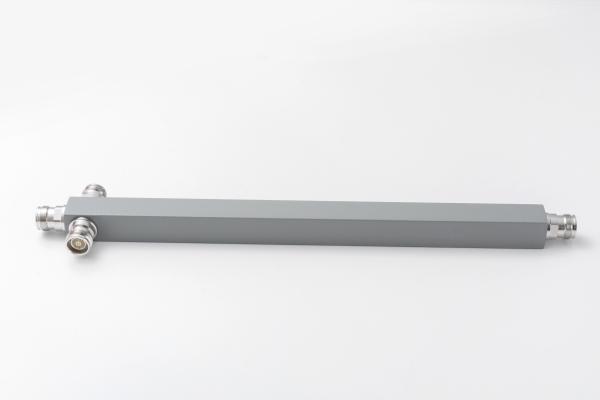

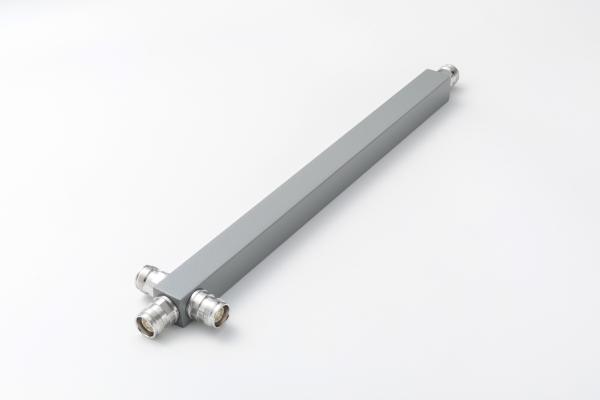

350-6000Mhz Power Splitter 4.3-10 Female PIM -150/ -155/-161/-165
350-6000Mhz Power Splitter 4.3-10 Female PIM -150/ -155/-161/-165
350-6000Mhz Power Splitter 4.3-10 Female PIM -150/ -155/-161/-165
350-6000Mhz Power Splitter 4.3-10 Female PIM -150/ -155/-161/-165
350-6000Mhz Power Splitter 4.3-10 Female PIM -150/ -155/-161/-165
350-6000Mhz Power Splitter 4.3-10 Female PIM -150/ -155/-161/-165
Specifications
Brand Name :
Vinncom
Model Number :
VN-PS-03560-OP
Certification :
RoHS/ISO9000
Place of Origin :
China
Payment Terms :
T/T, Western Union
Frequency :
350-6000Mhz
Connector :
4.3-10 Female
VSWR :
≤1.25；≤1.3
PIM :
-150/ -155/-161/-165
Application :
DAS IBS
ROHS :
Compliance
Description

350-6000Mhz Power Splitter 4.3-10 Female PIM -150/ -155/-161/-165

350-6000Mhz 4.3-10 Female Power Splitter PIM -150/ -155/-161/-165 For DAS IBS

Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3rd PIM

Vinncom reactive power splitters has widely frequency up to be 8GHZ,small sizes,and low PIM( -165dbc ).and welcome customized products design.

VN-PS-03560-OPx-XXX.pdf

Part Number VN-PS-03560-OP
Operating Frequency ( MHz ) 350-6000
Impedance ( Ohm ) 50
VSWR 2 way ≤1.25 3 way ≤1.25 4 way ≤1.3
Split Loss (dB) 2 way:3.5 3 way:5.6 4 way:7.1
IM3 (dBc @ 2×43dBm) -150/ -155/-161/-165
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 500
Peak Power (Watt, max) 1500
Dimension (mm)(L×W×H, excl connector) 318 × 25 × 25 365 × 25 × 25 399 × 25 × 25
Net Weight (g) 550 ± 20 645 ± 20 735 ± 20
Packing Dimensions (mm,L×W×H) 420×80×40 420×80×40 460×80×60
Packing Carton Size (mm,L×W×H) 434×435×195 434×435×195 480×445×275
ROHS Compliance Yes
Revision R1
Date 07-July-2022

350-6000Mhz Power Splitter 4.3-10 Female PIM -150/ -155/-161/-165

350-6000Mhz Power Splitter 4.3-10 Female PIM -150/ -155/-161/-165
