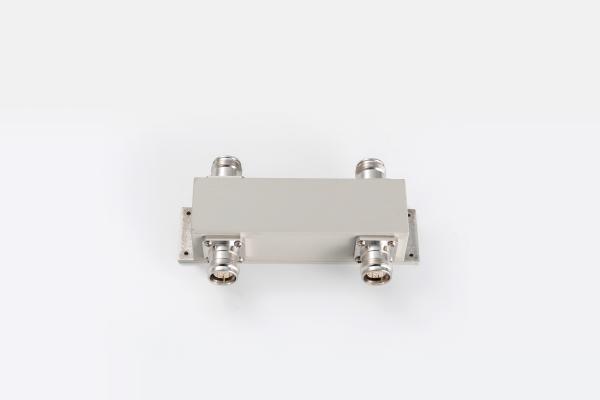

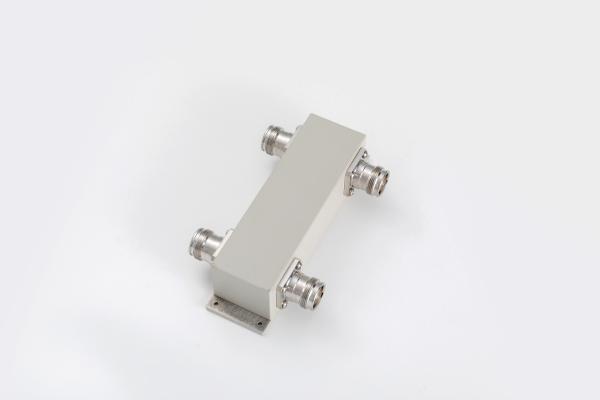

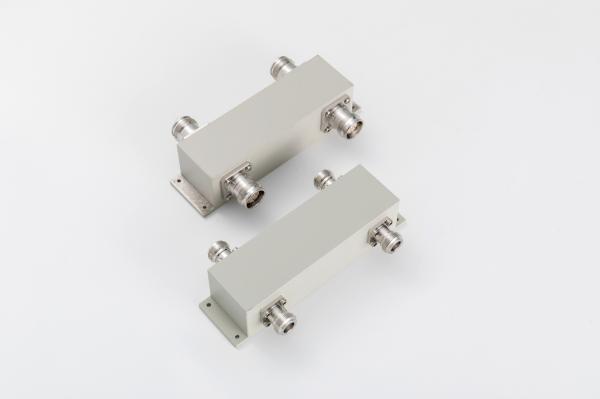

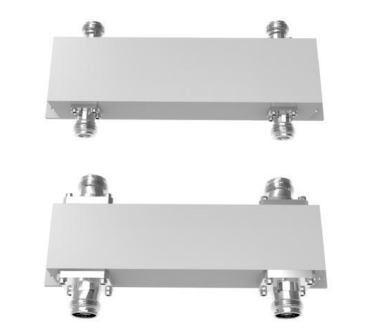

550-6000MHz Hybrid Coupler PIM -150/-160 N Female/4.3-10 Female For DAS

Hybrid couplers are the special case of a four-port directional coupler that is designed for a 3-dB (equal) power split. Hybrids come in two types, 90 degree or quadrature hybrids, and 180 degree hybrids.

Vinncom has different designs for hybrid coupler based on micro-strip ,air-dielectric and thin film,waveguide etc .

Hybrid couplers are widely used as a directional 3db coupler with one termination port , also can be used as a combiner of 2 in 2 out and 2 in 1 out .

For some usage ,hybrid couplers can be combined as matrix, for example 4in 4out ,3in 3out etc.

Vinncom supply many different frequency range for hybrid coupler and widely used in DAS and testing systems.

VN-HC2x2-0560-ON.docx

Part Number VN-HC2x2-05560-Ox-XXX
Operating Frequency ( MHz ) 550-6000
Impedance ( Ohm ) 50
VSWR 1.35
Coupling (dB) 3
Insertion Loss (dB) ±1.4
Isolation (dB) 20
IM3 (dBc @ 2×43dBm) -150/-160
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female/4.3-10 Female
Handling Power (Watt, max) 500(N:300)
Peak Power (Watt, max) 1500(N:1200)

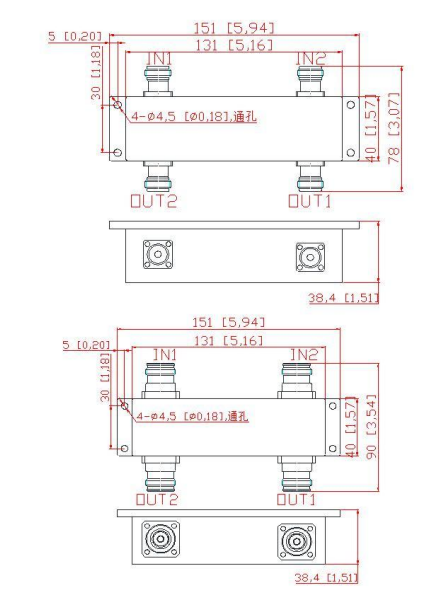

Dimension (mm)(L×W×H, excl connector) 131X40X38.4 131X40X38.4
Net Weight (g) 600± 5% 600± 5%
Packing Dimensions (mm,L×W×H) 170X100X40 170X100X40
Packing Carton Size (mm,L×W×H) 520X360X105 520X360X105
ROHS Compliance Yes
Revision R1
