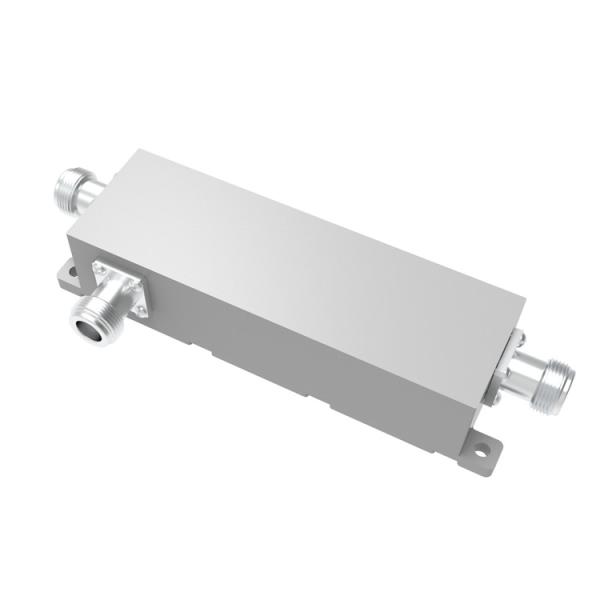

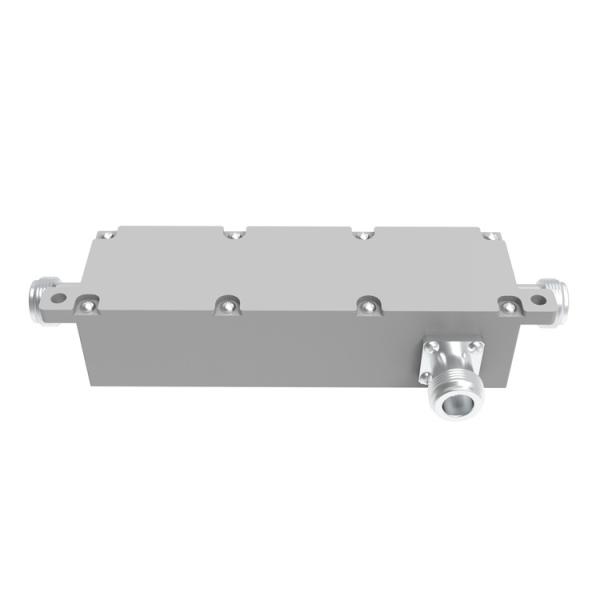

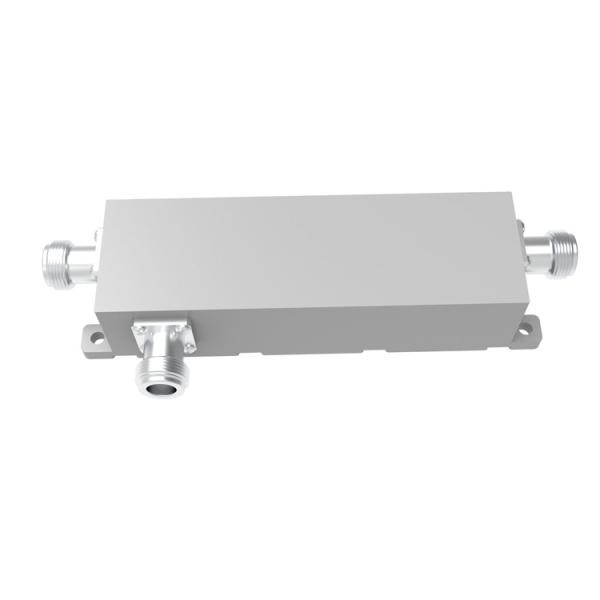

550-6000MHz N Female VSWR 1.35 PIM-160 Air Dielectric RF Directional Coupler
550-6000MHz N Female VSWR 1.35 PIM-160 Air Dielectric RF Directional Coupler
550-6000MHz N Female VSWR 1.35 PIM-160 Air Dielectric RF Directional Coupler
550-6000MHz N Female VSWR 1.35 PIM-160 Air Dielectric RF Directional Coupler
550-6000MHz N Female VSWR 1.35 PIM-160 Air Dielectric RF Directional Coupler
550-6000MHz N Female VSWR 1.35 PIM-160 Air Dielectric RF Directional Coupler
550-6000MHz N Female VSWR 1.35 PIM-160 Air Dielectric RF Directional Coupler
550-6000MHz N Female VSWR 1.35 PIM-160 Air Dielectric RF Directional Coupler
Specifications
Brand Name :
Vinncom
Model Number :
VN-DC-05560-ONx-xxx
Certification :
ISO9000/RoHS
Place of Origin :
China
MOQ :
10PCS
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
1000pcs per day
Delivery Time :
depends on your quantity
Packaging Details :
box/carton
Interface :
N Female
Dimension (mm) :
127× 40× 31（excludes connectors）
Handling Power :
300W
IM3 (dBc @ 2×43dBm) :
-160 163
VSWR :
≤1.30
Degree of Protection :
IP65
Description

550-6000MHz N Female VSWR 1.30 PIM-160 Air Dielectric Directional Coupler

VN-DC-05560-ONx-xxx.pdf

Part Number VN-DC-05560-ONx
Operating Frequency ( MHz ) 550-6000
Impedance ( Ohm ) 50
VSWR ≤1.35
Coupling (dB) 5 ± 1.4 6 ± 1.4 7 ± 1.4 8 ± 1.4 10 ± 1.6 15 ± 1.6 20 ± 1.6
Insertion Loss (dB) ≤2.20 ≤1.80 ≤1.5 ≤1.1 ≤0.8 ≤0.22 ≤0.2
Isolation (dB) ≥21 ≥22 ≥23 ≥24 ≥26 ≥31 ≥36
IM3 (dBc @ 2×43dBm) -160 163
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
Dimension (mm)

127× 40× 31

(excludes connectors)
Net Weight (g) 455± 5%
Packing Dimensions (mm) 180 × 75 × 30
Packing Carton Size(mm) 400 × 380 × 170
ROHS Compliance Yes

550-6000MHz N Female VSWR 1.35 PIM-160 Air Dielectric RF Directional Coupler550-6000MHz N Female VSWR 1.35 PIM-160 Air Dielectric RF Directional Coupler
Rf passive devices are mainly used in base station construction of wireless communication system and indoor power distribution system. Especially in the building of wireless signal distribution and coverage of a wide range of applications, a variety of. Rf passive devices are used to connect or distribute RF signals in base station construction and indoor power distribution projects. Indoor power distribution system is to connect or branch the signals sent by the base station through rf passive equipment, and then distribute them to each coverage point of the antenna through the feeder, so as to achieve good coverage of c indoor wireless signals.
