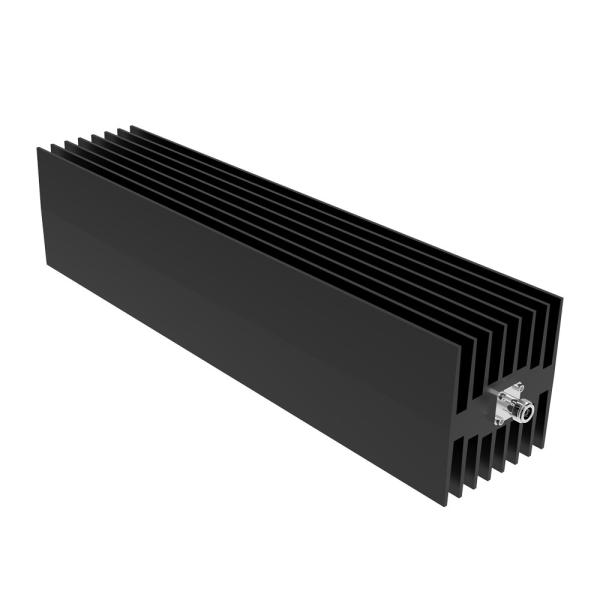

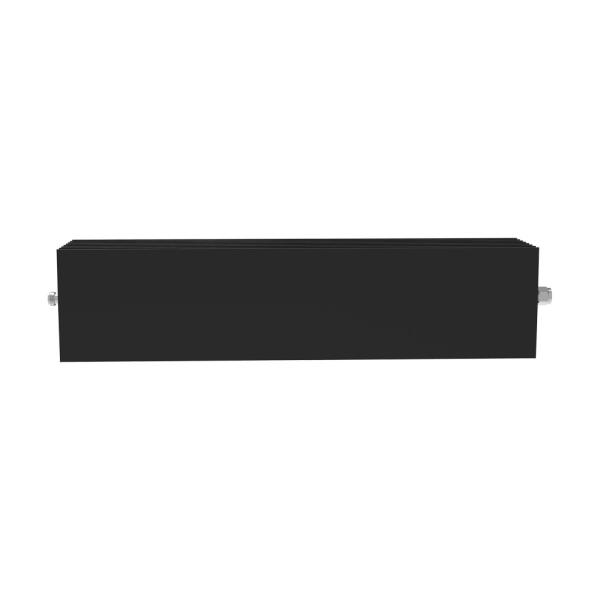

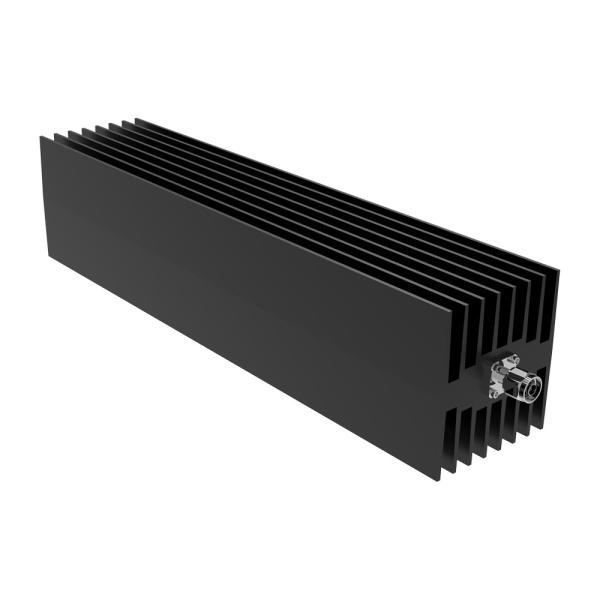

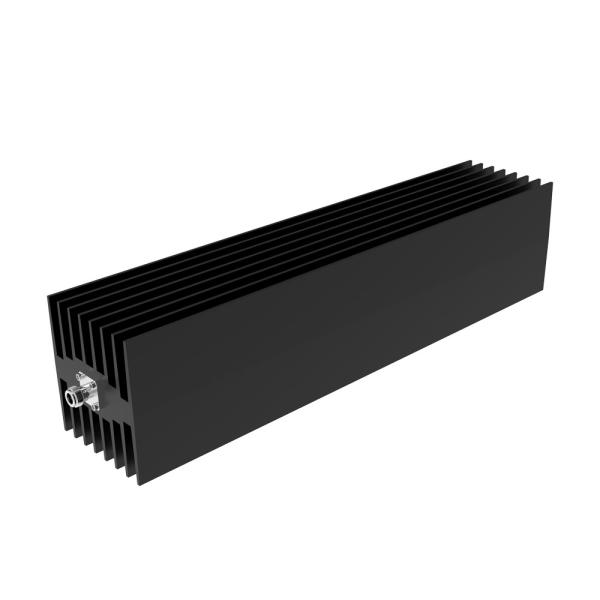

DC 18GHz 600W N Female N Female 10-60dB Adjustable RF Digital Attenuator
DC 18GHz 600W N Female N Female 10-60dB Adjustable RF Digital Attenuator
DC 18GHz 600W N Female N Female 10-60dB Adjustable RF Digital Attenuator
DC 18GHz 600W N Female N Female 10-60dB Adjustable RF Digital Attenuator
DC 18GHz 600W N Female N Female 10-60dB Adjustable RF Digital Attenuator
DC 18GHz 600W N Female N Female 10-60dB Adjustable RF Digital Attenuator
DC 18GHz 600W N Female N Female 10-60dB Adjustable RF Digital Attenuator
DC 18GHz 600W N Female N Female 10-60dB Adjustable RF Digital Attenuator
DC 18GHz 600W N Female N Female 10-60dB Adjustable RF Digital Attenuator
DC 18GHz 600W N Female N Female 10-60dB Adjustable RF Digital Attenuator
Specifications
Brand Name :
Vinncom
Model Number :
VN-AT-18G-600W-ONF
Certification :
RoHS/ISO9000
Place of Origin :
China
MOQ :
5pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
50pcs per day
Delivery Time :
2-4weeks
Packaging Details :
foam+box
Operating Frequency :
DC-18 GHZ
Impedance ( Ohm ) :
50
Application :
Indoor & Outdoor
Degree of Protection :
IP65
Handling Power (Watt, max) :
600W
Interface :
N Female - N Female
Description

DC-18GHz 600W N Female-N Female 10-60dB RF Attenuator

Part Number VN-AT-18G-600W-ONF
Operating Frequency DC-18 GHZ
Impedance ( Ohm ) 50
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt, max) 600W
Interface N Female - N Female
FOperating Temperature ( ℃ ) -40 ~ + 80
Attenuation(dB) 10 20 30 40 50 60 VSWR
DC-4GHz -0.6/+1.5 ±1.2 ±1.0 ±1.0 ±1.0 ±1.0 ≤1.25
DC-8GHz -0.5/+2.0 ±2.0 ±1.5 ±1.1 ±1.1 ±1.1 ≤1.30
DC-12.4GHz ±3.0 ±2.0 -1.5/+2.0 ±1.2 ±1.2 ±1.2 ≤1.35
DC-18GHz ±6.0 ±5.0 0/+6.0 ±1.5 ±1.5 ±1.5 ≤1.50
Dimension (mm)(L×W×H, excl connector) 110*120*509mm

DC 18GHz 600W N Female N Female 10-60dB Adjustable RF Digital AttenuatorDC 18GHz 600W N Female N Female 10-60dB Adjustable RF Digital Attenuator
