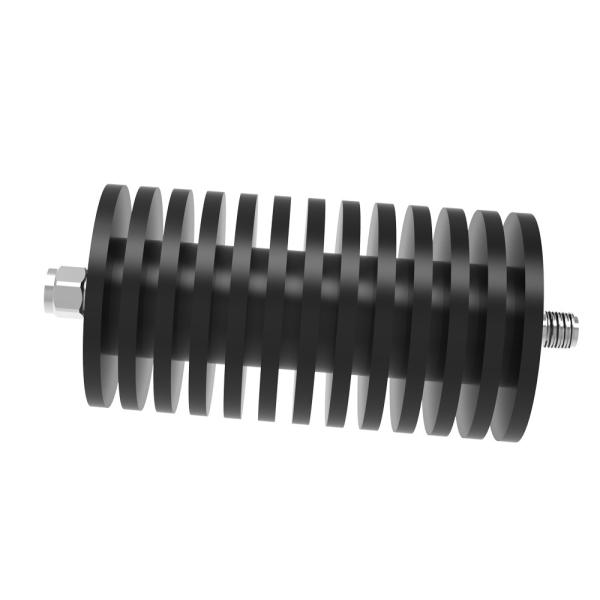

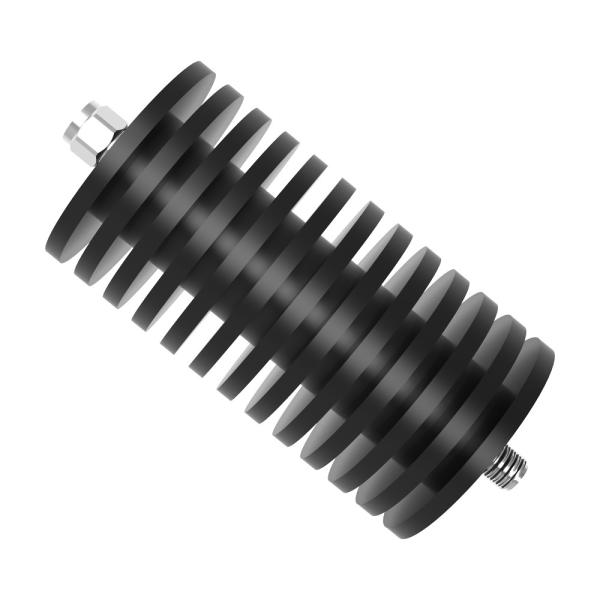

RoHS Outdoor DC-40GHz 20W 2.92mm Male Female 30dB Fixed RF Attenuator
RoHS Outdoor DC-40GHz 20W 2.92mm Male Female 30dB Fixed RF Attenuator
RoHS Outdoor DC-40GHz 20W 2.92mm Male Female 30dB Fixed RF Attenuator
RoHS Outdoor DC-40GHz 20W 2.92mm Male Female 30dB Fixed RF Attenuator
RoHS Outdoor DC-40GHz 20W 2.92mm Male Female 30dB Fixed RF Attenuator
RoHS Outdoor DC-40GHz 20W 2.92mm Male Female 30dB Fixed RF Attenuator
RoHS Outdoor DC-40GHz 20W 2.92mm Male Female 30dB Fixed RF Attenuator
RoHS Outdoor DC-40GHz 20W 2.92mm Male Female 30dB Fixed RF Attenuator
Specifications
Brand Name :
Vinncom
Model Number :
VN-AT-40G-20W-2.92mm
Certification :
ISO9000 RoHS
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
300pcs per day
Delivery Time :
depends on your quantity
Packaging Details :
box/carton
Operating Frequency :
DC-40 GHZ
Impedance ( Ohm ) :
50
Application :
Indoor & Outdoor
Degree of Protection :
IP65
Handling Power (Watt, max) :
20
Operating Temperature ( ℃ ) :
-55~+85℃
Description

DC-40GHz 20W 2.92mm Male-2.92mm Female 3 10 20 30 40dB Attenuator

Connector naming rules:

2 - 2.4mm (Outline A)

K - 2.92mm (Outline B, C, D)

Outline B - Attenuation: 10, 20, 30dB

Outine C - Attenuation: 3dB

Outine D - Attenuation: 40dB

Part Number VN-AT-40G-20W-2.92mm
Operating Frequency DC-40 GHZ
Impedance ( Ohm ) 50
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt, max)

20
Interface 2.92mm Male - 2.92mm Female 2.4mm Male - 2.4mm Female
Operating Temperature ( ℃ ) -55~+85℃
Attenuation(dB) 3,10 20 30 40 VSWR
DC~26.5 -1.0/+2.0 -1.0/+2.0 -1.0/+2.0 -1.0/+2.0 1.3
DC~32 -1.0/+2.0 -1.0/+2.0 -1.0/+2.0 -1.0/+2.0 1.4
DC~40 -1.5/+3.0 -1.0/+2.0 -1.0/+2.0 -1.0/+2.0 1.4
Dimension (mm), include connector) Φ38*Lmm
Net Weight (g)
Packing Dimensions (mm,L×W×H)
Packing Carton Size (mm,L×W×H)
ROHS Compliance Yes
Revision R1
Date 16-Feb-2021
