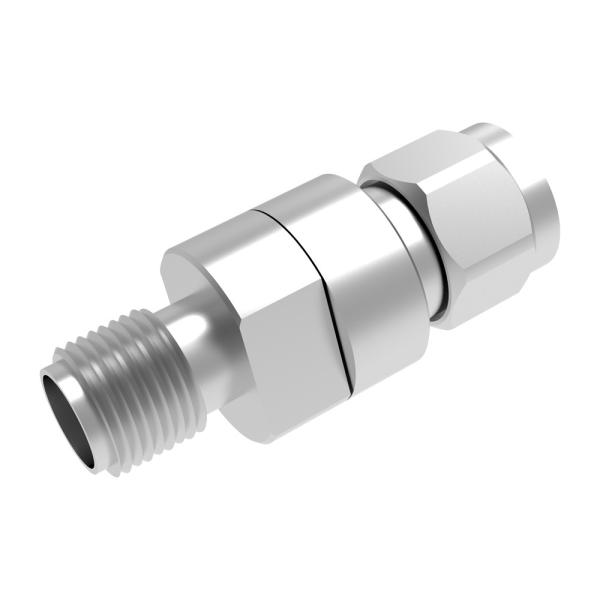

DC 50GHz 2W 2.4mm Male 2.4mm Female 60db Radio Attenuator
DC 50GHz 2W 2.4mm Male 2.4mm Female 60db Radio Attenuator
DC 50GHz 2W 2.4mm Male 2.4mm Female 60db Radio Attenuator
DC 50GHz 2W 2.4mm Male 2.4mm Female 60db Radio Attenuator
DC 50GHz 2W 2.4mm Male 2.4mm Female 60db Radio Attenuator
DC 50GHz 2W 2.4mm Male 2.4mm Female 60db Radio Attenuator
DC 50GHz 2W 2.4mm Male 2.4mm Female 60db Radio Attenuator
DC 50GHz 2W 2.4mm Male 2.4mm Female 60db Radio Attenuator
Specifications
Brand Name :
Vinncom
Model Number :
VN-AT-50G-2W-2.4mm
Certification :
ISO9000 RoHS
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
300pcs per day
Delivery Time :
depends on your quantity
Packaging Details :
box/carton
Operating Frequency :
DC-50 GHZ
VSWR :
≦1.25
Impedance ( Ohm ) :
50
Application :
Indoor & Outdoor
Handling Power (Watt, max) :
2W
Interface :
2.4mm Male-2.4mm Female
Description

DC-50GHz 2W 2.4mm Male-2.4mm Female xdB Attenuator

Part Number VN-AT-50G-2W-2.4mm
Operating Frequency DC-50 GHZ
VSWR ≦1.25
Impedance ( Ohm ) 50
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt, max) 2W
Interface 2.4mm Male-2.4mm Female
Operating Temperature ( ℃ ) -55~+125℃
Attenuation(dB) 0-60
Attenuation Accuracy

±0.6dB@0dB attenuation ±1dB@1~30dB attenuation

±2dB@40~60dB attenuation
Dimension (mm)(L×W×H, include connector) Φ8*24.64mm(0~30dB) Φ8*27.45(40~60dB)
Net Weight (g)
Packing Dimensions (mm,L×W×H)
Packing Carton Size (mm,L×W×H)
ROHS Compliance Yes

Revision R1

DC 50GHz 2W 2.4mm Male 2.4mm Female 60db Radio AttenuatorDC 50GHz 2W 2.4mm Male 2.4mm Female 60db Radio Attenuator
