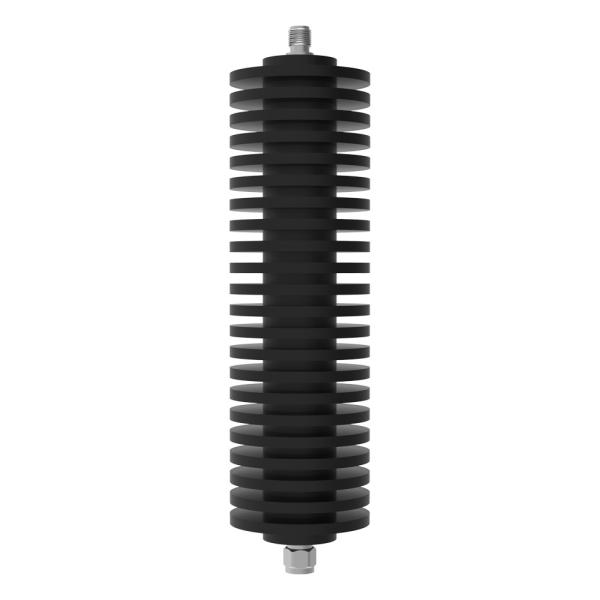

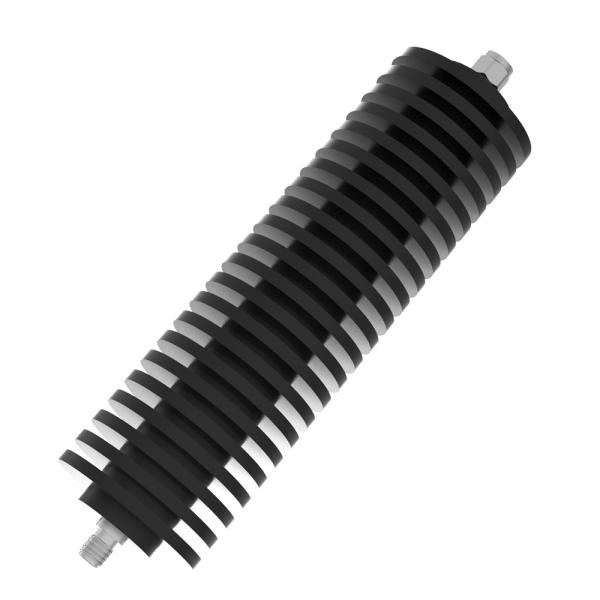

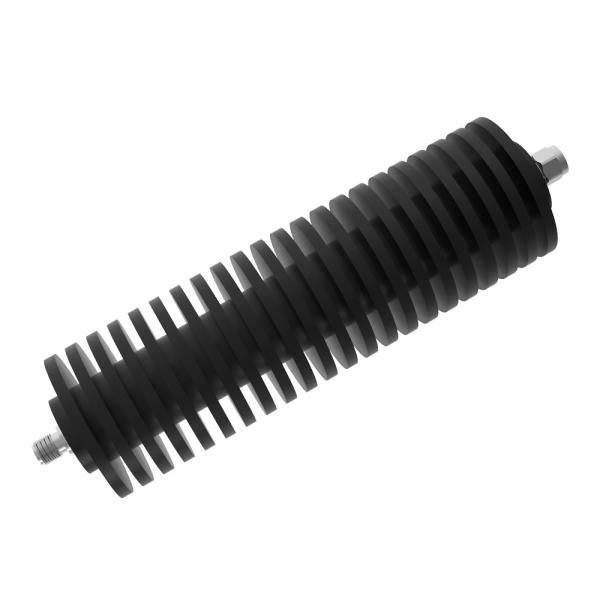

DC-40GHz 50W 2.92mm Male Female 40dB Fixed Coaxial Attenuator
DC-40GHz 50W 2.92mm Male Female 40dB Fixed Coaxial Attenuator
DC-40GHz 50W 2.92mm Male Female 40dB Fixed Coaxial Attenuator
DC-40GHz 50W 2.92mm Male Female 40dB Fixed Coaxial Attenuator
DC-40GHz 50W 2.92mm Male Female 40dB Fixed Coaxial Attenuator
DC-40GHz 50W 2.92mm Male Female 40dB Fixed Coaxial Attenuator
DC-40GHz 50W 2.92mm Male Female 40dB Fixed Coaxial Attenuator
DC-40GHz 50W 2.92mm Male Female 40dB Fixed Coaxial Attenuator
Specifications
Brand Name :
Vinncom
Model Number :
VN-AT-40G-50W-2.92mm
Certification :
RoHS ISO9000
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
300pcs per day
Delivery Time :
depends on your quantity
Packaging Details :
box/carton
Operating Frequency :
DC-40 GHZ
VSWR :
≦1.6
Impedance ( Ohm ) :
50
Application :
Indoor & Outdoor
Degree of Protection :
IP65
Interface :
2.92mm Male-2.92mm Female
Description

DC-40GHz 50W 2.92mm Male-2.92mm Female xdB Attenuator

Part Number VN-AT-40G-50W-2.92mm
Operating Frequency DC-40 GHZ
VSWR ≦1.6
Impedance ( Ohm ) 50
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt, max) 50W
Interface 2.92mm Male-2.92mm Female
Operating Temperature ( ℃ ) -55~+100℃
Attenuation(dB) 20 30 40
Attenuation Accuracy -3.0/+5.0dB (20dB) ±3.0dB (30, 40dB)
Dimension (mm)(L×W×H, include connector) Φ45*145mm
Net Weight (g)
Packing Dimensions (mm,L×W×H)
Packing Carton Size (mm,L×W×H)
ROHS Compliance Yes

Revision R1
Date 16-Feb-2021

DC-40GHz 50W 2.92mm Male Female 40dB Fixed Coaxial AttenuatorDC-40GHz 50W 2.92mm Male Female 40dB Fixed Coaxial Attenuator
DC-40GHz 50W 2.92mm Male Female 40dB Fixed Coaxial Attenuator
