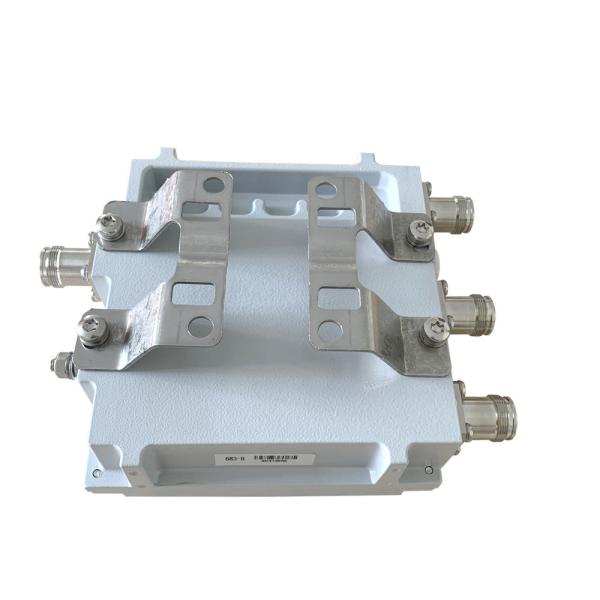

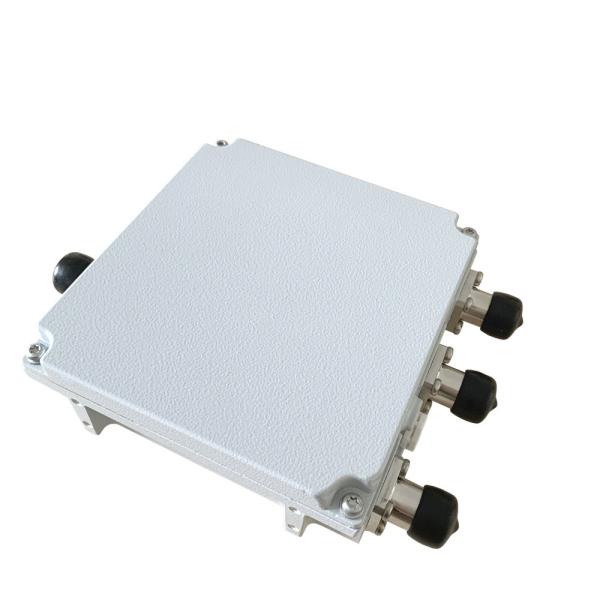

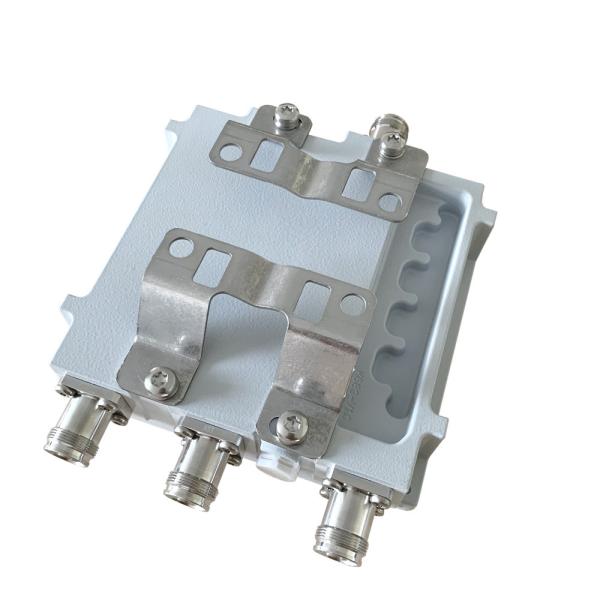

IP67 PIM 160dBc Tri Band Combiner With Female Connector 790-960MH
IP67 PIM 160dBc Tri Band Combiner With Female Connector 790-960MH
IP67 PIM 160dBc Tri Band Combiner With Female Connector 790-960MH
IP67 PIM 160dBc Tri Band Combiner With Female Connector 790-960MH
IP67 PIM 160dBc Tri Band Combiner With Female Connector 790-960MH
IP67 PIM 160dBc Tri Band Combiner With Female Connector 790-960MH
IP67 PIM 160dBc Tri Band Combiner With Female Connector 790-960MH
IP67 PIM 160dBc Tri Band Combiner With Female Connector 790-960MH
IP67 PIM 160dBc Tri Band Combiner With Female Connector 790-960MH
IP67 PIM 160dBc Tri Band Combiner With Female Connector 790-960MH
Specifications
Brand Name :
Vinncom
Model Number :
VN-TC-0827-OPF
Certification :
ISO9000 RoHS
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100pcs per day
Delivery Time :
depends on your quantity
Packaging Details :
box/carton
VSWR :
1.25
Insertion Loss (dB) :
0.2dB
Isolation :
50dB minimum
Power handling :
200W Average (Per Port) 1000W Peak
Inter-modulation (3rd order) :
-160dBc@2*43dBm
Impedance ( Ohm ) :
50
Description

790-960/1710-2170/2500-2690MHz Tri-band Combiner With 4.3-10 Female Connector

Part Number VN-TC-0827-OPF
Operating Frequency ( MHz )

CH1: 790 to 960MHz CH2: 1710 to 2170MHz CH4: 2300 to 2690MHz
VSWR £1.25
Insertion Loss (dB) £0.2dB
Isolation 50dB minimum
Power handling 200W Average (Per Port) 1000W Peak
Inter-modulation (3rd order) £-160dBc@2*43dBm
Impedance ( Ohm ) 50
Operating temperature range -10°C to +50°C
Storage temperature range -40°C to +85°C
Relative humidity 5% - 95%

Applications

IP67 (Indoor & Outdoor)
Color Light-Grey
Connectors type 4.3-10 Min-DIN-Female

IP67 PIM 160dBc Tri Band Combiner With Female Connector 790-960MH
IP67 PIM 160dBc Tri Band Combiner With Female Connector 790-960MH
IP67 PIM 160dBc Tri Band Combiner With Female Connector 790-960MH
IP67 PIM 160dBc Tri Band Combiner With Female Connector 790-960MH
IP67 PIM 160dBc Tri Band Combiner With Female Connector 790-960MH
Delivery
IP67 PIM 160dBc Tri Band Combiner With Female Connector 790-960MH
FAQ
Q:Could you supply the sample for me to test first?
A:New clients are expected to pay for courier cost and sample cost,we can make samples according to your need.

Q.What is your delivery time?
A: This depends on what kind of products you ordered,delivery time may within 20-30 DAYS

Q.Can you do OEM or ODM?
A: Yes, OEM and ODM are welcomed.

Q.How does your factory do regarding quality control?
A1:In our factory, we have Specialized quality inspection personnel, they will check the products quality in each process;
A2: Skillful workers care every details in handling the producing and packing processes.

Q. What's your payment way?
1).We accept West Union/T T.
2).Payment must be made within 3 days of order.The terms of payment are negotiable.

Q. How about the shipping?
A: For small orders, we will send the goods by international Express like FedEx, DHL, TNT , UPS or EMS, usually it takes 5-7 work days to arrive. It is a little expensive. If the order quantity is large, we will ship by sea and arrival time depends on
different regions. If urgent, you could select transport by Air, but freight charge will be more expensive.

Q: What is the MOQ of your products?
A: It depends on different products.
Welcome to inquiry
