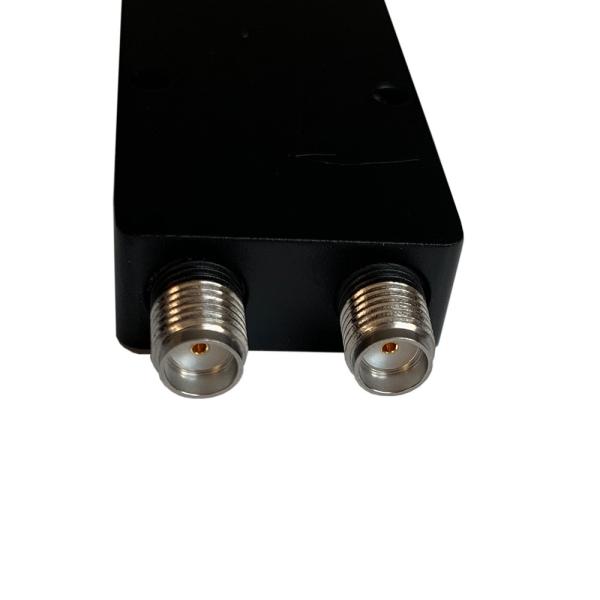

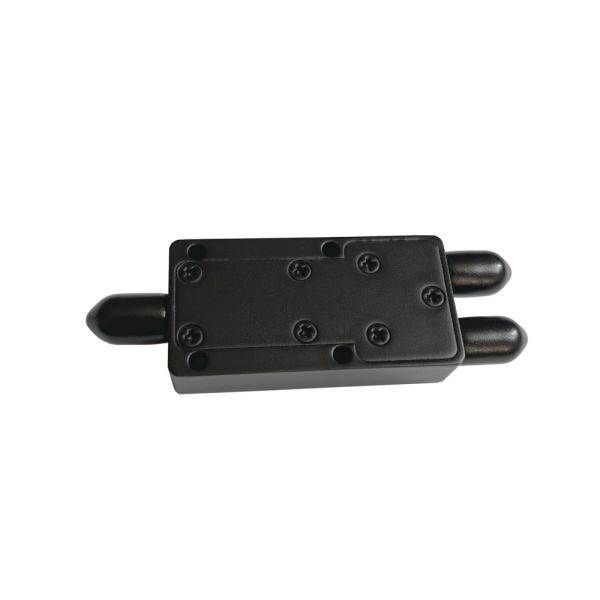

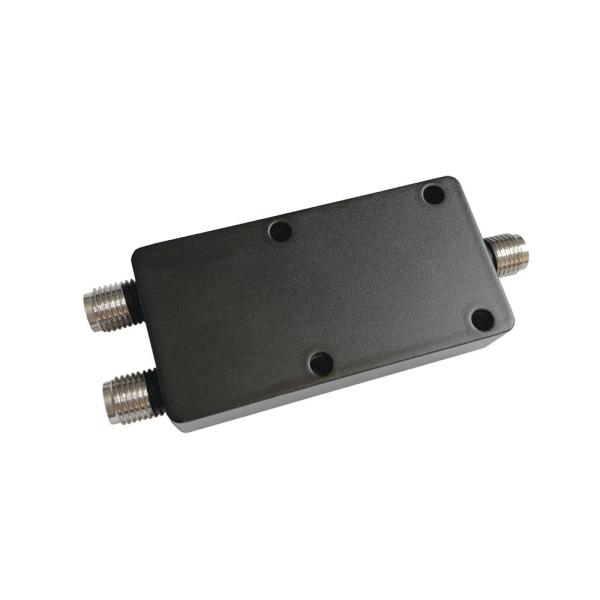

2000-18000MHz SMA Female Microwave Stripe 2 Way Power Divider Splitter
2000-18000MHz SMA Female Microwave Stripe 2 Way Power Divider Splitter
2000-18000MHz SMA Female Microwave Stripe 2 Way Power Divider Splitter
2000-18000MHz SMA Female Microwave Stripe 2 Way Power Divider Splitter
2000-18000MHz SMA Female Microwave Stripe 2 Way Power Divider Splitter
2000-18000MHz SMA Female Microwave Stripe 2 Way Power Divider Splitter
2000-18000MHz SMA Female Microwave Stripe 2 Way Power Divider Splitter
2000-18000MHz SMA Female Microwave Stripe 2 Way Power Divider Splitter
2000-18000MHz SMA Female Microwave Stripe 2 Way Power Divider Splitter
2000-18000MHz SMA Female Microwave Stripe 2 Way Power Divider Splitter
Specifications
Brand Name :
Vinncom
Model Number :
VN-PD-320180-OSF2
Certification :
ISO9000 RoHS
Place of Origin :
China
MOQ :
5pcs
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
200pcs per day
Delivery Time :
depends on your quantity
Packaging Details :
box/carton
Operating Frequency ( MHz ) :
3500-18000
Insertion Loss :
1dB max
Input VSWR :
1.4 max.
Output VSWR :
1.3 max
Isolation :
18dB min.
Amplitude Balance :
0.3dB max.
Phase Balance :
±4°
Impedance ( Ohm ) :
50
Description

2000-18000MHz SMA Female Microwave Stripe 2 Way Power Divider/Combiner

2000-18000MHz SMA Female Microwave Stripe 2 Way Power Divider Splitter

Part Number VN-PD-35180-OSF2
Operating Frequency ( MHz ) 3500-18000
Insertion Loss 1dB max
Input VSWR 1.4 max.
Output VSWR 1.3 max
Isolation 18dB min.
Amplitude Balance 0.3dB max.
Phase Balance ±4°
Impedance ( Ohm ) 50
Average Power 20W max./1W max. as combiner
Size 47*24*10mm
Weight 32g
Connectors SMA Female
Operation Temperature -45~+85℃

2000-18000MHz SMA Female Microwave Stripe 2 Way Power Divider Splitter

Our Company

2000-18000MHz SMA Female Microwave Stripe 2 Way Power Divider Splitter

Product Application

2000-18000MHz SMA Female Microwave Stripe 2 Way Power Divider Splitter

Package & Delivery

2000-18000MHz SMA Female Microwave Stripe 2 Way Power Divider Splitter

2000-18000MHz SMA Female Microwave Stripe 2 Way Power Divider Splitter

FAQ

Q:Could you supply the sample for me to test first?
A:We are honored to offer you samples. New clients are expected to pay for courier cost,we can make samples according to your need.

Q.What is your delivery time?
A: This depends on what kind of products you ordered. Like SMA, delivery time may within 20-30 DAYS

Q.Can you do OEM or ODM?
A: Yes, OEM and ODM are welcomed.

Q.How does your factory do regarding quality control?
A1:In our factory, we have Specialized quality inspection personnel, they will check the products quality in each process;
A2: Skillful workers care every details in handling the producing and packing processes.

Q. What's your payment way?
1).We accept West Union/T T.
2).Payment must be made within 3 days of order.The terms of payment are negotiable.

Q. How about the shipping?
A: For small orders, we will send the goods by international Express like FedEx, DHL, TNT , UPS or EMS, usually it takes 5-7 work days to arrive. It is a little expensive. If the order quantity is large, we will ship by sea and arrival time depends on
different regions. If urgent, you could select transport by Air, but freight charge will be more expensive.

Q: What is the MOQ of your products?
A: It depends on different products.
