EPC GEN2 Long Range RFID Reader Module Same Sized Antenna Reading Range 0.5m - 3m
EPC GEN2 Long Range RFID Reader Module Same Sized Antenna Reading Range 0.5m - 3m
EPC GEN2 Long Range RFID Reader Module Same Sized Antenna Reading Range 0.5m - 3m
EPC GEN2 Long Range RFID Reader Module Same Sized Antenna Reading Range 0.5m - 3m
EPC GEN2 Long Range RFID Reader Module Same Sized Antenna Reading Range 0.5m - 3m
EPC GEN2 Long Range RFID Reader Module Same Sized Antenna Reading Range 0.5m - 3m
EPC GEN2 Long Range RFID Reader Module Same Sized Antenna Reading Range 0.5m - 3m
EPC GEN2 Long Range RFID Reader Module Same Sized Antenna Reading Range 0.5m - 3m
Specifications
Brand Name :
Hawkvor
Model Number :
5163
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T
Delivery Time :
15 working days
Packaging Details :
Kraft paper package
Frequency :
902~928 MHz(FCC Part 15)/ 865.6～867.5 MHz(ETSI)/920~925MHz(China) and others
Protocal :
EPC C1 Gen2(ISO18000-6C)
RF power :
20~30DBm
Interface :
RS232（TTL）
API :
JAVA, .NET, C++
Reading range :
0.5m~3m
Price :
Negotiable
Description

Long Range RFID Reader Module with Same Sized Antenna Reading Range 0.5m - 3m EPC GEN2

Long Range RFID Reader Module Features:

Compact size

High sensibility

Compatible with EPC C1 Gen2(ISO18000-6C)

Long Range RFID Reader Module Specification:

Frequency:902~928 MHz(FCC Part 15)/ 865.6～867.5 MHz(ETSI)/920~925MHz(China)

/Other Regional Regulation

Supported Protocols :EPC C1 Gen2(ISO18000-6C)

RF Power :20~30DBm

Interface: RS232(TTL)

API: JAVA, .NET, C++

Read Range: 0.5m~3m

Supply Power: + 5 V/3A

Operating Temprature:-20°C~ + 70°C

Storage temprature: - 40 °C~ + 85°C

Long Range RFID Reader Module Type details:

Function

Model no.

RF POWER

(DBm)

Size(module)

(mm)

Size(expansion board)

(mm)
5163C1-20 20 40*40*8 50*50*8
5163C1-30 30 40*40*8 50*50*8
5163E1-20 20 40*40*8 50*50*8
5163E1-27 27 40*40*8 50*50*8
5163B1-30 30 40*40*8 50*50*8
Customized products available

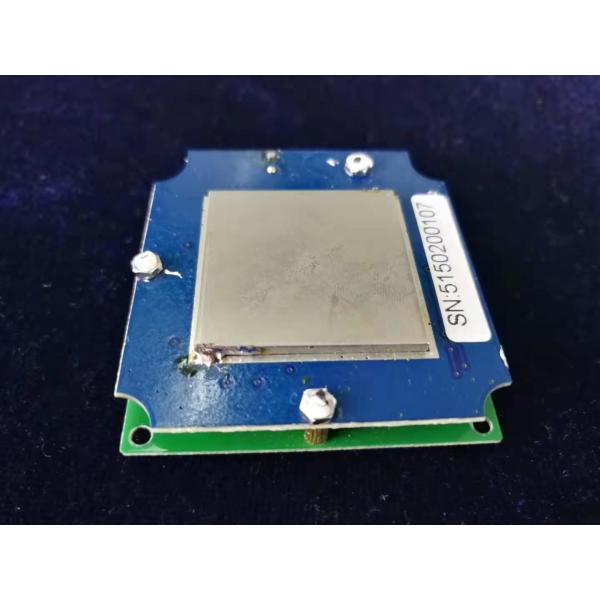

Hawkvor 5163 Long Range RFID Reader Module with Same Sized Antenna Reading Range 0.5m - 3m EPC GEN2 is a serie of mini UHF reading module, connect it with same sized antenna, we can get a reading range from 0.5m to 3m. It is normally used for production line management, handheld terminal and storage management etc.

EPC GEN2 Long Range RFID Reader Module Same Sized Antenna Reading Range 0.5m - 3m

EPC GEN2 Long Range RFID Reader Module Same Sized Antenna Reading Range 0.5m - 3m

EPC GEN2 Long Range RFID Reader Module Same Sized Antenna Reading Range 0.5m - 3m
