Specifications
Brand Name :
Hawkvor
Model Number :
5133B
Certification :
FCC, CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
15 working days
Packaging Details :
Kraft paper package
Reading range :
up to 12 meters
Interface :
Wiegand 26/34,RS232 or RS485
Frequency band :
902~928 MHz(FCC Part 15)/ 865.6～867.5 MHz(ETSI)/920~925MHz(China) or others
Color :
white
API :
JAVA, .NET, C++
Protection :
IP65
Description

Long Distance Passive UHF RFID Reader Wiegand Interface 902-928MHz ISO18000-6C protocal for Access Control

The Integrated UHF reader includes UHF read module, input/output interfaces, high performance antenna and LED indicator, this structure makes the product more stable and installation easier.

The reading range can be up to 12 meters even though the size is compact.

Long Distance Passive UHF RFID Reader Specification:

Frequency 902~928MHz(FCC Part 15);
865.6~867.6MHz(Eu) /other regional frequency band
Interfaces Wiegand 26/34,RS232 or RS485
Reading range Up to 12 meters
Supply power +10~+26V DC/3A
API JAVA, .NET, C++
RF power 20~30DBm
Protection IP65
Working Temperature -20 ~ +70°C
Storage Temperature -40 ~ +85°C
Dimmension 215*225*52 mm
Supported Protocols EPC C1 Gen2 (ISO18000-6C)
Humidity 0%~95% (non-condensing)
Net Weight 0.8KG
Gross Weight 1.8KG

Long Distance Passive UHF RFID Reader Firmware:

Functions

Type

 Mode Power adjustable Interface Trigger Mode Anti-PassBack Voice/light prompt on/off Second Development
5133B-Type 1 Read&Write Yes RS232 No No Yes Yes
5133B-Type 2 Read only Yes W26/W34/RS232/RS485 No Yes Yes No need

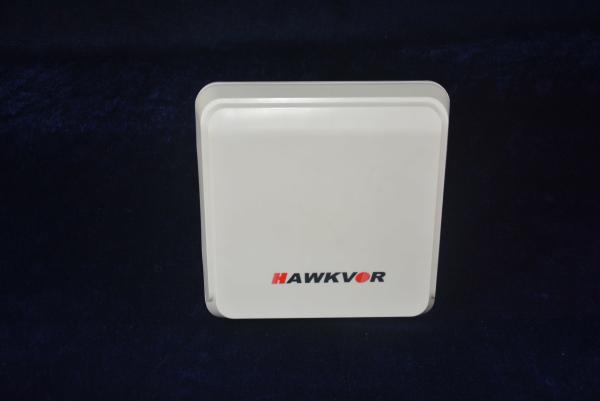

Hawkvor 5133B is a fully integrated compact sized UHF reader that specifically designed for applications in vehicle management, access control, warehouse management etc..

The read only design with Wiegand interface makes it easier to integrate to parking system or other access control system. RS232 and RS485 interfaces are optional if necessary.

Long Distance Passive UHF RFID Reader Features:

Fully integrated

Reading range : 12meters.

Easy installation: special scale design for easy installation

10 - 26 Volt DC 3A RS232 Rfid Reader For Long Distance Access Control

Humanity design:beep and light prompt

Stable performance:Large-scale application, The core modules has been widely used in the industrial environment for 10 years.

Compatible with EPC C1 Gen2(ISO18000-6C)

Long Distance Passive UHF RFID Reader Phisical Parameters:

Unit size: 215x 225 x 52 mm

Packing size: 240 x270x 100 mm

Packing: 1pc/ctn

NW: 0.78kg

GW: 1.8kg(with installation kit and package)

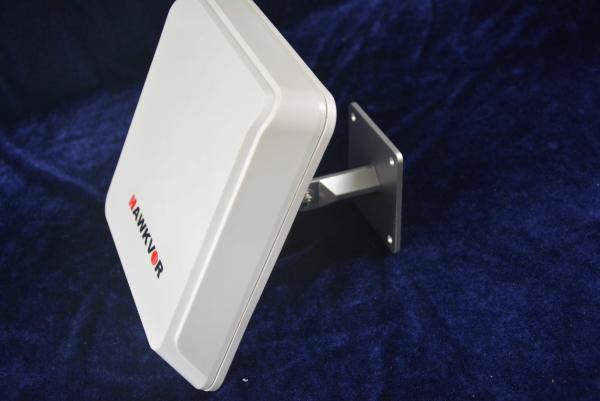

Installation: with professional installation kit

10 - 26 Volt DC 3A RS232 Rfid Reader For Long Distance Access Control

10 - 26 Volt DC 3A RS232 Rfid Reader For Long Distance Access Control

10 - 26 Volt DC 3A RS232 Rfid Reader For Long Distance Access Control

10 - 26 Volt DC 3A RS232 Rfid Reader For Long Distance Access Control
