Long Range Wiegand Interface RFID Tag Reader for Parking Management System

​UHF Tag Reader Firmware:

UHF Tag Reader Description:

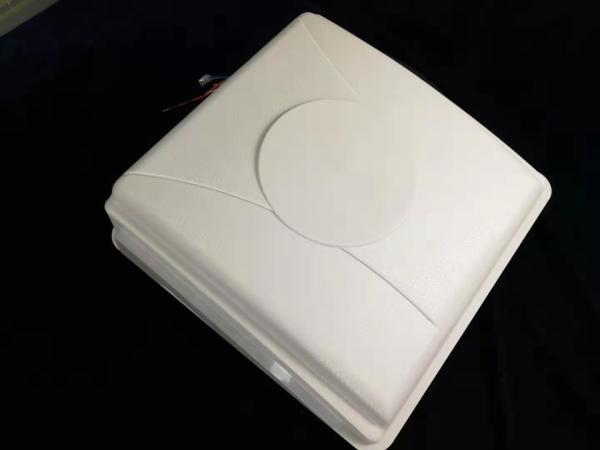

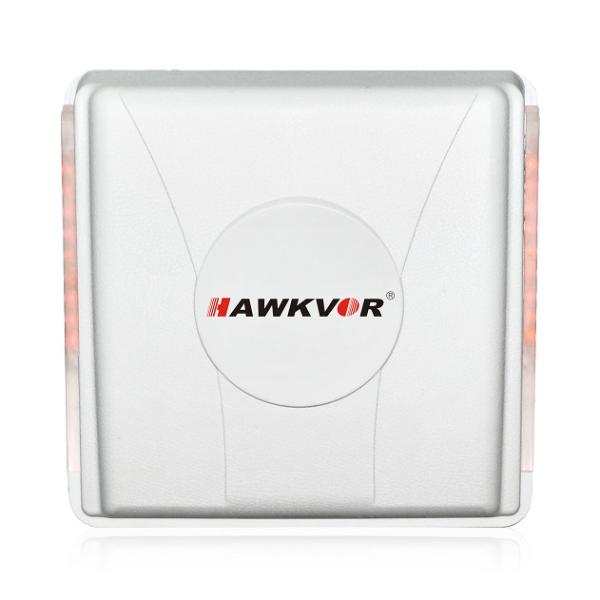

Hawkvor 5121B is a fully integrated UHF reader that specifically designed for vehicle access management, pedestrian access control, logistics management, asset management etc. .

The Integrated UHF reader includes UHF read module, input/output interfaces, high performance antenna and LED indicator, this structure makes the products more stable and installation easier.

The up-to-18 meters long reading range makes reading faster, and even the labels are installed behind wind-shield with explosion-proof film, they can still be read by HAWK5121B UHF reader.

The read only design with Wiegand interface makes it easier to integrate to parking system or other access control system. RS232 and RS485 interfaces are optional if necessary.

UHF Tag Reader Features:

Long reading range : up to 18 meters

Integrated structure:easy installation, easy use.

Humanity design:beep and light prompt

Stable performance:widely used in different areas, the core modules has been widely used in the industrial environment for 10 years.

Compatible with EPC C1 Gen2(ISO18000-6C)

Specification:

Frequency: 902~928MHz(FCC Part 15)/865.6～867.5 MHz(ETSI)/920~925MHz(China)

/Other Regional Regulation

Supported Protocols :EPC C1 Gen2(ISO18000-6C)

RF Power :20~30DBm

Interface: Wiegand 26/34,RS232 or RS485

API: JAVA, .NET, C++

Read Range: Max 18m ,Depending on tag

Supply Power: + 10~+ 26 V DC/3A

Operating Temperature:-20°C~ + 70°C

Storage temperature: - 40 °C~ + 85°C

Protection:IP65

Physical Parameters:

Unit size: 370 x 360 x 96 mm

Packing size: 430 x 420 x 190 mm

Packing: 1pc/ctn

NW: 2.75kg

GW: 4kg

Installation: with professional installation kit
