UHF RFID label LAB128(US)/LAB131(EU) , UHF RFID label for cosmetic Cosmetics , Health and Beauty , RFID MINI label

The Label is specially designed for use on small retail items in Cosmetics and Health &Beauty.Its small form factor is ideal for items that require RFID performance, but havelimited available surface space.

Key Features

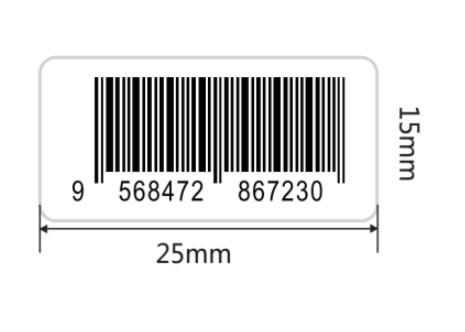

• • Compact size of just of 25mm x 15mm (0.87" x 0.47")

  • Designed specifically for small, non-metal items, including retail.

  • Stable performance

    Off metal read performance up to 3M utilizing the NFC 7 IC

  • Durable synthetic PET material

  Specifications
  Protocol	ISO/IEC 18000-6C & EPC global Class 1 Gen 2
  Chip	NFC 7
  Memory	EPC 128bits,USER 0bits,TID 96bits

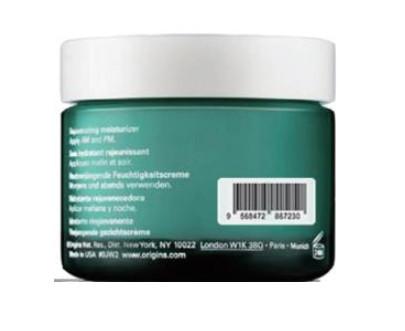

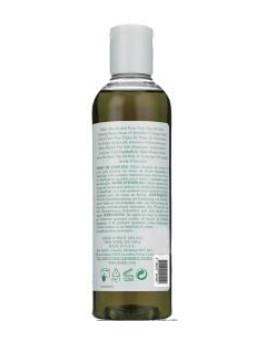

  Application	Cosmetics; glass bottle ;PMMA/ABS surface
  Read range	Up to 3 meter by fixed reader; Up to 1.5 meter by handheld reader
  Frequency	902~928( US)/865~868( EU)
  Label/We inlay Size	25*15mm
  Antenna Size	22*12mm
  Package	5000pcs/roll
  Surface paper	PET
  Storage temp	-20℃ to 60 ℃
  Operation temp	-20℃ to 60 ℃
  ESD	<=2KV
  Warranty	1 Year



• How to place an order?

  1) Provide your specific requirements and artwork with format of PDF or AI;
  2) Quotation;
  3) Confirm details and place the order;
  4) Our designer will make the bleed on your artwork or do a design according to your requirements;
  5) Send you the confirmation draft and a Proforma Invoice;
  6) Signed the confirmation draft and send it back, then make the payment;
  7) Start mass production after confirmation and payment;
  8) Production and Delivery, 7-15 working days ;

•
