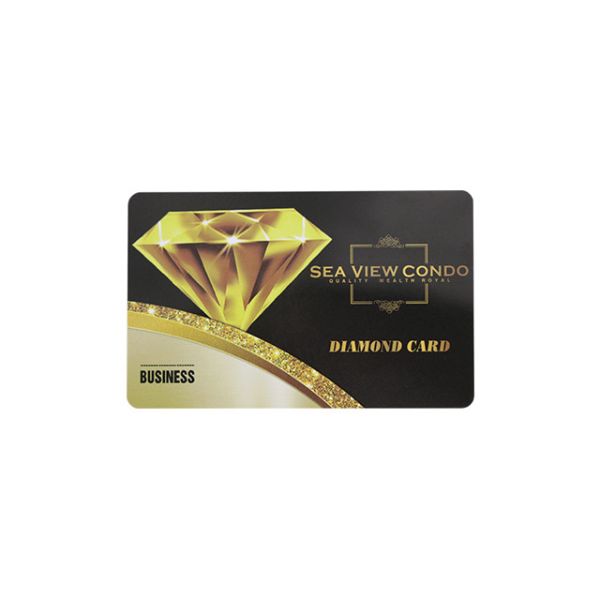

Lower price Fudan FM11RF08 compatible contactless S50 1k card ISO/IEC 14443 Type A

Based card features:

Material: PVC, PET, PETG

Size: standard 85.5*54 or die-cut customized size

Thickness: 0.82-1.8 mm

Print: 4/4 offset print; metallic (gold, silver etc) silkscreen print

Crafts: Magnetic strip, Signature panel, UV coat, hotstamp foil (gold, silver, green, red, etc), watermark, hologram, etc.

Personalization: Serial Number., Card Number, barcode, QR Code, name, photo, encoding, etc.

Finish: Glossy, Matt, Frosted

Chip Features:

1- RF interface
Compliant with ISO/IEC 14443-A
Contactless transmission of data and supply (no battery needed)
Operating frequency: 13.56MHz
Fast communication baud rate: 106Kbit/s
Contactless transmission of data and supply (no battery needed)
Operating distance: up to 100mm (depending on antenna geometry)
Half duplex communication protocol using handshake
Encryption algorithm compatible with M1 standard
Typical transaction time: ＜100ms

2- EEPROM
1024x8bit EEPROM memory
Organized in security separated 16 sectors supporting multi-application use.
User flexible defines assess conditions for each memory block.

3- High security
Mutual three pass authentication
High security level data communication
Each sector has its own two secret files for systems using key hierarchies.

4- Arithmetic capability: increase and decrease.

5- High Reliability
Endurance: 100,000cycle
Data Retention: 10 Years

6 - Memory organization

The 1024 x 8 bit EEPROM memory is organized in 16 sectors with 4 blocks of 16 bytes each. In the

erased state the EEPROM cells are read as a logical “0”, in the written state as a logical “1”

More Samples:

FAQ

Q1. Can I have a sample order for pvc cards?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A:Sample needs 3 to 5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for pvc card order?
Low MOQ, 500pcs are available
Q4. How do you ship the goods and how long does it take to arrive?
DHL, UPS, FedEx or TNT usually takes 4-6 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for pvc card?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or artwork proofs and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on pvc card product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer one year warranty to our products.
Q8: How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.3%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will replace and resend them to you or we can discuss the solution including re-call according to real situation.
