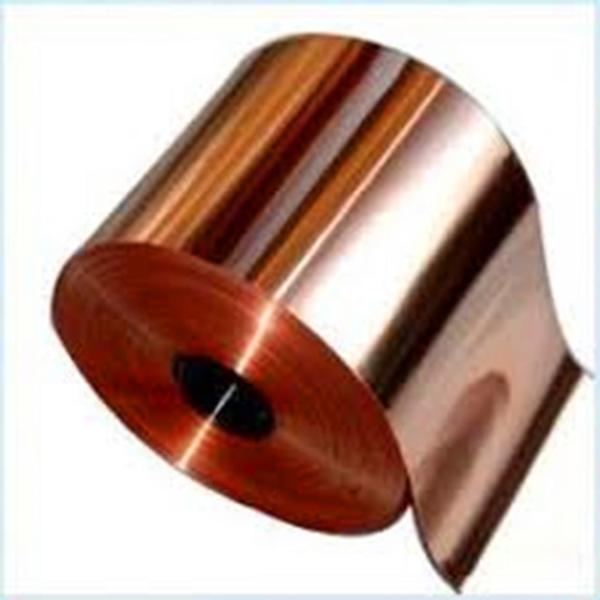

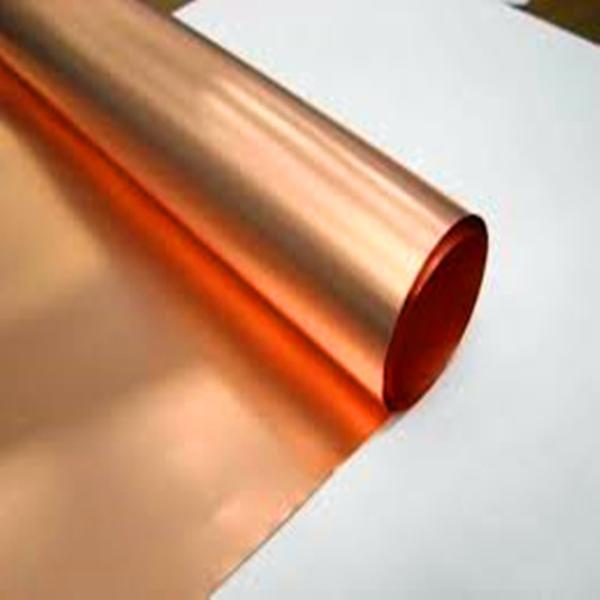

1295mm Rf Shielding Copper Foil 1oz 3oz 4oz 5oz high quality
1295mm Rf Shielding Copper Foil 1oz 3oz 4oz 5oz high quality
1295mm Rf Shielding Copper Foil 1oz 3oz 4oz 5oz high quality
1295mm Rf Shielding Copper Foil 1oz 3oz 4oz 5oz high quality
1295mm Rf Shielding Copper Foil 1oz 3oz 4oz 5oz high quality
1295mm Rf Shielding Copper Foil 1oz 3oz 4oz 5oz high quality
1295mm Rf Shielding Copper Foil 1oz 3oz 4oz 5oz high quality
1295mm Rf Shielding Copper Foil 1oz 3oz 4oz 5oz high quality
1295mm Rf Shielding Copper Foil 1oz 3oz 4oz 5oz high quality
1295mm Rf Shielding Copper Foil 1oz 3oz 4oz 5oz high quality
1295mm Rf Shielding Copper Foil 1oz 3oz 4oz 5oz high quality
1295mm Rf Shielding Copper Foil 1oz 3oz 4oz 5oz high quality
Specifications
Model Number :
neutral
Place of Origin :
China
Brand Name :
haozhuo
Supply Ability :
100000kg per week
Packaging Details :
wooden case
MOQ :
1000Kg
Price :
$10000
Certification :
CE RoHS
material :
99.8% Cu
width :
1295mm or customized
Package Type :
wooden case
thickness :
1oz 3oz 4oz 5oz
application :
rf shielding
lead time :
stock
moq :
1000Kg
RoHS :
yes
Description
Product Features
shielding ED copper foil
thickness 0.009--3mm, width 10-1380mm
easier to make a faraday cage, EMI room
generally 400-500kg/roll
Physical Properties
Density:8.9g/cm³
Electrical conductivity(20°C):min 90%IACS for annealed to temper 80%IACS for rolled to temper min
Thermal conductivity(20°C):390W/(m°C)
Elastic modulus:118000N/m
Softening temperature:≥380°C
Certification
meet the technical conditions GB/T 5187-2008 standards.
in accordance with ISO9001-2000 Quality system requirements

EMI RFI shielding copper tape strip, lightning copper tape

Product description:

1.The product structure is based on copper foil as the substrate, conductive acrylic adhesive as the adhesive, plus release paper.

2.Three-tier architecture is very suitable for cutter mold or the metal mold die-cutting, Can be flat cutter or round cutter to die-cutting.

3.The width of the product available from 3mm ~ 380mm. Standard length is 50m., also do 100m, 150m or longer, save customers the trouble of frequently reloading.

Product Properties:

Part Number Backing Material Thickness of Backing (mm) Total Thickness (mm) Holding Power Min/inch Adhesion Strength kg/25mm Adhesive Component Shield Efficacy 10MHz~ 1GHz (dB) Conductivity z-ohms Integrated thermal conductivity (W/mK)
XPH0M123 Copper Foil 0.012 0.030±0.01 ≥1440 >0.8 Acrylic ≥60 <0.03 60
XPH0M183 Copper Foil 0.018 0.050±0.005 ≥1440 >1.0 Acrylic ≥60 <0.03 60
XPH0M253 Copper Foil 0.025 0.06±0.005 ≥1440 >1.0 Acrylic ≥60 <0.03 80
XPH0M353 Copper Foil 0.035 0.070±0.005 ≥1440 >1.0 Acrylic ≥60 <0.03 90
XPH0M503 Copper Foil 0.050 0.085±0.005 ≥1440 >1.0 Acrylic ≥60 <0.03 110
XPH0M753 Copper Foil 0.075 0.11±0.01 ≥1440 >1.0 Acrylic ≥60 <0.03 130
XPH0MA03 Copper Foil 0.100 0.135±0.01 ≥1440 >1.0 Acrylic ≥60 <0.03 160
XPH0MA23 Copper Foil 0.125 0.15±0.015 ≥1440 >1.0 Acrylic ≥60 <0.03 170
XPH0MA53 Copper Foil 0.150 0.20±0.02 ≥1440 >1.0 Acrylic ≥60 <0.03

190

Product description
Name copper foil
Material 99.8% copper
Width standard 1350mm
Thickness standard 0.105mm(3oz),0.14mm(4oz)
Feature EMI shielding
Application faraday cage,MRI room

1295mm Rf Shielding Copper Foil 1oz 3oz 4oz 5oz high quality
