Specifications
Model Number :
HZ
Place of Origin :
Jiangsu, China
Brand Name :
haozhuo
Supply Ability :
1000 Meter/Meters per Week
Packaging Details :
carton
MOQ :
>=1 Meters
Price :
$5.00
Certification :
CE RoHS
Transfer Function :
Low Pass
Package Type :
Surface Mount
Nominal Center Frequency :
50
3dB Bandwidth :
10M
Insertion Loss :
100db
Input Impedance :
50
Stopband Attenuation :
100db
Length :
1.22m/pcs
Application :
RF door/MRI door/RF box
MOQ :
50m
Customized :
accept
Certificate :
RoHS
Size :
Custom Size
Color :
Requirement
Port :
shanghai
Description

EMI Shielding Foam Gasket For RF Room

Foam gasket with conductive adhesive tape

The main purpose of effective EMC Shielding is to prevent electromagnetic interference (EMI) or radio frequency interference (RFI) from impacting sensitive electronics. This is achieved by using a metallic screen to absorb the electromagnetic interference that is being transmitted through the air. The shield effect is based on a principle used in a Faraday cage – the metallic screen completely surrounds either the sensitive electronics or the transmitting electronics. The screen absorbs the transmitted signals, and causes a current within the body of the screen. This current is absorbed by a ground connection, or a virtual ground plane.

Product features for foam gasket with conductive adhesive tape

1. Compact conductive fibers, no sharp edges

2. Good elasticity and consistency

3. Conductive adhesive

4. Low surface contact resistance

5. Shielding performance will not reduce after 10,000 times friction

6. Thin section suitable for I/O and D- subminiature lining

7. Could be used to ground connection

Specification for foam gasket with conductive adhesive tape

Name foam gasket with conductive tape
Shielding effectiveness 60-80dB/30MHz-1GHz
Surface resistance <0.07ohms/sq inch
Permanent deformation < 10%
Temperature range -10~110°c
Flammability UL 94(HF-1)
Compression 30-50%

Application for foam gasket with conductive adhesive tape Widely used in electronic box,case,interior chassis, industrial equipment, notebook PC, mobile communication devices,medical equipment, RF door and MRI door etc.

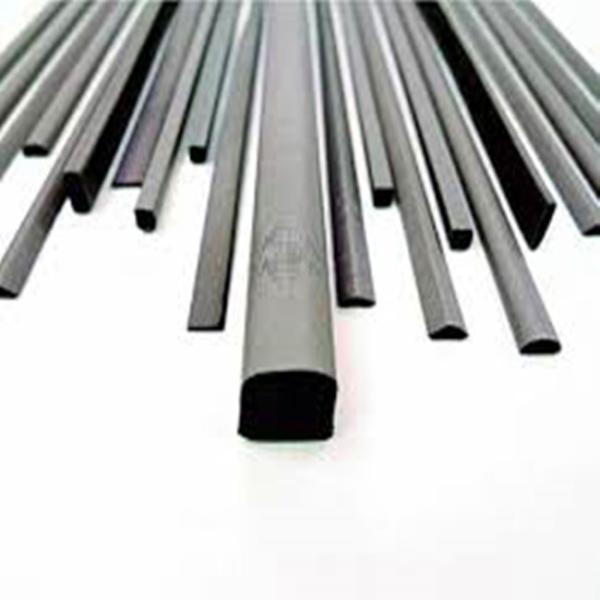

Type for foam gasket with conductive adhesive tape

  • “V” type
  • “D” type
  • Rectangle type
  • Customized accept

Other information for conductive foam gasket with adhesive

Foam gasket
MOQ 50M
Delivery time 5-7days
Payment Terms T/T, Paypal, Western Union
Longest dimension cut 1.22m/pcs
Place of region China
