12.5MM EMI Honeycomb Air Vents Filter Stainless Steel Honeycomb Ventilation Panels
12.5MM EMI Honeycomb Air Vents Filter Stainless Steel Honeycomb Ventilation Panels
12.5MM EMI Honeycomb Air Vents Filter Stainless Steel Honeycomb Ventilation Panels
12.5MM EMI Honeycomb Air Vents Filter Stainless Steel Honeycomb Ventilation Panels
12.5MM EMI Honeycomb Air Vents Filter Stainless Steel Honeycomb Ventilation Panels
12.5MM EMI Honeycomb Air Vents Filter Stainless Steel Honeycomb Ventilation Panels
12.5MM EMI Honeycomb Air Vents Filter Stainless Steel Honeycomb Ventilation Panels
12.5MM EMI Honeycomb Air Vents Filter Stainless Steel Honeycomb Ventilation Panels
12.5MM EMI Honeycomb Air Vents Filter Stainless Steel Honeycomb Ventilation Panels
12.5MM EMI Honeycomb Air Vents Filter Stainless Steel Honeycomb Ventilation Panels
12.5MM EMI Honeycomb Air Vents Filter Stainless Steel Honeycomb Ventilation Panels
12.5MM EMI Honeycomb Air Vents Filter Stainless Steel Honeycomb Ventilation Panels
Specifications
Model Number :
HZ
Place of Origin :
Jiangsu, China
Brand Name :
HZ
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
woonden case
MOQ :
>=1 Pieces
Price :
$100.00
Certification :
CE RoHS
Type :
RC Filter
Transfer Function :
Low Pass
Package Type :
Surface Mount
Nominal Center Frequency :
/
3dB Bandwidth :
/
Insertion Loss :
/
Input Impedance :
/
Stopband Attenuation :
/
honeycomb filter mertial :
brass/steel/Aluminum
honeycomb filter thickness :
12.5-25mm
honeycomb filter packing :
wooden packing
honeycomb filter standard thickness :
12.5mm, 19mm, 25mm
honeycomb filter frame :
customized
honeycomb filter size :
300*300 600*600
honeycomb filter Application :
rf shielding room
Port :
shanghai
Description

EMI RFI shield ventilation air filter for mri rf shielding stainless steel material

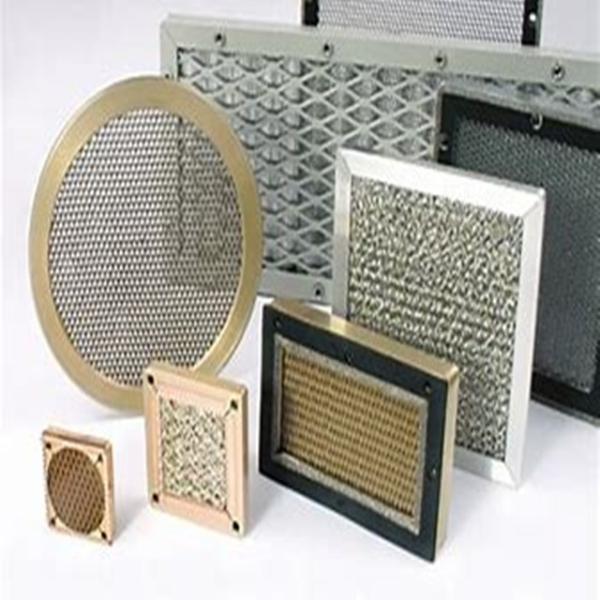

Honeycomb vents are used to shield openings for ventilation or acoustic/visual contact. We can make these vents according to your drawing within a few days, or you can use our standard range from stock.

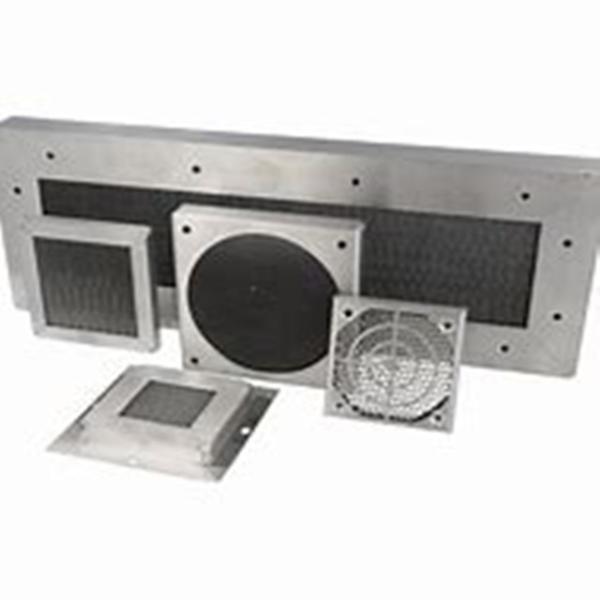

We can supply Honeycomb vents with frames, pre-drilled with fasteners, or with flow-drilled thread holes. The standard material is aluminium which can be given a nickel finish (or any other finish you choose).

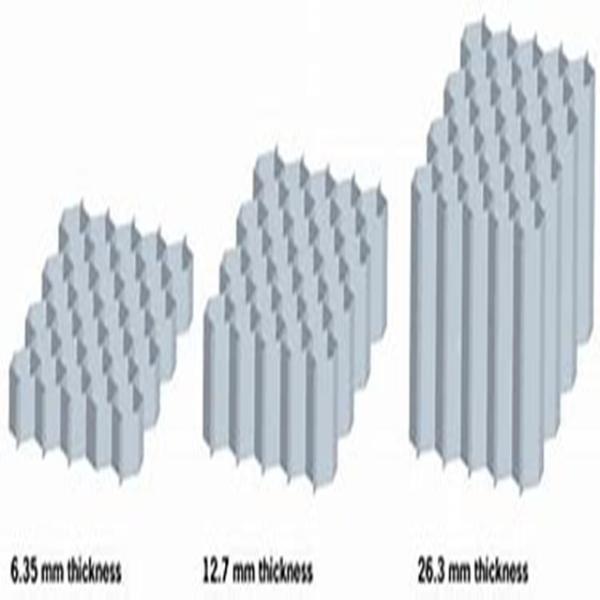

If high shielding levels are required, the use of cross-cell honeycombs is recommended. These are constructed from multiple sections of 6.35 mm or 12.7 mm or 26.3 mm thick honeycombs within a single frame. The shielding performance will improve as airflow is decreased, but not eliminated.

Features for honeycomb vent window for shielding room

1- Provide maximum RF attenuation while allowing optimum airflow.

2- Available to suit individual requirements

3- Soldering waveguide windows use imported tin-plating to press molding, to ensure the quality while transport and assembly process and guarantee the shielding effect.

4- Produce various customized specification for civil or military use

Standard Dimension for honeycomb vent window for shielding room

Honeycomb Materials

(A) Steel (B) Brass

(C) Stainless stee

(D) Aluminum

Honeycomb Size

(A) 300*300mm

(B) 300*600mm

(C) 450*450mm

(D) 600*600mm

(E) 600*900mm

Honeycomb Thickness

(A) 12.5mm

(B) 19mm

(C) 25mm

(D) 50mm

The Hole size

(A) 3.2mm

(B) 4.0mm

(C) 4.8mm

Frame Type

(A) With frame

(B) Without frame

Sheilding Performance for honeycomb vent window for shielding room

Magnetic field

14KHz≥75dB

150KHz≥100dB

Electric field

200KHz-50MHz≥110dB

Flat wave

50MHz-1GHz≥110dB

Microwave

1GHz-10GHz≥100dB
10GHz-18GHz≥90dB

12.5MM EMI Honeycomb Air Vents Filter Stainless Steel Honeycomb Ventilation Panels12.5MM EMI Honeycomb Air Vents Filter Stainless Steel Honeycomb Ventilation Panels
