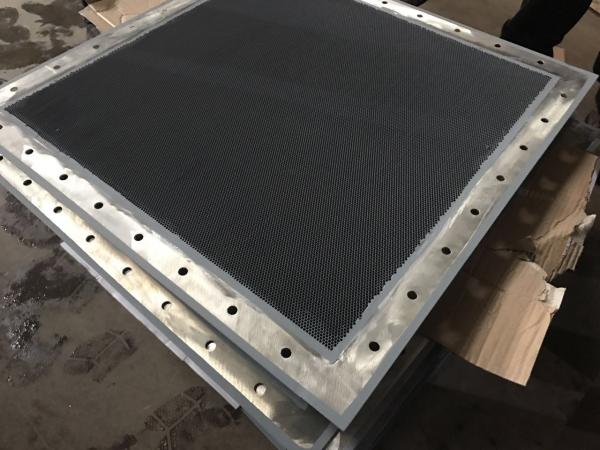

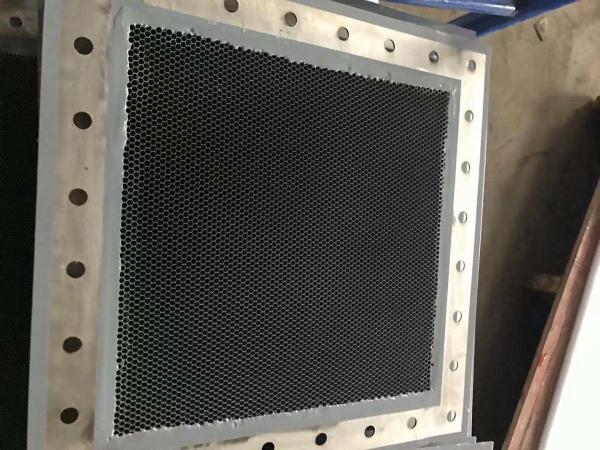

4.8mm 300x300Mm Steel EMI Honeycomb Air Vents Panel For Mrictxray Room
4.8mm 300x300Mm Steel EMI Honeycomb Air Vents Panel For Mrictxray Room
4.8mm 300x300Mm Steel EMI Honeycomb Air Vents Panel For Mrictxray Room
4.8mm 300x300Mm Steel EMI Honeycomb Air Vents Panel For Mrictxray Room
4.8mm 300x300Mm Steel EMI Honeycomb Air Vents Panel For Mrictxray Room
4.8mm 300x300Mm Steel EMI Honeycomb Air Vents Panel For Mrictxray Room
4.8mm 300x300Mm Steel EMI Honeycomb Air Vents Panel For Mrictxray Room
4.8mm 300x300Mm Steel EMI Honeycomb Air Vents Panel For Mrictxray Room
Specifications
Brand Name :
HAOZHUO
Model Number :
V SERIES
Certification :
CE RoHS
Place of Origin :
P.R.CHINA
MOQ :
1 PCS
Price :
USD 100 PER PCS
Supply Ability :
1000 PCS PER WEEK
Packaging Details :
CARTON
product :
HONEYCOMB VENT
honeycomb filter size: :
300x300x25
material :
steel
cell size :
4.8mm
frame :
have
surface treatment :
customized
thickness :
15mm 20mm 25mm
application :
rf shielding room
install way :
through wall
shielding effective :
100dB
Description

Steel Honeycomb Vent For Rf Shielding Room High Quality Cell Size 4.8mm

Options

  • Cross-cell honeycomb for extra high shielding performance
  • Slant honeycomb 30°, 45°, 60° for outdoor rainproof applications
  • 45° degrees is the most common implementation
  • Please note, slant honeycombs are available on request
  • Polyurethane filter for dust protection
  • Kick plate for mechanical protection
  • Stainless steel, mild steel or brass versions
  • Cell sizes 1.6mm, 3.2mm, 6.4mm, 9.5mm, 12.7mm, or 19mm (standard 3.2mm)
  • Gaskets for firm connections

Specifications

EMI Honeycomb filter
1. Material:Steel, brass,aluminum
2. W*L: 300x300mm, 300x600mm, 600x600mm
3. thickness: 12.5mm, 25mm, 19mm

Customized Brass/Steel/Aluminum Honeycomb

Brass/Steel/ Stainless steel honeycomb
1. Material:Steel, brass,stainless steel,aluminum
2. standard size: 300x300mm, 300x600mm
3. Standard cell size: 3.2/4.0/4.8mm

4. MOQ 1 piece

Product Features
Honeycomb filter use for shielding room and cabinet
Materials: Steel, brass, Aluminum, Stainless steel
The waveguide vent provides maximum RF attenuation while allowing optimum airflow
We can also produce various customized specification for civil or military use according to customer`s requirements.
High quality, Reasonable price and Short delivery, sample order accept
Technical Specifications
Honeycomb Standard Thickness(mm) 12.5mm/19mm/25mm/50mm
Honeycomb standard size 300x300/300x600/450x450/600x600mm
Hole size 3.2mm/4.0mm/4.8mm
The frame materials Brass, Steel, Stainless steel
MOQ 1PCS
Shielding Performance
Magnetic field 14KHz≥75dB 150KHz≥100dB
Electric field 200KHz-50MHz≥110dB
Flatwave 50MHz-1GHz≥110dB
Microwave

1GHz-10GHz≥100dB

10GHz-18GHz≥90dB
