Specifications
Model Number :
HZ
Place of Origin :
Jiangsu, China
Brand Name :
HZ
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
woonden case
MOQ :
>=1 Pieces
Price :
$100.00
Certification :
CE RoHS
Type :
RC Filter
Transfer Function :
Low Pass
Package Type :
Surface Mount
Nominal Center Frequency :
/
3dB Bandwidth :
/
Insertion Loss :
/
Input Impedance :
/
Stopband Attenuation :
/
honeycomb filter mertial :
brass/steel/Aluminum
honeycomb filter thickness :
12.5-25mm
honeycomb filter packing :
wooden packing
honeycomb filter standard thickness :
12.5mm, 19mm, 25mm
honeycomb filter frame :
customized
honeycomb filter size :
300*300 600*600
honeycomb filter Application :
rf shielding room
Port :
shanghai
Description

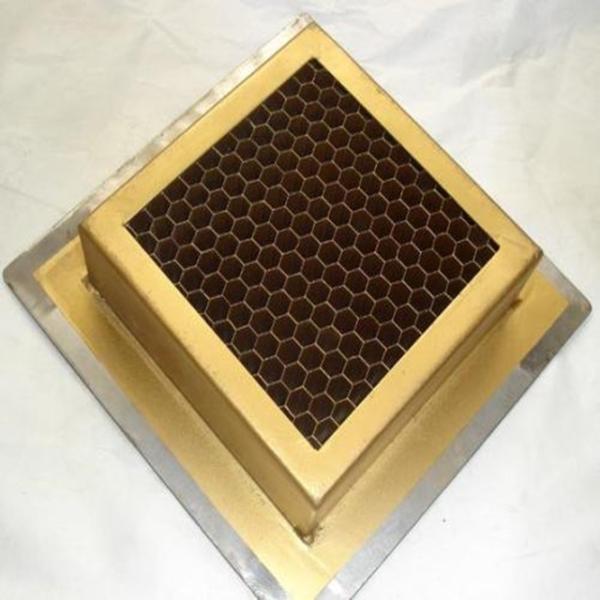

EMI RFI shield honeycomb ventilation air filter for faraday cage​

Contents Data Test Methods
Size A 300 ~ 630 mm ESQ-517-23
B 300 ~ 630 mm
T 25.4 mm (1 inch)
Cell Size 4.76 mm (3/16 inch) ESQ-517-23
Shielding Rate > 100 dB (@100KHz ~ 18GHz) IEEE-Std-299
Material Tin plated steel

Brass/Steel/ Stainless steel honeycomb
1. Material:Steel, brass,stainless steel,aluminum
2. standard size: 300x300mm, 300x600mm
3. Standard cell size: 3.2/4.0/4.8mm

4. MOQ 1 piece

Product Features
Honeycomb filter use for shielding room and cabinet
Materials: Steel, brass, Aluminum, Stainless steel
The waveguide vent provides maximum RF attenuation while allowing optimum airflow
We can also produce various customized specification for civil or military use according to customer`s requirements.
High quality, Reasonable price and Short delivery, sample order accept
Technical Specifications
Honeycomb Standard Thickness(mm) 12.5mm/19mm/25mm/50mm
Honeycomb standard size 300x300/300x600/450x450/600x600mm
Hole size 3.2mm/4.0mm/4.8mm
The frame materials Brass, Steel, Stainless steel
MOQ 1PCS
Shielding Performance
Magnetic field 14KHz≥75dB 150KHz≥100dB
Electric field 200KHz-50MHz≥110dB
Flatwave 50MHz-1GHz≥110dB
Microwave

1GHz-10GHz≥100dB

10GHz-18GHz≥90dB
