100VDC 250VAC 20A NOISE filter FOR POWER SUPPLY double stage

Single Phase EMI Power Line Filters reduce Electromagnetic Interference and noise conducting into and out onto equipment power lines for compliance with Commercial and Military emission and susceptibility standards. Premier Filters offers an extensive range of standard and custom Single-phase EMI Power Line Filters for all voltages and currents. Standard offerings are 300V and 80A.

EMI single-phase power filters rated from .5 to 60A suitable for use in controlling EMI emissions or susceptibility across a wide variety of applications. Available with a variety of terminal connection options.

Single Phase EMI Power Line Filters provide industry-leading performance through the utilization of innovations in materials and design to ensure compliance with the most stringent limits and requirements. In addition, our leading compact sizes allow space-saving installations for all equipment types. With single and multi-stage configurations designed in accordance with international safety standards, Premier Filters delivers the right solution on-time and under budget.

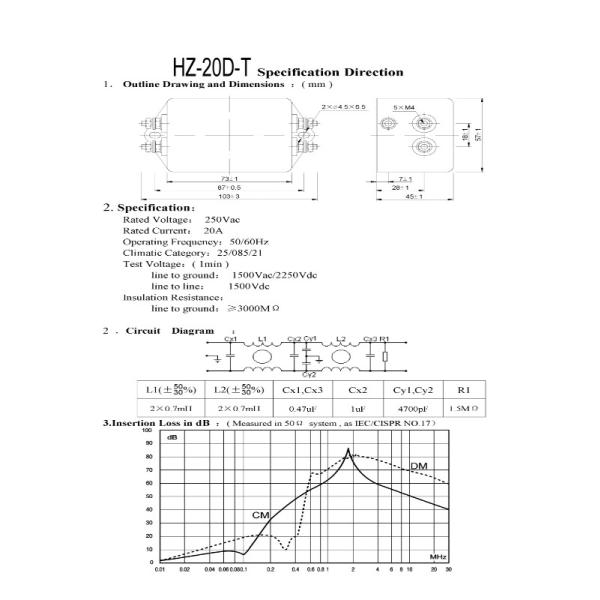

• Rated Voltage 25OVac
• Rated Current 20A
• Operating Frequency 50/60hz
• Climatic Category: 25/08521
• Test Voltage(1min); line to ground: 1500Vac/2500V dc; Line to line 1500Vdc
• Insulation Resistance: line to ground: ≥3000M Ω

High performance EMI filters
We offer superior performance in extended frequency ranges for critical applications

Enhanced performance power line filters
Enhanced performance EMI filters with enhanced performance across a wider frequency range or for use in switching mode power supplies.

General purpose power line filters
EMI power filters rated from .5 to 80A suitable for use in controlling EMI emissions or susceptibility across a wide variety of applications.

• Our technical team has more than 10 years’ experience in designing EMI filter. We know UL VDE CSA CE CQC etc safety standard very well.
• Our technical service team learn many kinds of test standard such as industrial application (IEC61800-3 for frequency inverter drive EN12015 for elevator EN55011 for ISM device etc) and military application (GJB151A GJB152A etc).We can solve EMI problem quickly effectively and low-costly.
• Our test equipment: LCR digital bridge/voltage proof tester/insulation resistance tester/spectrum analyzer/inductor tester/standard signal source/shield room/interference intensity tester etc
• Our product: EMI filter for general purpose/EMI filter for frequency inverter/EMI filter for shielding facility/EMI filter for military application
• Our advantage: high quality/high cost-effective/short lead time
• Our service: all products have two years guarantee
