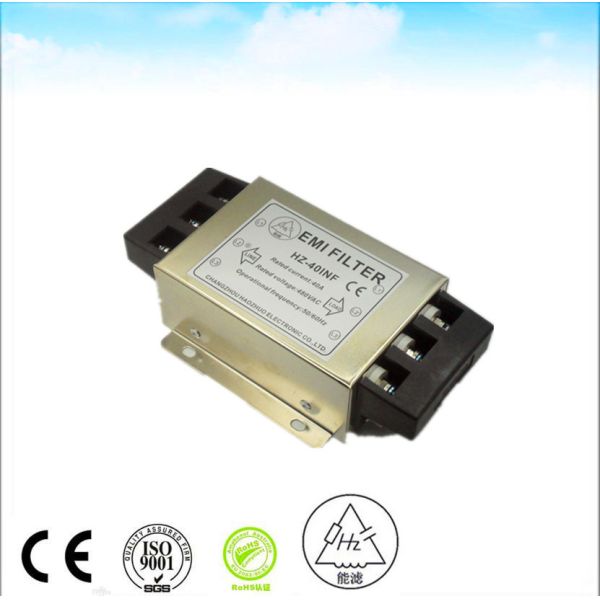

Power Supply 3 Phases Emi Suppression Filter Interference Suppression Filter dc ac
Power Supply 3 Phases Emi Suppression Filter Interference Suppression Filter dc ac
Power Supply 3 Phases Emi Suppression Filter Interference Suppression Filter dc ac
Power Supply 3 Phases Emi Suppression Filter Interference Suppression Filter dc ac
Power Supply 3 Phases Emi Suppression Filter Interference Suppression Filter dc ac
Power Supply 3 Phases Emi Suppression Filter Interference Suppression Filter dc ac
Power Supply 3 Phases Emi Suppression Filter Interference Suppression Filter dc ac
Power Supply 3 Phases Emi Suppression Filter Interference Suppression Filter dc ac
Power Supply 3 Phases Emi Suppression Filter Interference Suppression Filter dc ac
Power Supply 3 Phases Emi Suppression Filter Interference Suppression Filter dc ac
Power Supply 3 Phases Emi Suppression Filter Interference Suppression Filter dc ac
Power Supply 3 Phases Emi Suppression Filter Interference Suppression Filter dc ac
Specifications
Model Number :
HZ-30INF
Place of Origin :
China
Brand Name :
nenglv
Supply Ability :
100 Piece/Pieces per Week
Packaging Details :
10 pcs in one carton the gross weight is about 10Kg
MOQ :
>=1 Pieces
Price :
$45.00
Certification :
CE RoHS
Type :
EMI Filter
Transfer Function :
Low Pass
Package Type :
Throught Hole
Nominal Center Frequency :
50/60Hz
3dB Bandwidth :
14K
Insertion Loss :
100dB
Input Impedance :
50ohm
Stopband Attenuation :
100dB
Rated Voltage :
380VAC
Rated Current :
30A
Operating Frequency :
50/60Hz
Application :
POWER SUPPLY
Port :
shanghai
Description

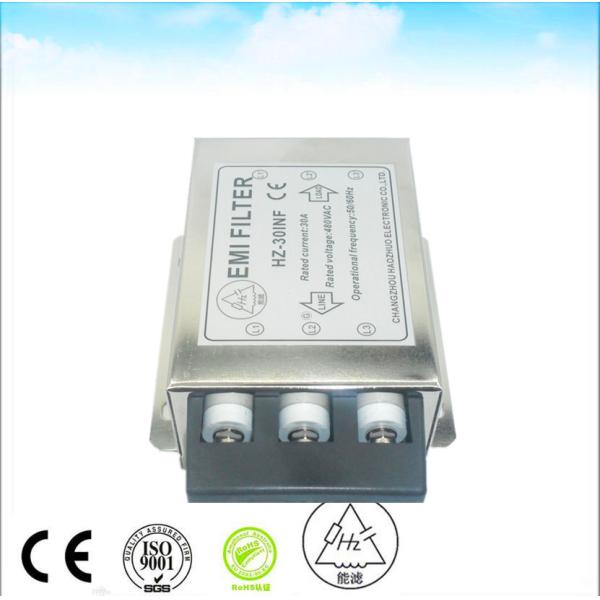

380Vac 30A inuput emi filter for 11KW frequency inverter
Reliable single-stage EMI power line filter for 3-phase 3-wire electrical equipment, rated current 50A, voltage rating to 380vAC, threaded stud connection and compact structure, high performance and favorable price.

FN258 EMI Filter for Three-Phase Inverters and Power Drive Systems

  • Industry standard EMC solution for three-phase PDS filtering
  • Slim space-saving book-style housing
  • Solid safety connector blocks or optional wire output connections
  • Excellent attenuation performance
  • HV versions for up to 690 VAC
  • HVIT versions for IT distribution networks
  • P/L versions with low leakage current

General Purpose EMI Filter for Three-Phase Applications

  • EMC solution for industrial inverters and motor drives
  • Rated currents from 8 to 280 A
  • Selectable voltage level of 440 V and 520 V
  • High differential and common-mode attenuation
  • Compliant with IEC 60950
AC/DC AC
Nominal Current Range (A) 30
Nominal Voltage range (V) 380Vac
Operating frequency 50/60Hz
Phase 3 Phase

Configuration 2 Stage
Rated Current @ 40℃ 30A
Rated Voltage 380vAC
Operating Frequency 50/60Hz
Phase Three Phase Three Wire
Leakage Current (250VAC 50Hz @ 20℃) ≤6.0mA
Filter Range 150KHz-30MHz
Hipot Rating (one minute) Line to Line: 2250V DC 3S
Line to Ground: 2700V DC 3S
Climatic Category 25/085/21
Working Tempearte -25°C~+85°C
Output Termainal Threaded stud
Weight 3.5kg
Dimension See below

Three phase EMC/EMI filters Application:

1. Inverter systems, PV (photovoltaic power system ), Wind power,
2. Industrial frequency converters and motor drives, machine tools,
3. UPS, SMPS
4. and other general purpose power equipment ,medical versions also available.

Company Information
  • We are a professional and famous EMI filter manufacturer.
  • Our technical team has more than 10 years’ experience in designing EMI filter. We know UL VDE CSA CE CQC etc safety standard very well.
  • Our technical service team learn many kinds of test standard such as industrial application (IEC61800-3 for frequency inverter drive EN12015 for elevator EN55011 for ISM device etc) and military application (GJB151A GJB152A etc).We can solve EMI problem quickly effectively and low-costly.
  • Our test equipment: LCR digital bridge/voltage proof tester/insulation resistance tester/spectrum analyzer/inductor tester/standard signal source/shield room/interference intensity tester etc
  • Our product: EMI filter for general purpose/EMI filter for frequency inverter/EMI filter for shielding facility/EMI filter for military application.
  • Our advantage: high quality/high cost-effective/short lead time
  • Our service: all products have two years guarantee
  • Our main customers: frequency inverter drive and servo drive system/MRI shielding system/solar inverter system/rail transit system
