CER-10 PCB Multilayer 25mil 0.635mm RF Taconic PCB Organic Ceramic Laminate
CER-10 PCB Multilayer 25mil 0.635mm RF Taconic PCB Organic Ceramic Laminate
CER-10 PCB Multilayer 25mil 0.635mm RF Taconic PCB Organic Ceramic Laminate
CER-10 PCB Multilayer 25mil 0.635mm RF Taconic PCB Organic Ceramic Laminate
Specifications
Brand Name :
Bicheng
Model Number :
BIC-094.V1.0
Certification :
UL, ISO9001, IATF16949
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
T/T
Supply Ability :
5000PCS per month
Delivery Time :
8-9 working days
Packaging Details :
Vacuum bags+Cartons
Base material :
Organic-ceramic Laminate based on Woven Glass Reinforcement.
Layer count :
Double Layer, Multilayer, Hybrid PCB
PCB thickness :
25mil (0.635mm), 30mil(0.762mm), 47mil(1.194mm), 50mil (1.27mm)
PCB size :
≤400mm X 500mm
Solder mask :
Green, Black, Blue, Yellow, Red etc.
Copper weight :
0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
Surface finish :
Bare copper, HASL, ENIG,Silver, Tin and OSP etc..
Description

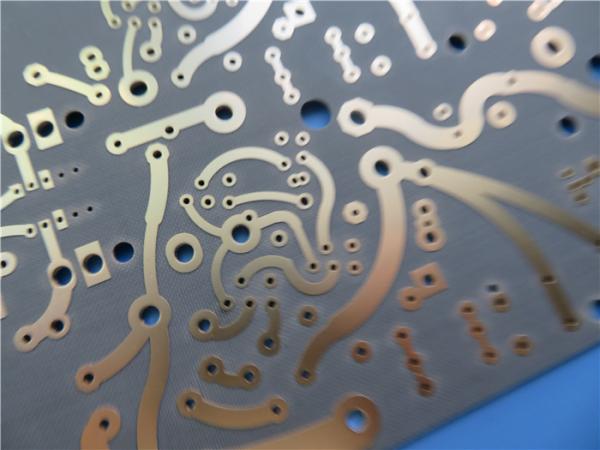

Taconic RF PCB on CER-10 with 25mil, 30mil, 47mil and 50mil

(PCB's are custom-made products, the picture and parameters shown are just for reference)

CER-10 is an organic-ceramic DK-10 laminate in the ORCER family of Taconic products. It is based on a woven glass reinforcement. CER-10 exhibits exceptional interlaminar bond strength and solder resistance. Its proprietary composition results in low moisture absorption and uniform electrical properties.

Benefits:

Exceptional Interlaminar Bond

Low moisture absorption

Enhanced dimensonal stability

Low Z-Axis expansion

Stable DK over frequency

Increased flexural strength

Circuit board miniturization

Applications:

Power amplifiers

Filters and couplers

Passive components

CER-10’s woven glass reinforcement ensures excellent dimensional stability and enhances flexural strength. This DK-10 laminate exhibits low Z-axis expansion (CTE 46 ppm/°C), allowing for plated-through-hole reliability in extreme thermal environments.

CER-10 laminates exhibit flammability of V-0 and are tested in accordance with IPC-TM 650. A certificate of conformance containing lot-specific data accompanies each shipment.

Our PCB Capability (CER-10)

PCB Material: Organic-ceramic Laminate based on Woven Glass Reinforcement.
Designation: CER-10
Dielectric constant: 10
Layer count: Double Layer, Multilayer, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness: 25mil (0.635mm), 30mil(0.762mm), 47mil(1.194mm), 50mil (1.27mm)
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG,Silver, Tin and OSP etc..

CER-10 PCB Multilayer 25mil 0.635mm RF Taconic PCB Organic Ceramic Laminate

Typical Value of CER-10

Property Test Method Unit Value Unit Value
Dielectric Constant (Nominal) IPC-TM-650 2.5.5.6 10 10
Dissipation Factor 10 GHz IPC-TM-650 2.5.5.5.1 0.0035 0.0035
Moisture Absorption IPC-TM-650 2.6.2.1 % 0.02 % 0.02
Dielectric Breakdown IPC-TM-650 2.5.6 kV 44 kV 44
Volume Resistivity IPC-TM-650 2.5.17.1 Mohm/cm 2.1 x 108 Mohm/cm 2.1 x 108
Surface Resistivity IPC-TM-650 2.5.17.1 Mohm 1.1 x 109 Mohm 1.1 x 109
Arc Resistance IPC-TM-650 2.5.1 Seconds >180 Seconds >180
Flexural Strength (MD) ASTM D 790 psi 16500 N/mm2 114
Flexural Strength (CD) ASTM D 790 psi 15500 N/mm2 107
Tensile Strength (MD) ASTM D 638 psi 7700 N/mm2 53
Tensile Strength (CD) ASTM D 3039 psi 6700 N/mm2 46
Peel Strength (1 oz. ED) IPC-TM-650 2.4.8 lbs/linear inch 9 N/mm 1.61
Dimensional Stability (MD) IPC-TM-650 2.4.39 in/in -0.0002 mm/mm -0.0002
Dimensional Stability (CD) IPC-TM-650 2.4.39 in/in -0.0003 mm/mm -0.0003
Density (Specific Gravity) g/cm3 3.05 g/cm3 3.05
Thermal Conductivity ASTM F 433 W/m/K 0.63 W/m/K 0.63
CTE (x-y) ASTM D 3386 (TMA) ppm/℃ 13-15 ppm/℃ 13-15
CTE (z) ASTM D 3386 (TMA) ppm/℃ 46 ppm/℃ 46
Outgassing (%TML) ASTM E 595 % 0.02 % 0.02
Outgassing (%CVCM) ASTM E 595 % 0.01 % 0.01
Outgassing (%WVR) ASTM E 595 % 0.01 % 0.01
Flammability Rating UL 94 V-0 V-0

CER-10 PCB Multilayer 25mil 0.635mm RF Taconic PCB Organic Ceramic Laminate
