Ultra Thin 0.6mm FR4 PCB Board 6 Layer With Blind Via
Ultra Thin 0.6mm FR4 PCB Board 6 Layer With Blind Via
Ultra Thin 0.6mm FR4 PCB Board 6 Layer With Blind Via
Ultra Thin 0.6mm FR4 PCB Board 6 Layer With Blind Via
Ultra Thin 0.6mm FR4 PCB Board 6 Layer With Blind Via
Ultra Thin 0.6mm FR4 PCB Board 6 Layer With Blind Via
Ultra Thin 0.6mm FR4 PCB Board 6 Layer With Blind Via
Ultra Thin 0.6mm FR4 PCB Board 6 Layer With Blind Via
Ultra Thin 0.6mm FR4 PCB Board 6 Layer With Blind Via
Ultra Thin 0.6mm FR4 PCB Board 6 Layer With Blind Via
Ultra Thin 0.6mm FR4 PCB Board 6 Layer With Blind Via
Ultra Thin 0.6mm FR4 PCB Board 6 Layer With Blind Via
Ultra Thin 0.6mm FR4 PCB Board 6 Layer With Blind Via
Ultra Thin 0.6mm FR4 PCB Board 6 Layer With Blind Via
Specifications
Brand Name :
Bicheng
Model Number :
BIC-496.V1.0
Certification :
UL, ISO9001, IATF16949
Place of Origin :
CHINA
MOQ :
1PCS
Price :
USD9.99-99.99
Payment Terms :
T/T
Supply Ability :
5000PCS per month
Delivery Time :
8-9 working days
Packaging Details :
Vacuum bags+Cartons
Base material :
FR-4
Layer count :
6 Layers
PCB thickness :
0.6mm ±0.1
PCB size :
100 x 103mm=1PCS
Solder mask :
Green
Silkscreen :
N/A
Copper weight :
Outer layer 35 um/ Inner layer 18 um
Surface finish :
Immersion gold
Description

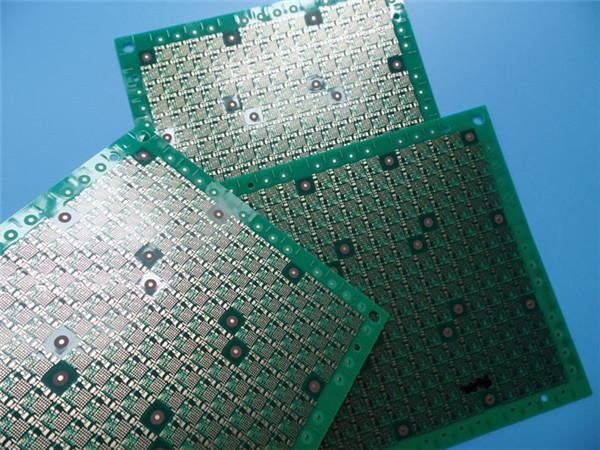

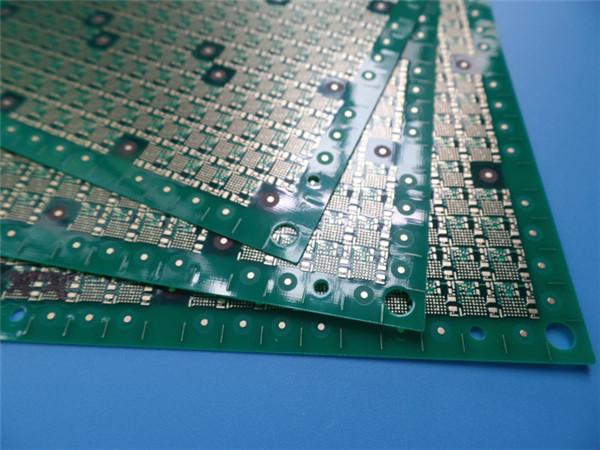

Ultrathin PCB Multilayer Thin PCB 6-layer Thin Printed Circuit Board 0.6mm FR-4 PWB With Blind Via for GPS Tracking
1.1 General description
This is a type of 6 layer ultrathin printed circuit board built on FR-4 substrate with Tg 135°C for the application of GPS Tracking. It's only 0.6 mm thick without silkscreen on green solder mask (Taiyo) and immersion gold on pads. The base material is from Taiwan ITEQ supplying 1 up PCB per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 50 panels are packed for shipment.
1.2 Features and benifits
RoHS compliant and suitable for thermal reliability needs
High solderability, no stressing of circuit boards and less contamination of PCB surface.
Comprehensive equipment management and maintenance and process control
Products and Manufacturing are certified by authorized organizations.
Small quantity order is accepted
Delivery on time: >98%
1.3 Applications
Portable WiFi Router
Commercial Led Lighting
File servers
Ultra Thin 0.6mm FR4 PCB Board 6 Layer With Blind Via
1.4 Parameter and data sheet
PCB SIZE 100 x 103mm=1PCS
BOARD TYPE Multilayer PCB
Number of Layers 6 layers
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 18um(0.5oz)+plate TOP CS
4mil prepreg
copper ------- 18um(0.5oz) GND Plane
4mil FR-4
copper ------- 18um(0.5oz) PWR Plane
4mil prepreg
copper ------- 18um(0.5oz) PWR Plane
4mil FR-4
copper ------- 18um(0.5oz) SIG
4mil prepreg
copper ------- 18um(0.5oz) BOT PS
TECHNOLOGY
Minimum Trace and Space: 3mil/3mil
Minimum / Maximum Holes: 0.22/3.50mm
Number of Different Holes: 25
Number of Drill Holes: 2315
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control no
BOARD MATERIAL
Glass Epoxy: FR-4, ITEQ IT140 TG>135, er<5.4
Final foil external: 1oz
Final foil internal: 0.5oz
Final height of PCB: 0.6mm ±0.1
PLATING AND COATING
Surface Finish Immersion gold 0.025µm over 3µm Nickel (14.4% area)
Solder Mask Apply To: TOP and Bottom, 12micron Minimum
Solder Mask Color: Green, TAIYO PSR-2000 GT600D
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend No silkscreen requried.
Colour of Component Legend No silkscreen requried.
Manufacturer Name or Logo: No silkscreen requried.
VIA Plated through hole(PTH), Blind via and via capping on CS and PS, vias not be visible.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.
Ultra Thin 0.6mm FR4 PCB Board 6 Layer With Blind Via
Product tags

pcb blind via

,

10 layer blind via pcb

,

2-layer bga pcb
