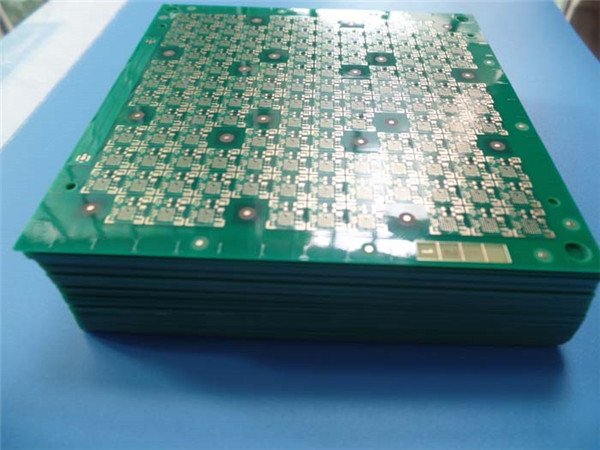

Ultathin PCB 4-Layer Thin PCB 0.4mm Multilayer FR-4 PCB With Immersion Gold for GPS Module
1.1 General description
This is a type of 4 layer printed circuit board built on FR-4 substrate with Tg 135°C for the application of GPS Module. It's only 0.4 mm thick with white silkscreen(Kuangshun) on green solder mask (Kuangshun) and immersion gold on pads. The base material is from Taiwan ITEQ supplying single PCB per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 50 boards are packed for shipment.
1.2 Features and benifits
It's suitable for handheld and consumer applications.
Long storage time ( It can be stored for more than 1 year in vacuum bag)
PCB manufacturing on required specifications.
Products and Manufacturing are certified by authorized organizations.
UL recognized and RoHS Directive-compliant
Quick turn-around samples
1.3 Applications
Satellite Broadband
Tracking Devices For Vehicles
Industrial controls
Ultathin PCB 4-Layer Thin PCB 0.4mm Multilayer FR-4 PCB With Immersion Gold for GPS Module
1.4 Parameter and data sheet
Item Requirement Result
Basic information Board type Multilayer PCB Multilayer PCB
Layer count 4 layers 4 layers
Board size 117 x 121mm=1UP 117 x 121mm=1UP
Laminate Type FR-4 FR-4
Supplier ITEQ ITEQ
Board thickness 0.4+/-10%mm 0.45mm
Outer copper foil >=35 ｕm 36.1
Inner copper foil 17um 17um
Warp-twist <= 0.75% 0.06%
Legend Type KUANG SHUN KUANG SHUN
Color White White
Location CS CS
Marking Co.logo As requirement OK
UL.logo As requirement OK
Date code As requirement OK
Marking form As requirement OK
Location NA
Min line width (mil) 7.8 7.6
Min line spacing (mil) 5.5 5.7
Min ring width (mil) NA NA
Solder Mask Type KUANG SHUN KUANG SHUN
Color Green Green
Thickness >=10 ｕm 13 ｕm
Pencil Test 6H OR ABOVE OK
SOLVENT TEST NO ATTACK OK
TAPE TEST NO PEEL OFF OK
Surface Treament ENIG OK
Special Treament Silk screen / /
Location / /
Forming V-cut OK
Normal Testing Electrical test 100% PCB passed OK
Visual inspection IPC-A-600H&IPC-6012C OK
Solderability Test 245℃ 5S 1 Cycle OK
Drill table (mm) 1 Y 0.300
2 N 1.000
3 N 3.100
Ultathin PCB 4-Layer Thin PCB 0.4mm Multilayer FR-4 PCB With Immersion Gold for GPS Module
