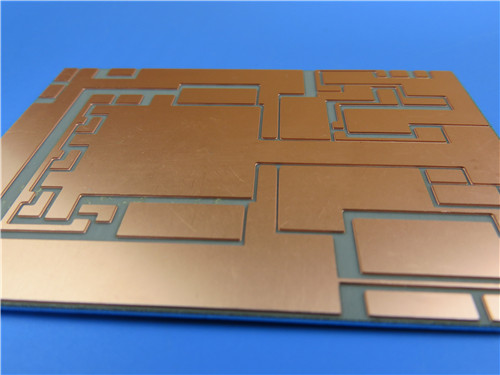

Aluminum Based 8oz Heavy Copper PCB OSP Surface Finish
Aluminum Based 8oz Heavy Copper PCB OSP Surface Finish
Aluminum Based 8oz Heavy Copper PCB OSP Surface Finish
Aluminum Based 8oz Heavy Copper PCB OSP Surface Finish
Specifications
Brand Name :
Bicheng
Model Number :
BIC-755.V1.0
Certification :
UL, ISO9001, IATF16949
Place of Origin :
CHINA
MOQ :
1PCS
Price :
USD9.99-99.99
Payment Terms :
T/T
Supply Ability :
5000PCS per month
Delivery Time :
8-9 working days
Packaging Details :
Vacuum bags+Cartons
Base material :
Aluminum 5052
Layer count :
1 Layer
PCB thickness :
1.2mm ±0.12
PCB size :
75 x 64mm=1PCS
Solder mask :
N/A
Silkscreen :
N/A
Copper weigth :
8oz
Surface finish :
OSP
Description
8oz Aluminum PCB Heavy Copper Aluminum Based PCB for High Power Electronics
1.1 General Description
This is a type of heavy copper PCB built on aluminum substrate with breakdown voltage 4000 VDC for the application of Large-current application. It's 1.2 mm thick without silkscreen and solder mask and a coating of OSP on pads. The base material is from Totking supplying single up PCB. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 panels are packed for shipment.
1.2 Parameter and Data Sheet
PCB SIZE 75 x 64mm=1PCS
BOARD TYPE Aluminum PCB, IMS PCB
Number of Layers Single sided PCB
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 280 um(8 oz)
1W/MK dielectric material
Aluminum 5052 0.8mm
TECHNOLOGY
Minimum Trace and Space: 70 mil / 70 mil
Minimum / Maximum Holes: N/A
Number of Different Holes: N/A
Number of Drill Holes: N/A
Thermal resistance(°C/W) ≤0.45
Breakdown Voltage(VDC) 4000
Impedance Control no
BOARD MATERIAL
Thermal conductivity 1W/MK dielectric material, MCPCB
Final foil external: 8 OZ
Final foil internal: 0 oz
Final height of PCB: 1.2mm ±0.12
PLATING AND COATING
Surface Finish OSP
Solder Mask Apply To: N/A
Solder Mask Color: N/A
Solder Mask Type: N/A
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend N/A
Colour of Component Legend N/A
Manufacturer Name or Logo: N/A
VIA no via
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.
Aluminum Based 8oz Heavy Copper PCB OSP Surface Finish
1.3 Features and Benefits
Optimization combination of power circuit and control circuit
Better heat dissipation of high heat generated by large current
PCB manufacturing is on required specifications.
Free-of-charge PCB panelization
1.4 Applications
Uninterrupted Power Supply
Battery Power Supply
Power Supply Components
Electric vehicle charging (commercial and industrial)
2000W Inverter
