Copper Based PCB Single Sided Copper PCB Insulated Metal Substrate PCB IMS PCB

1. General information

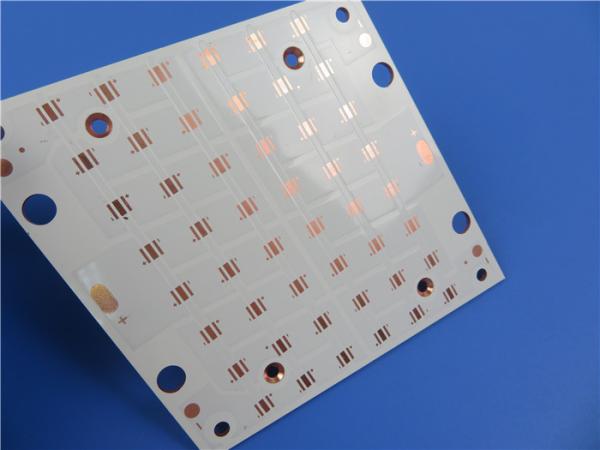

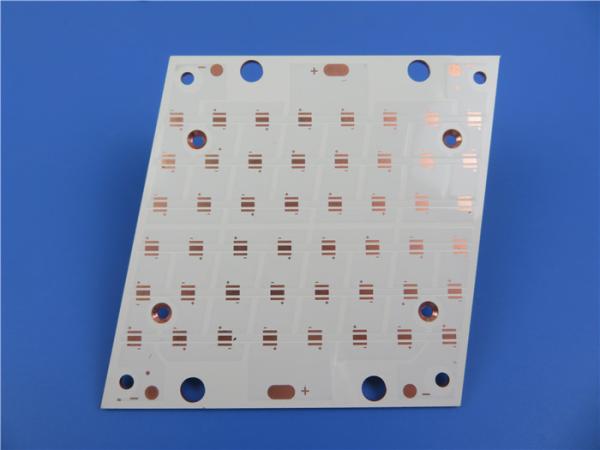

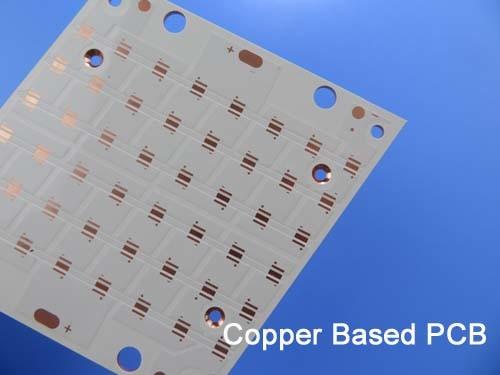

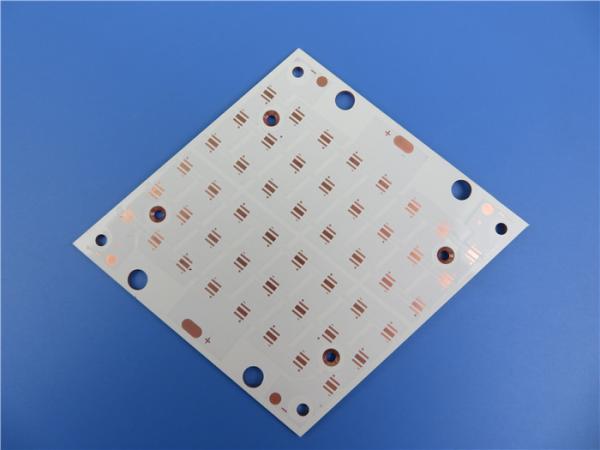

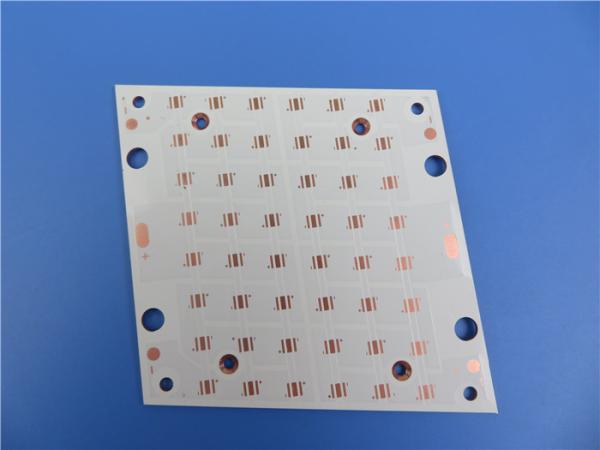

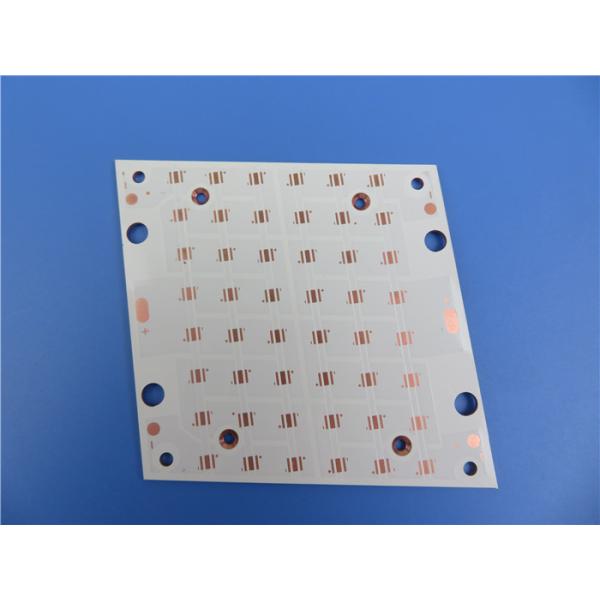

This is a type of metal core PCB built on copper base with 1W/MK dielectric. It's single sided copper PCB with 1.6mm thick, white solder mask and OSP on pads. There're 4 countersunk holes in board. Contours are CNC routed.

1.2 Data sheets

PCB SIZE 115 x 85mm=1PCS
BOARD TYPE Copper Based PCB, IMS PCB
Number of Layers Single sided PCB
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 35um(1oz)
1W/MK dielectric material
Copper Based
TECHNOLOGY
Minimum Trace and Space: 9 mil /9 mil
Minimum / Maximum Holes: 3.0 / 6.0 mm
Number of Different Holes: 3
Number of Drill Holes: 12
Thermal impedance(°C/W) 0.52 K·cm2/W
Breakdown Voltage(VDC) 5000
Impedance Control no
BOARD MATERIAL
Thermal conductivity 1W/MK dielectric material, MCPCB
Final foil external: 1oz
Final foil internal: 0oz
Final height of PCB: 1.6mm ±0.16
PLATING AND COATING
Surface Finish OSP
Solder Mask Apply To: Top. 12µm Minimum.
Solder Mask Color: White
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend N/A
Colour of Component Legend N/A
Manufacturer Name or Logo: N/A
VIA no via
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.

Insulated Metal Core PCB Single Sided Copper PCB With White Solder Mask

1.3 Copper PCB Extention
Copper core PCB is one of the most expensive metal substrates, and its thermal conductivity is many times better than that of aluminum and iron substrates. It is suitable for high frequency circuits, high and low temperature changing regions and the heat dissipation and building decoration industries of precision communication equipment.

The circuit layer of copper substrate is required to have a large current-carrying capacity, so a thick copper foil should be used, the thickness of which is generally 35 μm ~ 280 μm;

Thermal insulation layer is the core technology of copper substrate too. The core thermal conductivity is composed of aluminum trioxide and silicon powder and polymer filled with epoxy resin, the thermal resistance is low (0.15), viscoelasticity is excellent, and it has the ability to resist thermal aging. It is able to withstand mechanical and thermal stress.

Metal base is the support member of copper PCB. It is required to have high thermal conductivity, generally copper sheet is used because copper can provide better thermal conductivity, suitable for drilling, punching, shearing and cutting and other conventional machining.


1.4 Metal Core PCB Capability 2021

Metal Core PCB Capability
NO. Parameter Value
1 Type of Metal Core Aluminum, Copper, Iron
2 Model of Metal Core A1100, A5052, A6061, A6063, C1100
3 Surface Finish HASL, Immersion Gold, Immersion Silver, OSP
4 Thickness of Surface plating HASL: Sn>2.54µm, ENIG: Au 0.025-0.1µm, Ni 2.5-5µm
5 Layer Count 1-4 Layers
6 Maximum of Board Size 23" x 46" (584mm×1168mm)
7 Mininum of Board Size 0.1969" x 0.1969" (5mm×5mm)
8 Board Thickness 0.0157" x 0.2362" (0.4-6.0mm)
9 Copper Thickness 0.5OZ(17.5µm),1OZ(35µm),2OZ(70µm),3OZ(105µm),4OZ(140µm) to 10oz (350µm)
10 Minimum Track Width 5mil (0.127mm)
11 Minimum Space 5mil (0.127mm)
12 Minimum Hole Size 0.0197" (0.5mm)
13 Maximum Hole Size No limit
14 Minimum Holes Punched PCB thickness <1.0mm: 0.0394" (1.0mm)
PCB thikness 1.2-3.0mm: 0.0591" (1.5mm)
15 PTH Wall Thickness >20µm
16 Tolerance of PTH ±0.00295" (0.075mm)
17 Tolerance of NPTH ±0.00197" (0.05mm)
18 Deviation of Hole Position ±0.00394" (0.10mm)
19 Outline Tolerance Routing: ±0.00394" (0.1mm)
Punching: ±0.00591" (0.15mm)
20 Angle of V-cut 30°, 45°, 60°
21 V-cut Size 0.1969" x 47.24" (5mm×1200mm)
22 Thickness of V-cut Board 0.0236" x 0.1181" (0.6-3mm)
23 Tolerance of V-cut Angle ±5º
24 V-CUT Verticality ≤0.0059" (0.15mm)
25 Minimum Square Slots Punched PCB thickness < 1.0mm: 0.0315" x 0.0315" (0.8 x 0.8mm)
PCB thickness 1.2-3.0mm: 0.0394" x 0.0394" (1.0 x 1.0mm)
26 Minimum BGA PAD 0.01378" (0.35mm)
27 Minimum Width of Solder Mask Bridge. 8mil (0.2032mm)
28 Minimum Thickness of Solder Mask >13µm (0.013mm)
29 Insulation Resistance 1012ΩNormal
30 Peel-off Strength 2.2N/mm
31 Solder float 260℃ 3min
32 E-test Voltage 50-250V
33 Thermal Conductivity 0.8-8W/M.K
34 Warp or Twist ≤0.5%
35 Flammability FV-0
36 Minimum Height of Component indicator 0.0059"(0.15mm)
37 Minimum Open Solder Mask on Pad 0.000394" (0.01mm)


Insulated Metal Core PCB Single Sided Copper PCB With White Solder Mask
