High Reflection 1.2mm Metal Core PCB With White Solder Mask
High Reflection 1.2mm Metal Core PCB With White Solder Mask
High Reflection 1.2mm Metal Core PCB With White Solder Mask
High Reflection 1.2mm Metal Core PCB With White Solder Mask
High Reflection 1.2mm Metal Core PCB With White Solder Mask
High Reflection 1.2mm Metal Core PCB With White Solder Mask
High Reflection 1.2mm Metal Core PCB With White Solder Mask
High Reflection 1.2mm Metal Core PCB With White Solder Mask
High Reflection 1.2mm Metal Core PCB With White Solder Mask
High Reflection 1.2mm Metal Core PCB With White Solder Mask
Specifications
Brand Name :
Bicheng
Model Number :
BIC-764.V1.0
Certification :
UL, ISO9001, IATF16949
Place of Origin :
CHINA
MOQ :
1PCS
Price :
USD9.99-99.99
Payment Terms :
T/T
Supply Ability :
5000PCS per month
Delivery Time :
8-9 working days
Packaging Details :
Vacuum bags+Cartons
Base material :
1W/MK dielectric material
Layer count :
Single side
PCB thickness :
1.2mm ±0.12
PCB size :
130 x 50mm=10PCS
Solder mask :
white
Copper weight :
1oz
Surface finish :
ENIG
Description

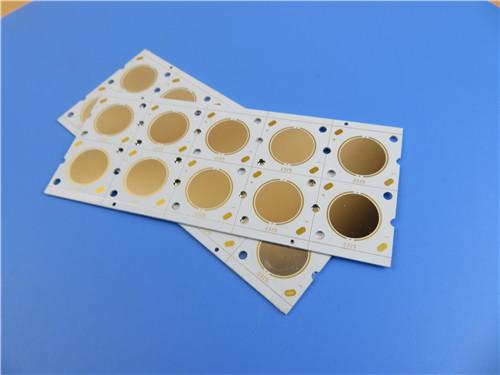

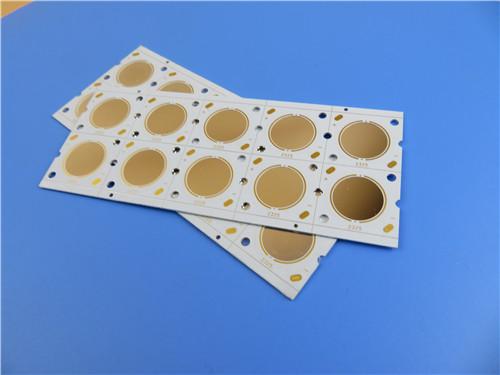

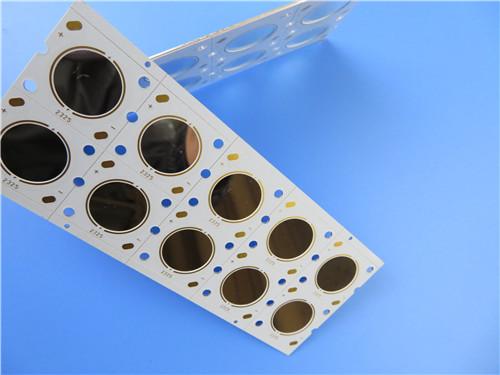

Mirror Aluminum PCB High Reflection Metal Core PCB for COB Package
(PCB’s are custom-made products, the picture and parameters shown are just for reference)
General description
This is a type of aluminum PCB for the application of Led Lighting. It's a single layer MCPCB board at 1.2 mm thick with 1 W/MK thermal conductivity. The aluminum plate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. 25 panels are packed for shipment.
Parameter and data sheet
PCB SIZE 130 x 50mm=10PCS
BOARD TYPE IMS PCB
Number of Layers Single sided PCB, Metal core PCB
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 35um(1oz)
1W/MK dielectric material 75um
Aluminum 5052 1.2mm
TECHNOLOGY
Minimum Trace and Space: 12mil/14mil
Minimum / Maximum Holes: 3.5mm/ 6.5mm
Number of Different Holes: 2
Number of Drill Holes: 4
Thermal resistance(°C/W) ≤0.45
Breakdown Voltage(VDC) 4000
Impedance Control no
BOARD MATERIAL
Thermal conductivity 1W/MK dielectric material, mirror reflection
Final foil external: 1oz
Final foil internal: 0oz
Final height of PCB: 1.2mm ±0.12
PLATING AND COATING
Surface Finish Electroless nickel over Immersion Gold (ENIG)( 1 µ" over 100 µ" nickel)
Solder Mask Apply To: Top. 12µm Minimum.
Solder Mask Color: White,PSR400 WT02
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend no silkscreen
Colour of Component Legend no silkscreen
Manufacturer Name or Logo: as per requirement
VIA no via
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.
Applications
All kinds of energy-saving LED lights
Rectifier bridge
Electro-mechanical
Dining room lighting
High Reflection 1.2mm Metal Core PCB With White Solder Mask
Mirror Aluminum PCB
The mirror aluminum PCB is a substrate which is pressed together with BT material circuit layer and aluminum substrate with silver particles. It is the most suitable raw material for COB packaging.
Advantages
Good heat dissipation: the mirror silver aluminum substrate adopts thermoelectric separation technology, and the thermal conductivity of ordinary aluminum PCB with insulating layer is 1W/MK to 3W/MK. The thermal conductivity of mirror aluminum PCB reaches higher 137W/MK, which greatly improves the heat dissipation of the chip.
High light efficiency: the reflectivity of the ordinary gold aluminum PCB is 80%, the reflectivity of the cup hole aluminum PCB is 85%, the reflectivity of the silver plated aluminum PCB is 95%, and the reflectivity of the mirror silver aluminum PCB is 98%. The mirror silver aluminum PCB can make the light of the chip better excited.
