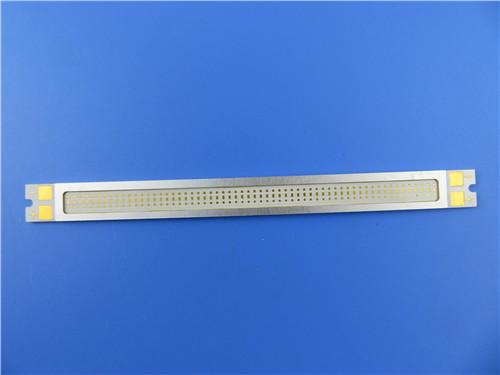

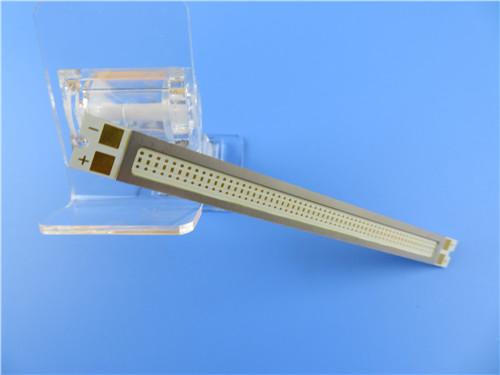

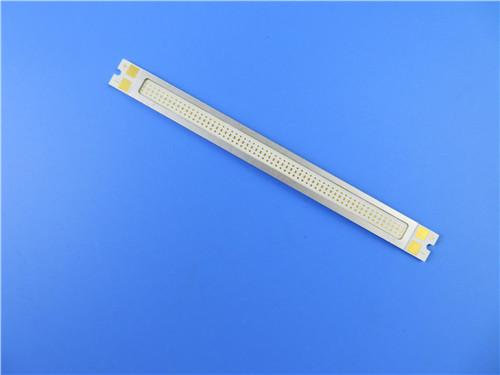

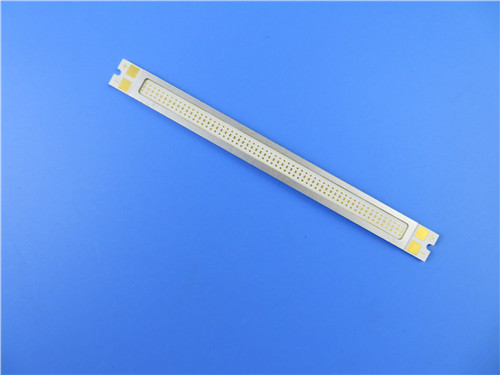

Composite Aluminum PCB Board For Switch Regulator
(PCB’s are custom-made products, the picture and parameters shown are just for reference)

General description
This is a type of aluminum PCB for the application of switch regulator. It's a single layer MCPCB board at 1.6 mm base with 1 W/MK thermal conductivity. The aluminum plate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. 30 boards are packed separately.

Parameter and data sheet

Features and benefits
Effective heat diffusion in the design of the circuit,
Reduce the operating temperature of the equipment,
Improve the power density and reliability of the device,
Products and Manufacturing are certified by authorized organizations.
UL conformed

Applications
Ceiling lamp aluminum PCB
Power supply device
A filter electric circuit
High frequency amplifier

Why choose us?
1) Focus on your core competencies: We’ve deeply known it is full of fierce competition for our customers in the market. You can focus on such important competencies as research and development, sales and marketing based on our professional performance and skilled services that exceeding your expectation.

2) Cutting-edge technology: it is rational for a small and medium-sized customer to hanker after the latest equipment and manufacturing expertise for its PCBs. By the partnerships with Bicheng PCB, you gain access to reach your expectation with our 3 factory bases with over 26,000 square meters.

3) Save the cost of production: Production cost is one of the key points of our customers’ product competitiveness. Bicheng PCB have been striving to reduce its manufacturing cost from equipment introduce, worker training and technology improvement to increase their profitability. Customers are satisfied with our cost savings but without quality loss.
