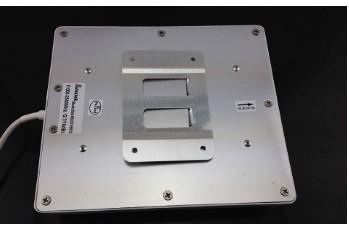

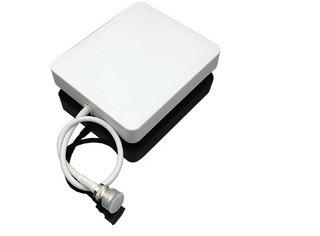

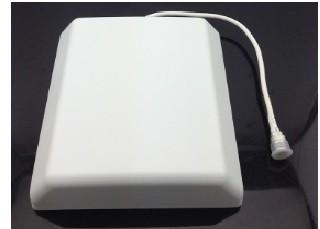

High Performance RF Accessories / Indoor Panel Antenna 1.5V Standing Wave Ratio
High Performance RF Accessories / Indoor Panel Antenna 1.5V Standing Wave Ratio
High Performance RF Accessories / Indoor Panel Antenna 1.5V Standing Wave Ratio
High Performance RF Accessories / Indoor Panel Antenna 1.5V Standing Wave Ratio
High Performance RF Accessories / Indoor Panel Antenna 1.5V Standing Wave Ratio
High Performance RF Accessories / Indoor Panel Antenna 1.5V Standing Wave Ratio
Specifications
Brand Name :
Lenolink
Model Number :
LC698-2700V09iB
Certification :
ISO
Place of Origin :
CHINA
MOQ :
50
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs/ month
Delivery Time :
2-4weeks
Packaging Details :
Packing with bracket 1 PC /box
IBS :
GREY
PIM :
-150dBc
connector :
N-F
VSWR :
1.5
FREQUENCY :
698-2700MHz
IP :
52
size :
190x165x55 (7.48x6.5x2.1)
weight :
0.4 kg
Description

Full band 8 dBi gain indoor pannel antenna with high performance

Item : LC698-2700V09iB

New generation wideband Directional Antenna,coverage 698MHz - 2700MHz
Smaller size,light-weight and easy to install.
Typically used in indoor distribution of LTE services.
Low return loss, High gain, Stable performance.
PIM<-150dBc @ 2x20 W.

N-female/7/16 DIN/ Mini-DIN compliant

Place of Origin

Guangdong, China (Mainland)

Input Impedance(Ω)::50
Max. Power:50W

Packaging Details :Carton

Delivery Time:2-4 weeks after deposit

New innovations

1. Designed for co-siting purposes

2. Enables feeder sharing

3. Suitable for indoor or outdoor applications

4. Integrated auto-sense technology for automatic DC/AISG

5. Wall or mast mounting

6. Built-in lighting protection

7. Available as single unit, or for XPol antennas as a double

Item No. LC698-2700V09iB
Frequency Range MHz 698-960 1710-2700
Gain dBi 6.5 8.0
Polarization Vertical
Beam width Horizontal deg 80 65
Vertical 73 60
Front-To-Back Ratio dB > 12 > 18
VSWR ≤1.8
PIM, 3rd Order, 2 x 20 W, dBc -150
Input Power, maximum watt 50
Impedance ohm 50
Mechanical Specifications
Dimensions, HxWxD mm (in) 165x155x50(6.5x6.1x1.96)
Weight, without Mounting Kit kg (lb) 0.25(0.55)
Radome Material and Color ABS, White, RAL7035
Mounting Kit On-wall
Connector Type and Location N-Female
Operational Temperature oC -55 to +60
Shipping Dimensions, HxWxD mm (in) 190x165x55 (7.48x6.5x2.1)
Shipping Weight kg (lb) 0.4 (0.88)



About Lenolink

Found in 2012, Lenolink has its head office in HK, and factory based in Shenzhen, is specialized in research, design and production of mobile solutions for all types of mobile networks, we provide RF components, cables, RF repeaters, antennas, and the provision of relevant services. The company obtains the goal of becoming a leading force in the field of mobile products R&D, manufacturing and service providers of mobile communication globally.
As we have acquired extensive knowledge and experience in the mobile communication application field, enabling us to provide state-of-the-art wireless communication products backed by professional consulting services to our customers. The company’s philosophy is to continuously provide our customers with the best products and technical supports. We have more than 6000sqm production area with 4 production divisions.


WHY US:

High Quality
Lenolink is owning a strict quality test system to ensure every antenna product must meet our customers’ requirement. Every order will be checked by the professional skilled engineer before shipping out.

Competitive Price
Lenoink, the professional manufacturer, specialize in telecommunication field more than 10 years. Most spare parts are designed and produced by ourselves, so the whole quality process is controlled strictly and the price the most competitive one.

Fast Delivery
2-4 days for samples, 7-10 days for delivery by air , 2-4 weeks by sea or by express.

Quick Reply
Any inquiries will be replied within 24 hours. You can contact us online or by email.

Good after-sale Service
All of our products have two year quality warranty, free maintenance within warranty period. We stand behind our product FULLY and we guarantee that you will be satisfied. We still treat our customers as No.1. We provide complete service before and after the sale! We are here to serve the customers....NOT...the customer's payment. Trust and loyalty is what we aim for.
