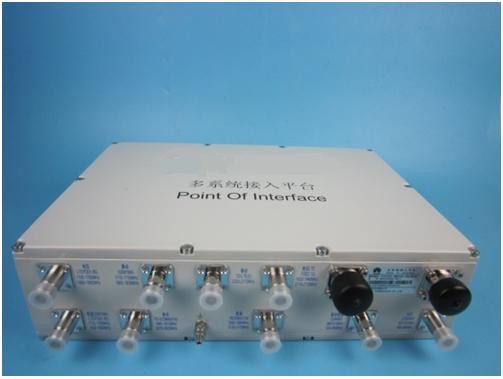

12 Input / 4 Output Point of Interface Multi System Set With Low Insertion Loss
12 Input / 4 Output Point of Interface Multi System Set With Low Insertion Loss
Specifications
Brand Name :
Lenolink
Model Number :
96.00065
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Supply Ability :
5000pcs/month
Delivery Time :
4-8weeks
Certification :
ISO
Packaging Details :
Packing with bracket 1 PC /box
interface number :
9 in 2 out
PIM :
150dBc
input power :
200W
Isolation :
80dB
color :
grey
brand :
Lenolink
Description

12 Input and 4 Output Point of interface multi-system 200W 150dBc

Point of interface (POI) is a platform for multi-system combination. It combines different carrier signals of each system and output them to the common distributed antenna system. At the same time, it distributes the different uplink signals to their each system, realizing multi-band and multi-signal combination and avoiding redundant construction of distributed antenna system. This is a feasible and efficient measure of realizing the coverage by signals from multi-networks.

Design Advantages

• Integrated structure design.

• Lower PIM, lower insertion loss, higher isolation, and higher power handing capacity.
• Mounting hardware for Wall and Pole mount provided.
• Compact design, easy installation.
• Lifetime warranty

Company Profile

Our company established in 2014, which is a new-high-tech enterprise which focus on microwave technology research,RF,microwave component and system industry development.We are located in ShenZhen, covering total 73000m2 and possess 300 advanced microwave detection devices and precision machining equipment. The capacity of production one year here is around USD200 million.


Our products contains 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitter, Directional Coupler, RF Attenuator Dummy Load, Cable Assembly, Connector, Filter, Duplexer and Combiner. Customers' designs (OEM / ODM) are also available.

Type No. 96.00065
Electrical
Path Downlink Uplink
Services and Frequency Bands Service Name Frequency Band (MHz) Frequency Band (MHz)

CDMA800

GSM900

GSM1800

WCDMA

GSM/LTE 1800-TX

LTE1800-TX

LTE2100-TX

TD-LTE(E)-TX

GSM/LTE 1800-RX

LTE1800-RX

LTE2100-RX

TD-LTE(E)-RX

870-880

930-960

1805-1830

2130-2170

1735-1765/1830-1860

1765-1785/1860-1880

1920-1940/2110-2130

2320-2370

1735-1765/1830-1860

1765-1785/1860-1880

1920-1940/2110-2130

2320-2370

825-835

885-915

1710-1735

1940-1980

1735-1765/1830-1860

1765-1785/1860-1880

1920-1940/2110-2130

2320-2370

1735-1765/1830-1860

1765-1785/1860-1880

1920-1940/2110-2130

2320-2370
Insertion Loss (dB) ≤ 6.0
Isolation (dB)

≥ 25 (between same bands)

≥ 50 (GSM1800<E1800)

≥ 80 (between any other input ports)
VSWR ≤ 1.3:1
Impedance 50 Ω
Input Power (c.w./per port) ≤ 200 Watts
Intermodulation Products ≤ -150 dBc (3rd order with 2×20W)
Input Test port -40±2.0 dB
Output Test port (FWD) -44±3.0 dB
Test port (REV) -40±2.0 dB
Environmental 　
Temperature Range -20 to +55°C (Operating)
Application IP65
Mechanical 　
Connectors Input Ports N female (12x)
Output Ports DIN 7/16 female (4x)
Mounting 19” Rack
Packing 1 pc/box
