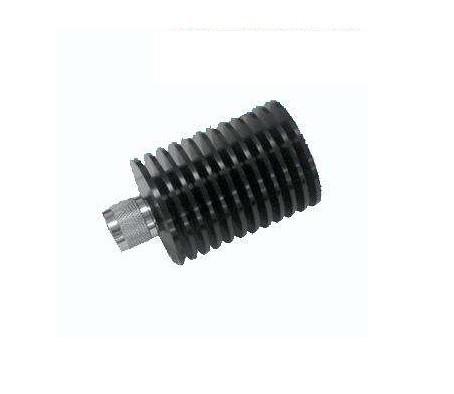

IP65 Protection Rating High Power Load / N Female Connector PIM 100DBC For Outdoor
IP65 Protection Rating High Power Load / N Female Connector PIM 100DBC For Outdoor
Specifications
Brand Name :
LENOLINK
Model Number :
50W RF LOAD with N connector
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000PCS/MONTH
Delivery Time :
2-4WEEKS
Packaging Details :
Packing with bracket 1 PC /box
Certification :
ISO
Power :
50W
Connector :
N Type
PIM :
100dBc
Application :
IP65
VSWR :
1.25
Description

50W high power RF Load with PIM 110dBc N Connector IP65

1. 50w high power RF load , the PIM is 100dBc .With good performance .

2. The VSWR is <1.2

3. IP 65 , outsider , good waterproof.

4. Frequency :0-3000G

Product description

1. Integrated structure design: Filter is milled from one solid piece and has no soldered parts, guaranteeing superior electrical performance.
2. Lower PIM, lower insertion loss, higher isolation, and higher power handing capacity.
3. Differentiated DC/AISG 1.1/2.0 pass allows full compatibility with requiring TMAs.
4. IP67 protection ensures stable performance in any environment.
5. Mounting hardware for Wall and Pole mount provided.
6. Compact design, easy installation.
7. Lifetime warranty.

New Features

1. High directivity / isolation

2. Cavity structure, 250W power handling, high reliability

3. Low insertion loss, low VSWR, low PIM

4. Suitable for indoor or outdoor applications, IP66 waterproof

5. Short lead time and fast delivery

Type No. D18046
Operating Frequency 0~3000MHz
VSWR < 1.2
PIM < -100dBc (@2*43dBm)
Power Handling > 50W
Connector Type N Male
Application Indoor or Outdoor (IP65)
Impedance 50Ω
Operating Temperature -30ºC~+60ºC
Dimension 137mm×Ø50mm
Weight <0.36kg

IP65 Protection Rating High Power Load / N Female Connector PIM 100DBC For Outdoor
