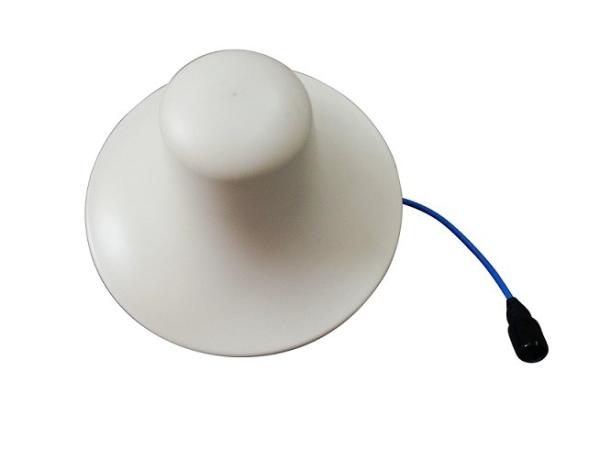

Indoor RF Accessories OMNI Antenna 698- 4000 MHz Gain 4dBi Range With 50 Ohm RF Load
Indoor RF Accessories OMNI Antenna 698- 4000 MHz Gain 4dBi Range With 50 Ohm RF Load
Specifications
Brand Name :
Lenolink
Model Number :
LWO-0740-4
Certification :
ISO
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Supply Ability :
10000pcs/month
Packaging Details :
Packing with bracket 1 PC /box
Application :
Indoor
Frequency :
698-4000MHz
PIM :
140dBc
color :
white
IP :
65
Material :
ABS
Description

Indoor MIMO OMNI Antenna 698-4000MHz PIM 140dBc

Applications

l Indoor coverage system

l Wireless communication system

l Wireless data transmission

l TDD -LTE

Features

l Low VSWR

l Support current main popular communication system

l ABS Radome

l Easy to install

ELECTRICAL SPECIFICATIONS
Frequency (MHz) 698～960 1710～2700 3300～4000
Polarization Vertical
Gain (dBi) 2.0±0.5 3.5±0.5 4.5±0.5
Horizontal Beam Width (°) 360

Vertical Beam Width(°)

(Typical)

 70 35 30
VSWR ≤1.8
Impedence (Ω) 50
Power (W) 50
MECHANICAL SPECIFICATIONS
Connector N Female
Dimension Φ203×115
Weight (kg) 0.4
Material ABS
Color White
Temperature(℃) -40～60
Application Indoor

Company Profile

Our company established in 2014, which is a new-high-tech enterprise which focus on microwave technology research,RF,microwave component and system industry development.We are located in ShenZhen, covering total 73000m2 and possess 300 advanced microwave detection devices and precision machining equipment. The capacity of production one year here is around USD200 million.


Our products contains 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitter, Directional Coupler, RF Attenuator Dummy Load, Cable Assembly, Connector, Filter, Duplexer and Combiner. Customers' designs (OEM / ODM) are also available.
