LTE Digital ICS Mobile Signal Repeater High Power 43dBm Output Power ISO Approval
LTE Digital ICS Mobile Signal Repeater High Power 43dBm Output Power ISO Approval
LTE Digital ICS Mobile Signal Repeater High Power 43dBm Output Power ISO Approval
LTE Digital ICS Mobile Signal Repeater High Power 43dBm Output Power ISO Approval
Specifications
Brand Name :
Lenolink
Model Number :
LIR43-LTE
Certification :
ISO
Place of Origin :
China
MOQ :
5pcs
Price :
Negotiation
Supply Ability :
1000pcs/month
Packaging Details :
Packing with bracket 1 PC /box
output power :
43dBm
gain :
90dB
coverage :
10000sqm
frequency :
2600MHz
Power supply :
AC110~240V DC 5-12V
Key words :
mobile signal booster
Description

High Power LTE digital ICS repeater 43dBm output power high isolation


Description
Lenolink provides a series of products to support different applications and customized your requirement. The output power level is 33dBm to 43dBm.

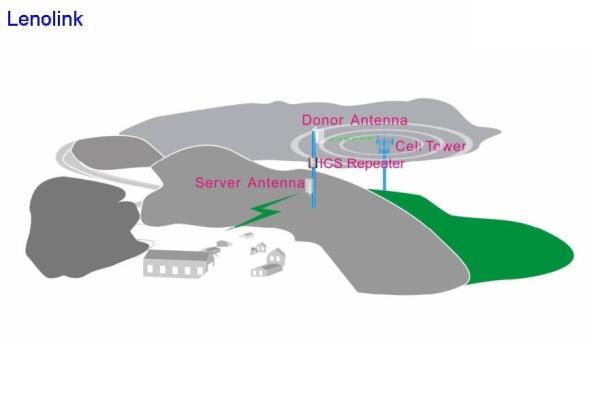

Digital ICS repeater can support any mobile systems to help end users to improve mobile signals for better signal coverage. It is designed to support coverage area from 5000 to 10000 sqm with proper engineering. The single band repeater support one systems in one housing, for example, cdma, gsm, wcmda or lte.

Specification:

Description Uplink Downlink
Frequency Range (MHz) 2500-2570 2620-2690
Nos. of Channel & (Channel BW) 4(5,10,15,20MHz) 4(5,10,15,20MHz)
Max Gain 90 dB
Gain Flatness ≤ ±1.5dB(p-p)
ALC Range ≥15dB
Gain Control Range(MGC) ≥40dB (Gain 50dB - 90dB in 1 dB steps )
Gain Control Accuracy 1~20dB@±1dB
>20dB@±1.5dB
Total RF Input Power (no damage) ≤＋10dBm ≤＋10dBm
Output Power UpLink: ≥20dBm DownLink: ≥43dBm
Output Power Accuracy over all conditions(-10degC to +55degC ) <=+/-3dB
PIM & Spurious (Meet 3GPP TS 25.106) Equal or better than -30dBm
Noise Figure at maximum gain, 25deg C (typical) ≤3.5dB ≤3.5dB
Group Delay ≤ 4.5µsec ≤ 4.5µsec
Interference Cancellation Range (dB) ≥30dB
Return Loss 18dB 18dB
Impedance 50Ω 50Ω
Power Supply Input 110 V - 260 V AC , 50 HZ
Power Consumption (Max) 200W
Cooling Heatsink convection cooling
Operating Temperature -25~+55degC
RF Connector DIN/4.3-10 DIN/4.3-10
Water Proof IP 65
MTBF ≥100,000 hours


Design Advantage

  • Self-adaptive and self-detective isolation
  • Support up to 4 selected channels within WCDMA2100
  • Max 20W/43dBm RF Output Power
  • Interference Cancelling System (ICS)
  • ETSI compliance
  • Remote monitoring and alarm using wireless Modem via SMS
