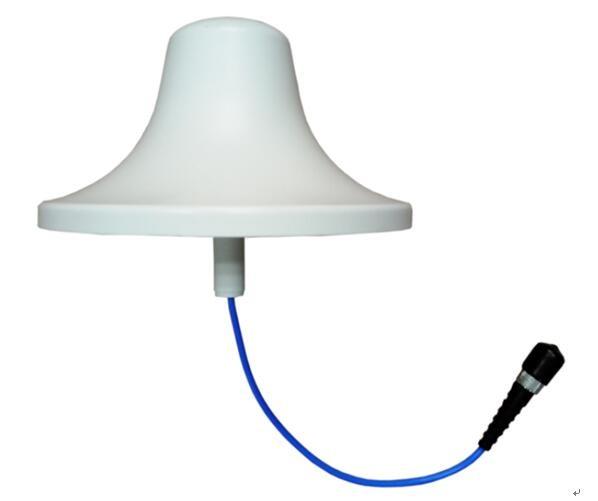

5G Indoor Omni Antenna RF Accessories 698-4000MHZ High Gain / Isolation N Connector
5G Indoor Omni Antenna RF Accessories 698-4000MHZ High Gain / Isolation N Connector
Specifications
Brand Name :
Lenolink
Model Number :
AI698-4000V05i360A
Certification :
ISO
Place of Origin :
CHINA
MOQ :
50
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs/ month
Delivery Time :
2-4weeks
Packaging Details :
Packing with bracket 1 PC /box
IBS :
White
PIM :
-150dBc
connector :
N-F
VSWR :
2.0
FREQUENCY :
698-4000MHz
IP :
67
Description

5G Indoor Omni Antenna 698-4000MHZ High Gain and Isolation N Connector

Product description:

1. Wide band Directional Antenna , coverage 698MHz - 4000MHz .

2. Typically used in indoor distribution of LTE and MIMO services.

3. Low return loss, High gain, Stable performance.

4. Compact, light-weight and easy to install.

5. PIM<-150dBc @ 2x20 W.

6. N-female/7/16 DIN/ Mini-DIN compliant.

Design Advantage:

Wideband omni antenna coverage 698-4000MHz.

Typically used in indoor and outdoor distribution of LTE AND mimo service

Low return loss , good radiation pattern , stable performance .

Compact , light-weight and easy to install

PIM<-150dBc@2*20w

Electrical Specifications:

Electrical Specifications
Item No. AI698-4000V05i360A
Frequency Range MHz 698-806 806-960 1710-2700 3400-4000
Gain dBi 1.8±0.5 2.0±0.5 3.0±1.0 4.5±1.0
Polarization Vertical
Beam width Horizontal deg 360
Vertical 90 70 35 30
VSWR ≤1.8 ≤1.5 ≤1.5 ≤1.8
PIM, 3rd Order, 2 x 20 W, dBc ≤-153
Input Power, maximum watts 50
Impedance ohm 50
Mechanical Specification
Connector Type N-female
Mounting Kit Ceiling, via hole (standard)
Radome Material and Color ABS, White, RAL9003
Operational Temperature oC -40～55
Operational Humidity % < 95
Radiation Pattern

Company Profile:

Lenolink is a company engaged in research, design and production of mobile solutions for all types of mobile networks. The products we offer include cables, RF repeaters, antennas, RF components, and the provision of relevant services.

With years of effort, Lenolink has established business relationship with customers from more than 20 countires, and still growing very fast. Lenolink is looking forward to cooperate with you and becomes your partner in telecom industry
