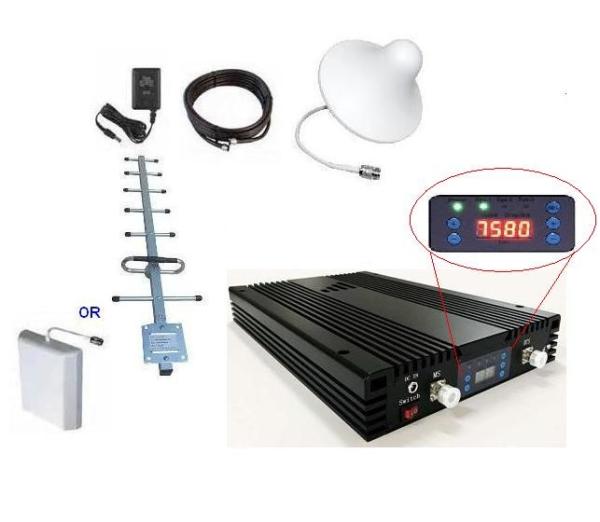

Quad Band Mobile Signal Repeater 1000sqm Coverage CDMA GSM AWS LTE ISO Approval
Quad Band Mobile Signal Repeater 1000sqm Coverage CDMA GSM AWS LTE ISO Approval
Specifications
Brand Name :
Lenolink
Model Number :
LSP20-QB
Certification :
ISO
Place of Origin :
China
MOQ :
5pcs
Price :
Negotiation
Supply Ability :
1000pcs/month
Packaging Details :
Packing with bracket 1 PC /box
output power :
20dBm
gain :
70dB
coverage :
1000sqm
frequency :
CDMA, AWS, PCS, LTE
Product name :
4G Signal Booster
Power supply :
AC110~240V DC 5-12V
Description

CDMA AWS PCS LTE Quad Band Mobile Signal Repeater 20 dBm Coverage 2000sqm 70dB Gain


Description:
Consumer booster is to support any mobile systems to help end users to improve mobile signals for better signal coverage. It is designed to support coverage area up to 100~5000 square meters with proper engineering.

Lenolink provides a series of products to support different application and customize your requirement. And the products can support single, dual and triple systems with one housing.

The power level varies from 10dBm to 27dBm which can satisfy the coverage area from 100 to 5000 sqm. Lenolink boosters are widely used in parking lots, hotel, VIP room, basement and private house.

Specification:

Electrical specification Uplink Downlink
Frequency Range CDMA800 824 ~ 849 MHz 869 ~ 894 MHz
CDMA1900 1850 ~ 1910 MHz 1930 ~ 1990 MHz
GSM900 880 ~ 915 MHz 925 ~ 960 MHz
DCS 1710 ~ 1785 MHz 1805 ~ 1880 MHz
PCS 1850 ~ 1910 MHz 1930 ~ 1990 MHz
WCDMA 1920 ~ 1980 MHz 2110 ~ 2170 MHz
AWS 1710 ~ 1755 MHz 2110 ~ 2155 MHz
LTE 2500 ~ 2570 MHz 2620 ~ 2690 MHz
Max .Gain ≥ 55dB ≥ 60dB
≥ 65dB ≥ 65dB
≥ 65dB ≥ 70dB
≥ 70dB ≥ 75dB
Max .Output Power ≥ 10dBm ≥ 10dBm
≥ 12dBm ≥ 15dBm
≥ 15dBm ≥ 20dBm
≥ 15dBm ≥ 23dBm
Band width (-3dB) Wide Band
MGC ≥ 31dB / 1dB step
ALC ≥ 15dB, auto shut off after 15dB
Gain Flatness GSM&CDMA Tpy≦ 6dB(P- P); DCS,PCS≦ 8dB(P-P)
WCDMA ≦ 2dB/ 3. 84MHz,Ful l Band≦ 5dB(P-P)
Noise Figure ≤8dB
VSWR ≤2.5
Group Delay ≤0.5μs
Frequency Stability ≦ 0.01ppm
Spurious Emission &
Output inter-modulation		 GSM Meet ETSI TS 151 026
WCDMA Meet 3GPP TS 25.143
CDMA Meet IS95 & CDMA2000
WCDMA System Spurious Emission Mask Meet 3GPP TS 25. 143
Modulation Accuracy ≦ 12.5%
PCDE ≦ -35dB@Spreading Factor 256
CDMA System Rho ρ> 0.980
ACPR Meet I S95 & CDMA2000
LED Alarm Standard
Mechanical Specifications Standard
I /O Port N-Female
Impedance 50 ohm
Operating Temperature -25ºC~+55ºC
Environment Conditions IP40
Power Supply Input AC90~264V

Quad Band Mobile Signal Repeater 1000sqm Coverage CDMA GSM AWS LTE ISO Approval


Design Advantage
1. Support wide band to cover all operators.
2. Manual gain control (MGC) available for both uplink and down link to adjust the gain value for proper coverage during installation or maintenance.
3. To maintain safe and specific output signal levels and give alarms on self-oscillation, the repeater has built-in AGC and ALC circuits, which can automatically control the gain of the repeater depending upon the strength of input signals.
4. Auto shut off design available for both uplink and downlink to avoid serious interference to network effectively when the repeater is in deep self-oscillation or very strong input power.
5. Very low power consumption.
6. Support five band in one housing.
